LSV Replenisher 40000

The Damen Naval Fleet Support series is available in a wide range of sizes and capabilities, especially designed to provide worldwide naval support, and is flexible in many secondary tasks. The Damen Naval Support series is a cost effective, flexible and highly capable addition to any fleet. Hull shape gives the vessel ability to reach the required speeds but with minimum use of power. Hybrid propulsion system provides for fuel efficiency and redundancy. Highly efficient medium speed diesel engines yield low fuel consumption and low maintenance costs. Compact arrangement provides for efficient crewing & day-to-day operations.

DIMENSIONS
Length o.a. 209.4 m
Length p.p. 189.0 m
Beam 30.4 m
Draught(max) 10.0 m
Depth 17.5 m
Displacement 41000 tonnes
PERFORMANCE
Maximum Sustained speed 20 knots
Range at 16 knots 12000 nm
Endurance 60 days
PROPULSION SYSTEM
Propulsion system Diesel-Hybrid (Diesel direct + PTI/PTO)
Propulsion engines Diesel engines + Electrical motor
Propulsion power 24.000 kW
Propellers 2 x CPP
Bow thrusters 1 x 2000 kW
AUXILIARY SYSTEMS
Diesel generator 4 x 1400-1600 kW
Emergency diesel generator 1 x 750 kW
COMPLEMENT
Crew 190 of which 24 officers
TRANSPORT CAPACITY
Flight deck 1 x medium size helicopter
Hangar 2 x medium size helicopter
Flight deck 780 m2
F76 (Cargo) 20000 tonnes
F44(Cargo) 2500 tonnes
FW 1000 tonnes
Feed Water 1400 tonnes
Supply stores
Ammunition
EQUIPMENT
  • 4 Dual Purpose Underway Replenishment Masts
  • Astern refueling Hose Reel
  • Deck Crane 25 tonnes
  • Ammunition elevator
  • Stores Elevator
  • Personel Elevator
  • RO units
    • WEAPON & SENSOR SUITE
  • 2 x Remote controlled 30 mm guns
  • 2 x Remote controlled .50 machine guns
  • Integrated Bridge System, for safe sailing and optimal control of navigational equipment.
  • Helicopter Control facilities, to safely execute helicopter control and approach procedures.
  • Integrated Internal Communication System, allowing voice and data communication.
  • Ergonomically lay-out of operational spaces (Bridge, Operations Room).
  • Military external comms
  • ESM system
  • 4 x decoy launching system

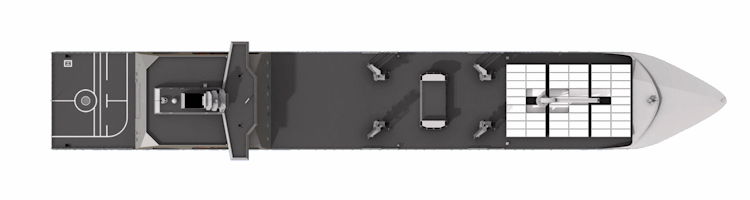

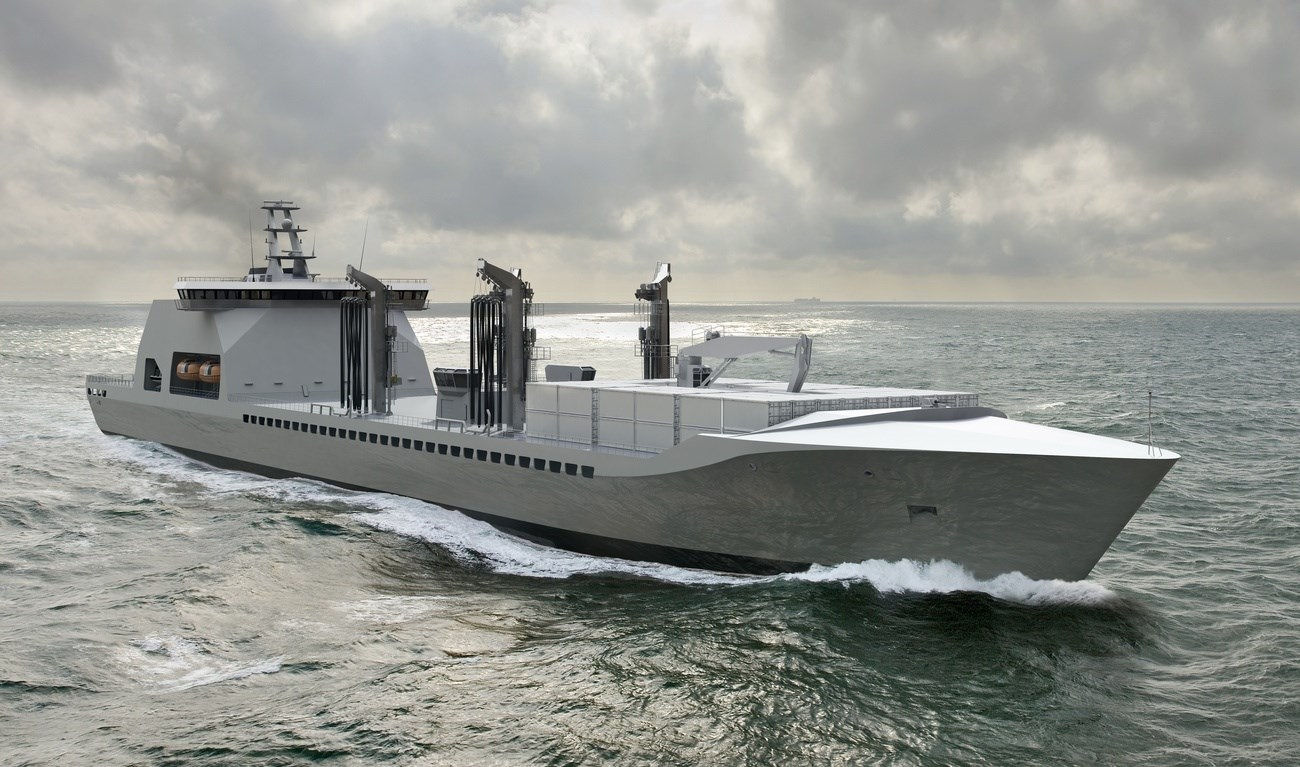

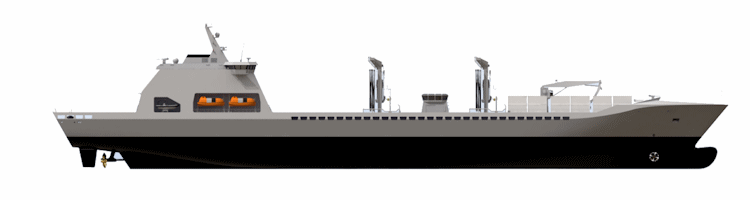

    • Replenisher LSV 40000 Replenisher LSV 40000 Replenisher LSV 40000
