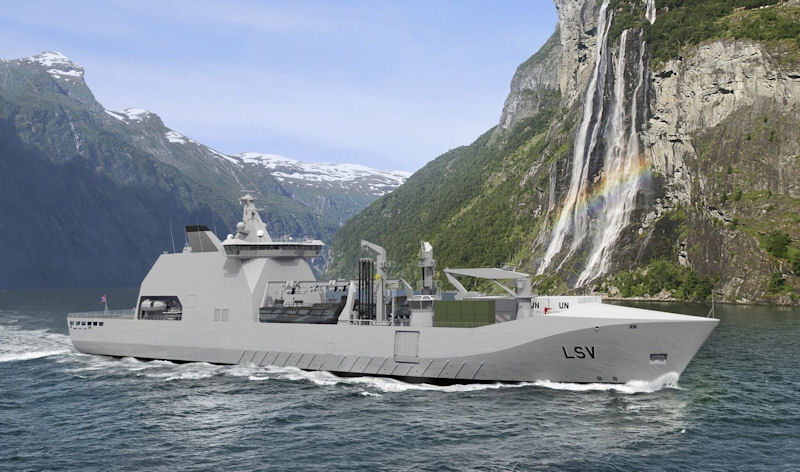

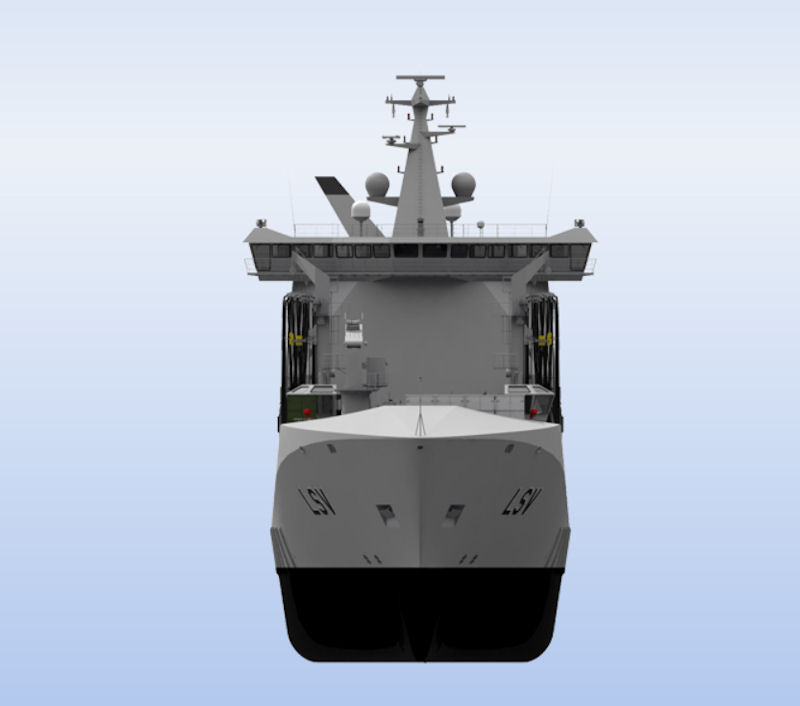

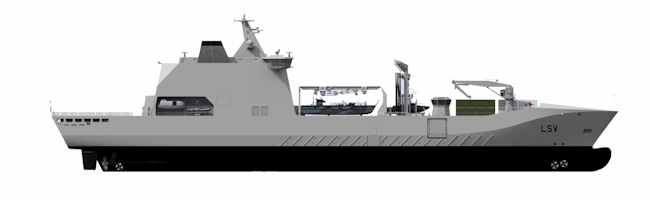

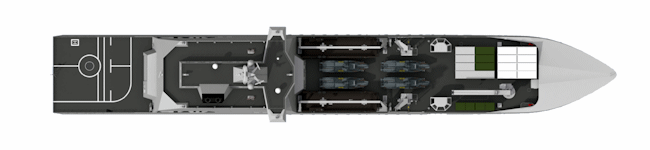

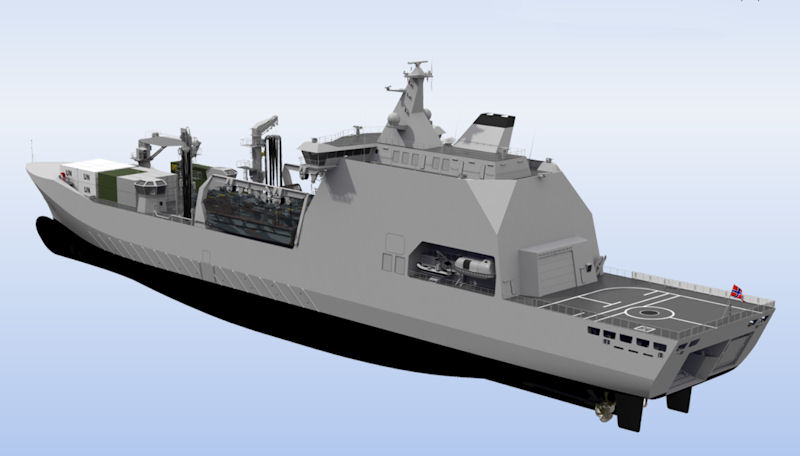

LSV Suppporter 19000
The Damen Naval Fleet Support series is available in a wide range of sizes and capabilities, especially designed to provide worldwide naval support, and is flexible in many secondary tasks. The Damen Naval Support series is a cost effective, flexible and highly capable addition to any fleet. Hull shape gives the vessel ability to reach the required speeds but with minimum use of power. Hybrid propulsion system provides for fuel efficiency and redundancy. Highly efficient medium speed diesel engines yield low fuel consumption and low maintenance costs. Compact arrangement provides for efficient crewing & day-to-day operations.
| DIMENSIONS | |
| Length o.a. | 175.20 m |
| Beam mld. | 24.80 m |
| Depth no.1 deck | 17.20 m |
| Draught | 7.80 m |
| Displacement full load | 18.800 tonnes |
| PERFORMANCE | |
| Speed | 20 knots sustained |
| Range at 16 knots | 10.000 nm |
| Endurance | 30+ days at sea |
| PROPULSION SYSTEM | |
| Propulsion system | Diesel-Hybrid (Diesel direct + PTI/PTO) |
| Propulsion engines | Diesel engines + Electrical motor |
| Propulsion power | 18.000 kW |
| Propellers | 2 x CPP |
| Bow thrusters | 2 x 1000 kW |
| Stern thruster | 1 x 1000 kW |
| AUXILIARY SYSTEMS | |
| Diesel generator | 4 x 1600 kW |
| Emergency diesel generator | 1 x 750 kW |
| COMPLEMENT | |
| Crew | 86 |
| Enlisted/conscripts | 76 |
| Injured (hospital) | 44 |
| MEDICAL FACILITIES | The medical complex consists of: triage room, trauma room, operating room, intensive care, high and low dependency ward, dentist, consulting room etc. |
| TRANSPORT CAPACITY | |
| Flight deck | 1 x spots medium size helicopter, Suitable for heavy helicopter landing |
| Hangar | 2 x medium size helicopter |
| Ship-to-Shore transfer | Sea state 3-4 |
| Davits | 2 x LCM in davit (option) |
| Flight deck | 675 m² |
| RoRo space | 500 lane meters |
| Container cap. | 40 TEU |
| F76 (Cargo) | 4500 t |
| F44 (Cargo) | 425 t |
| Ship Stores | 330 m2 |
| Cargo Stores 520 m² | |
| Ammo Stores | 260 m2 |
| EQUIPMENT | 2 x Modular Unrep Mast for Replenishment at Sea |
| Stern ramp | 35 t |
| Side ramp | 35 t |
| Cargo/Ammo elevator | 25 t |
| Deck crane | 25 t |
| RO unit(s) | |
| WEAPON & SENSOR SUITE |
|
| NAUTICAL EQUIPMENT | Extensive navigational equipment, GMDSS, echo sounder, powerand ship’s management system with integrated ECDIS. |
|
