LSV Replenisher 16000

The Damen Naval Fleet Support series is available in a wide range of sizes and capabilities, especially designed to provide worldwide naval support, and is flexible in many secondary tasks. The Damen Naval Support series is a cost effective, flexible and highly capable addition to any fleet. Hull shape gives the vessel ability to reach the required speeds but with minimum use of power. Hybrid propulsion system provides for fuel efficiency and redundancy. Highly efficient medium speed diesel engines yield low fuel consumption and low maintenance costs. Compact arrangement provides for efficient crewing & day-to-day operations.

DIMENSIONS
Length o.a. 165.50 m
Beam mld. 24.00 m
Depth no.1 deck 14.70 m
Draught 7.3 m
Displacement full load 15.800 tonnes
PERFORMANCE
Speed 18 knots sustained
Range at 16 knots 10.000 nm
Endurance 30+ days at sea
PROPULSION SYSTEM
Propulsion system Diesel-Hybrid (Diesel direct + PTI/PTO)
Propulsion engines Diesel engines + Electrical motor Propulsion
power 11.000 kW
Propellers 2 x CPP
Bow thrusters 1 x 1100 kW
Stern thruster 1 x 750 kW
AUXILIARY SYSTEMS
Diesel generator 4 x 1600 kW
Emergency diesel generator 1 x 750 kW
COMPLEMENT
Crew 43
Embarked forces/Special Personnel 116
Injured (hospital) 48
MEDICAL FACILITIESThe medical complex consists of: CT-room, triage room, trauma room, operating room, intensive care, high- and low dependency ward (not permanent), consulting room etc.
TRANSPORT CAPACITY
Flight deck 1 x spots medium size helicopter, Suitable for heavy helicopter landing
Hangar 2 x medium size helicopter
Flight deck 675 m²
Cargo deck 135 lane meters
F76 (Cargo) 5100 t
F44 (Cargo) 425 t
Cargo Stores 360 m²
Ammo Stores 300 m2
EQUIPMENT2 x Modular Unrep Mast for Replenishment at Sea
Cargo/Ammo elevator 25 t
Deck crane 22 t
RO unit(s) Side hatch
WEAPON & SENSOR SUITE
  • 4 x Remote controlled .50 machine guns (Prepared for)
  • Integrated Bridge System, for safe sailing and optimal control of navigational equipment.
  • Helicopter Control facilities, to safely execute helicopter control and approach procedures.
  • Integrated Internal and External Communication System, allowingvoice and data communication.
  • Ergonomically lay-out of operational spaces (Bridge, Operations Room).

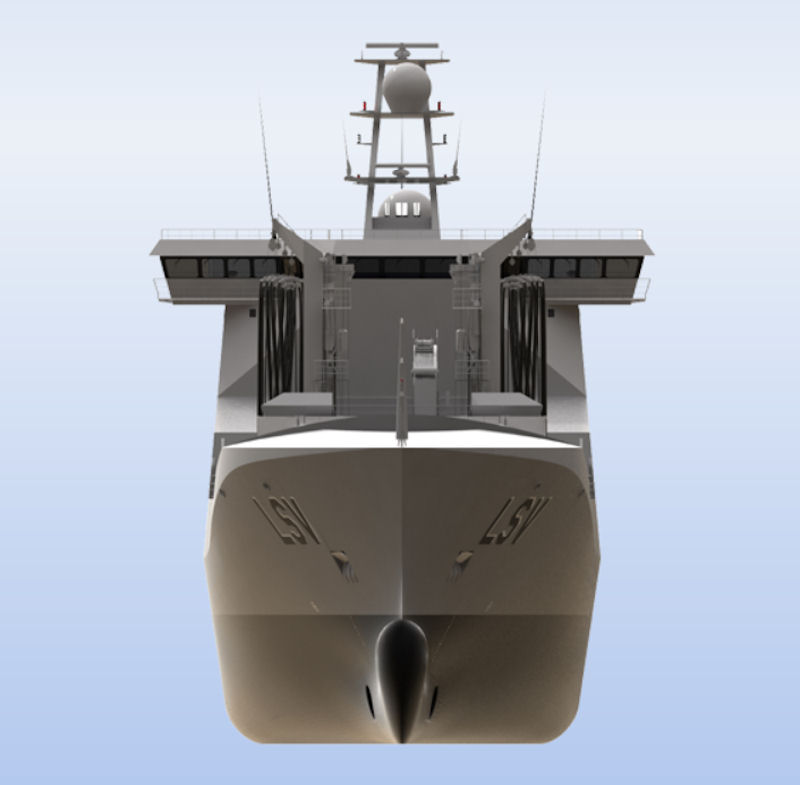

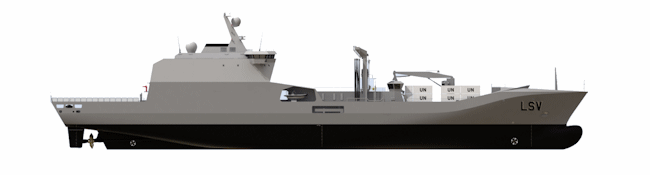

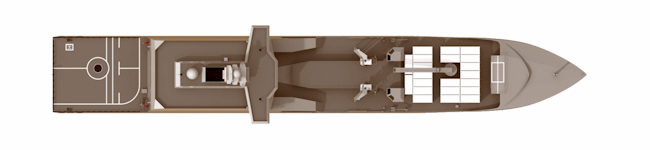

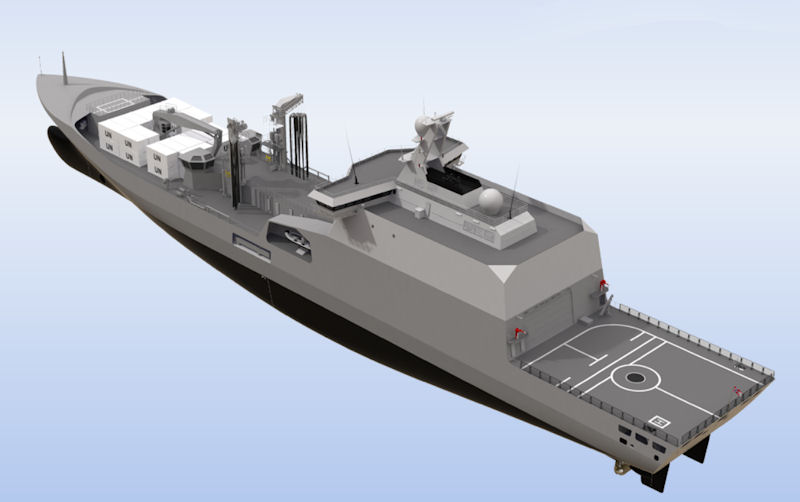

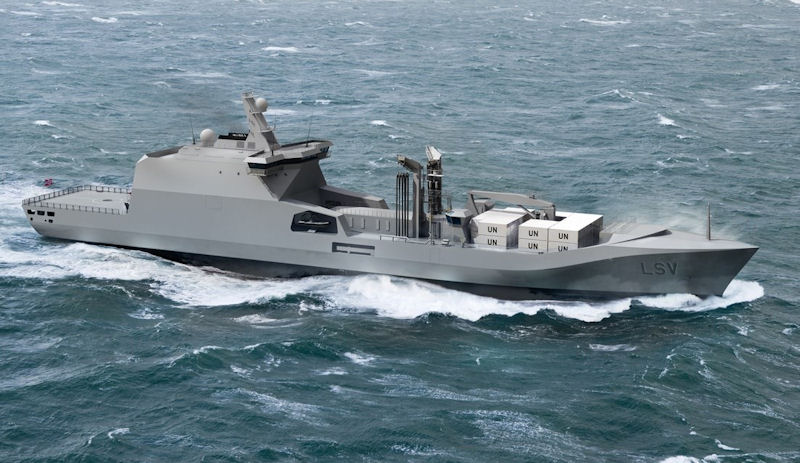

    • Replenisher LSV 16000 Replenisher LSV 16000 Replenisher LSV 16000

    Replenisher LSV 16000 Replenisher LSV 16000
