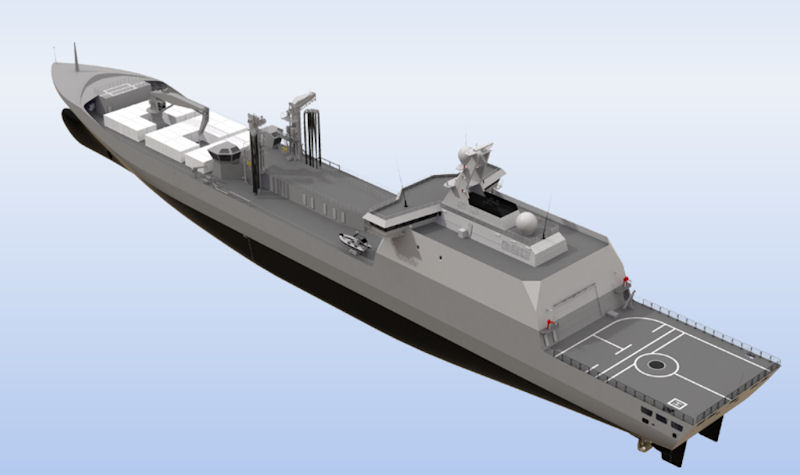

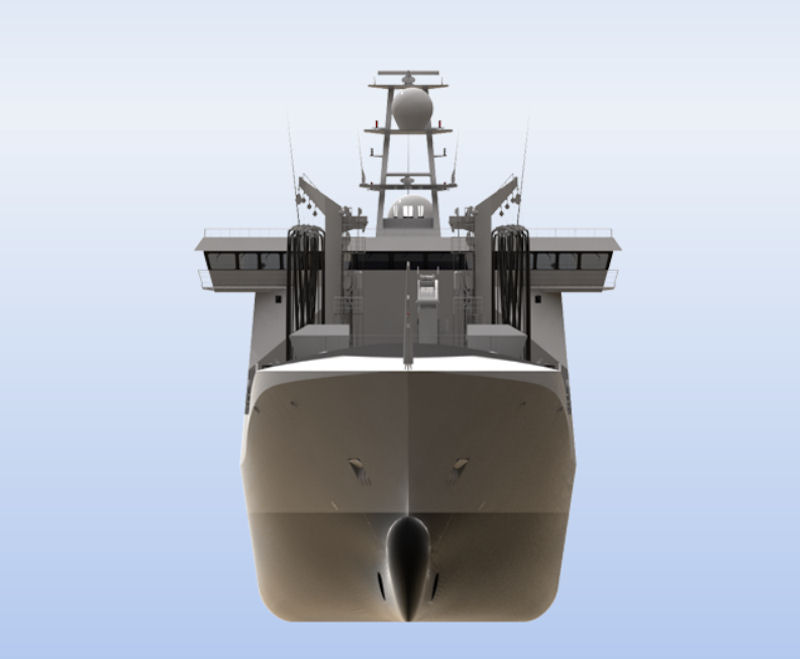

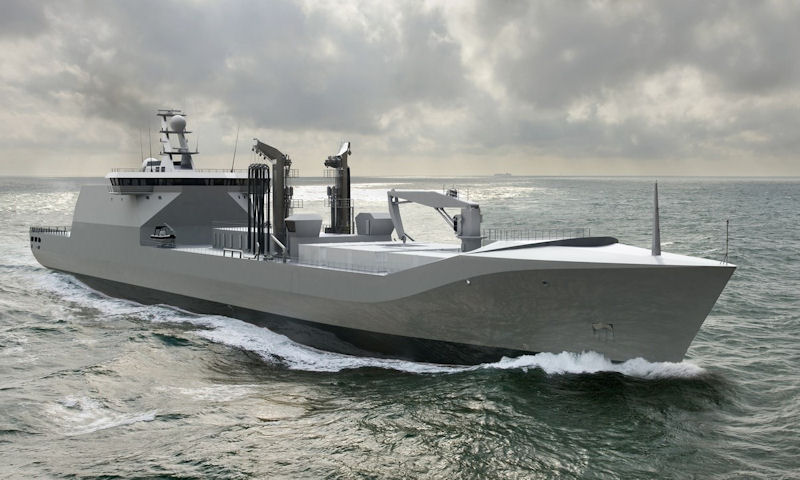

LSV Replenisher 20000
The Damen Naval Fleet Support series is available in a wide range of sizes and capabilities, especially designed to provide worldwide naval support, and is flexible in many secondary tasks. The Damen Naval Support series is a cost effective, flexible and highly capable addition to any fleet. Hull shape gives the vessel ability to reach the required speeds but with minimum use of power. Hybrid propulsion system provides for fuel efficiency and redundancy. Highly efficient medium speed diesel engines yield low fuel consumption and low maintenance costs. Compact arrangement provides for efficient crewing & day-to-day operations.
| DIMENSIONS | |
| Length o.a. | 187.4 m |
| Length p.p. | 173.0 m |
| Beam | 25.0 m |
| Draught(max) | 7.60 m |
| Depth | 14.70 m |
| Displacement | 20300 tonnes |
| PERFORMANCE | |
| Maximum Sustained speed | 18 knots |
| Range at 16 knots | 6000nm |
| Endurance | 20 days |
| PROPULSION SYSTEM | |
| Propulsion system | Diesel-Hybrid (Diesel direct + PTI/PTO) |
| Propulsion engines | Diesel engines + Electrical motor |
| Propulsion power | 14.000 kW |
| Propellers | 2 x CPP |
| Bow thrusters | 1 x 1100 kW |
| Stern thruster | 1 x 750 kW |
| AUXILIARY SYSTEMS | |
| Diesel generator | 4 x 1200 kW |
| Emergency diesel generator | 1 x 750 kW |
| COMPLEMENT | |
| Crew | 70 |
| Nonlisted | 50 |
| MEDICAL FACILITIES | Role 1 Medical facilities; Consulting Room, Ward and storage rooms. |
| TRANSPORT CAPACITY | |
| Flight deck | 1 spots medium size helicopter |
| Hangar | 2 x medium size helicopter |
| Flight deck | 675 m2 |
| F76 (Cargo) | 8000 tonnes |
| F44(Cargo) | 1700 tonnes |
| Supply stores | |
| Ammunition | |
| EQUIPMENT | 2 Dual Purpose Underway Replenishment Masts |
| Refueling Hose Reel | 30 metres 2.5” dia |
| Deck Crane | 25 tonnes |
| Ammunition elevator | |
| Stores Elevator | |
| Personel Elevator | |
| RO units | |
| WEAPON & SENSOR SUITE |
|
|
