The ship of the measuring complex (KIK - korablya izmeritelnogo kompleksa) is a series of special ships of the Soviet Navy , designed to control the flight parameters of missiles at different sections of the trajectory, as a continuation of ground-based research and measurement points and to ensure ICBM tests at maximum range. Also, ships of this category are equipped with equipment to provide splashdown and recovery of spacecraft descent vehicles.

In the 1990s, after the collapse of the USSR, seven of the eight ships of the measuring complex were sold abroad or cut into metal. Only Marshal Krylov remained in service. Experts agree that such ships are extremely necessary for the Russian fleet. There are many tests of new missile technology, including hypersonic weapons and the promising Sarmat intercontinental system. The Americans also do not intend to stop developing missile weapons. So the new ships of the measuring complex are very useful.

Some authors assigned the Ship Measuring Complex (KIK) to the class of reconnaissance. Others report this is not true. According to the Soviet classification, they were called Expeditionary Oceanographic Vessels (EOS). To maintain the usual secrecy this unit got a name of Pacific Hydrographic Expedition (Russian - TOGE) to be confused with scientific fleet. TOGE ships were pure military vessels belonged to the Navy.

Initially, there were 8 vessels in the 4th Pacific expedition of ships of the measuring complex. However, in 1991-1993, due to aging, the Sibir, Sakhalin and Chukotka ships were decommissioned, and in 1994 - Spassk, Chazhma, Chumikan, Marshal Nedelin. Since then, "Marshal Krylov" alone.

There was another grouping of ships, which was close to the Space Research Service of the marine expeditionary department of the USSR Academy of Sciences, based in Odessa and St. Petersburg. The beginning of the work of these ships is 1960. They formed the so-called Marine Space Fleet. Nevertheless, do not confuse the ships of the measuring complex, which are used to test ballistic missiles, and telemetry control ships operating on spacecraft. In some tasks, for example, controlling the flight parameters of spacecraft, they can duplicate each other, but the individual tasks of the ships of the measuring complex were unique.

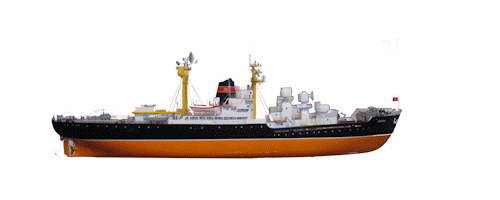

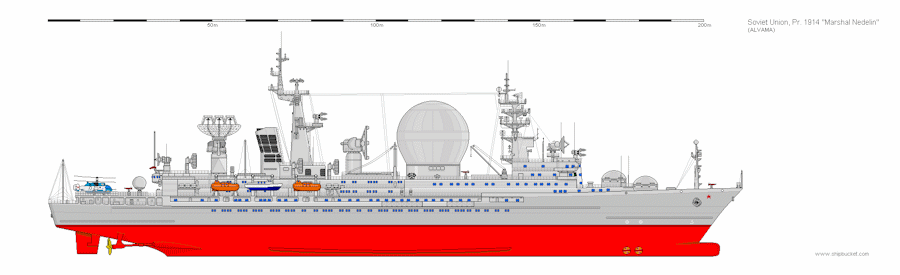

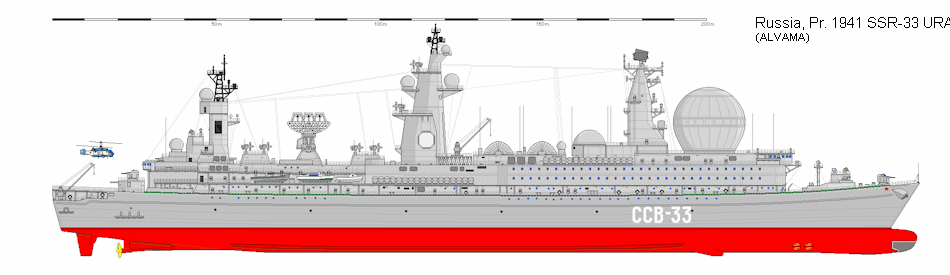

Name"Spassk" "Chazhma" "Marshal Nedelin" "Ural"
Project112811301914 1941
ship class KIK KIK KIK ???
project number 1128 (1129B) 1130 1914 1941
Year of delivery lead Maud. 1959 Maud. 1963 1983 1986
Number of vessels 3 (1) 2 2 1
shipbuilding ELEMENTS
Displacement, t
- standard 3850 7980 18360 31600
- complete 6150 12740 25300 35200
Dimensions, m
- Max length / waterline 108.3 m /
.
139.5 m /
.
211.2 m /
.
265 m /
.
- Max width / KVL 14.6 /. 18/. 27.7 /. thirty/.
- Depth at full load 5.85 7.52 8.3 7.5
Full speed, knots eleven 14.5 22 21.5
Cruising range, miles [speed, kt] 10000 (10) 18900 (.) 15000 (12) unlimited.
Type GEMs PM control control ETA
Full power. stroke hp 2500 5400 32000 46000
Audio Output shaft 1 1 2 2
Autonomy, days 90 120 120 180
WEAPONS
missile - air defense - - (MANPADS "Igla") MANPADS "Igla" 4x4 PU
Artillery - -
  • 6x6 30-mm AK-630
  • 2x1 176-mm
  • AK-176
  • 4x6 30-mm
  • AK-630M
  • 4x2 12.7-mm
  • "Utes-M"
  • Radio telemetry equipment
    and special radar station
  • "Tral"
  • SC-2 "Kama-M"
  • "Tral"
  • SC
  • RTS-9K
  • "Arbat"
  • "Sail-B"
  • "Temp-3"
  • "Vympel"
  • "Zephyr A"
  • "Zephyr T"
  • "Woodpecker-2"
  • "Weasel-2"
  • "Zodiac" -
  • general purpose radar
  • "Cactus"
  • and others.
  • "Angara"
  • and others.
  • "Topae-In"
  • "Vaigach-U"
  • "Volga"
  • "Fregat-MA"
  • "Vaigach-U"
  • PP and RTR - "Mizzen" and others. - -
    CEO and GAR SMI-ZD GSU-200 "Hercules-2M" SMI-ZD "Platinum-C" "Oh" "Platinum-MS"
    KRS Toolkit Toolkit
  • "Typhoon-2"
  • "Storm"
  • "Typhoon-2C"
  • "Crystal-BK"
  • Aviation
    - Means vzl 1 runway1 runway 1 runway 1 runway
    - Count. and the type of LAC 1 Ka-25 1 Ka-25 2 Ka-27 1 Ka-27
    crew, all people (officers) 200 (). 320 (). 417 (106) 923 (233)
