| Designation | "Kornet-EM" / "Kornet-D"
|
| Source | KPB Instrument Design Bureau
|
| Status | 2011 Aug 07 - according to media reports, field tests of the Konkurs-D ATGM were carried out.
|
| ammunition of the complex | 8 combat-ready ATGMs, a total of 16 ATGMs
|
| Transfer time from traveling to combat position | 7 seconds
|
| Payload of the combat vehicle |
800 kg (1 launcher)
1200 kg (2 launchers)
|
| Automatic retractable launcher for 4 missiles |
|
| Module weight | 67.5 kg
|
| Pointing angles |
horizontally - + - 180 degrees.
vertically - from -5 to +30 degrees
|
| Angular pointing velocity |
up to 20 degrees / s 20 degrees
|
| Field of View | wide-field thermal imaging channel - 5.9 x 7.3 degrees
narrow-field thermal imaging channel - 1.9 x 2.4 degrees
|
| Range of measured targets | 200-15000 m RMS tracking error at 10 km - 0.3 m
|
| Modifications |
Kornet-D complex is the result of a deep modernization of the Kornet ATGM.
Kornet-EM complex is an export version of the Kornet-M ATGM.
|
| Missiles | 9M133FM-3 | 9M133FM / 9M133M-2
|
| Engine | Solid propellant rocket engine with increased thrust, placed after the warhead | Solid propellant rocket engine, placed in front of the warhead
|
| TPK length | 1211 mm | 1211 mm
|
| Weight with TPK | 33 kg | 31 kg
|
| Range | 150-10000 m | 150-8000 m
|
| armor penetration | | 1100-1300 mm (cumulative warhead)
|
| Flight speed maximum | 320 m/s | 300 m/s
|
| Warhead types | high explosive | thermobaric / cumulative
|
| TNT warhead equivalent | 7 kg | 10 kg (thermobaric)
|
| Explosives | contact / non-contact | contact-non-contact / contact
|

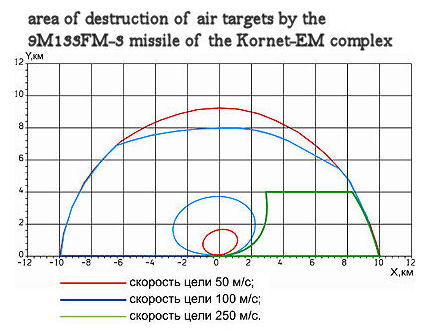

| radius of destruction of air target | at least 3 m |
|
| radius of destruction of air target |
|
