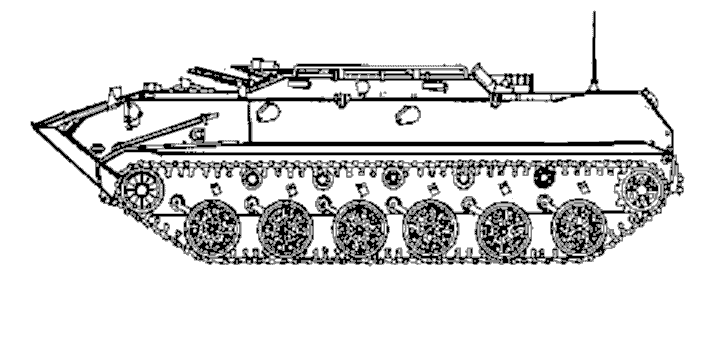

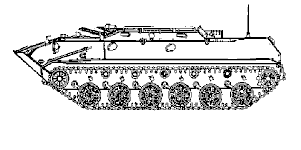

BTR-D BMD M1979

Specifications
Alternative Designations BMD M1979
Date of Introduction 1974
Proliferation At least 1 country
Description
Crew 1
Troop Capacity 12 passengers
Combat Weight (mt) 6.7
Chassis Length Overall (m) 5.88
Height Overall (m) 1.67
Width Overall (m) 2.63
Ground Pressure (kg/cm 2 ) 0.5
Automotive Performance
Engine Type 240-hp Diesel
Cruising Range (km) 500
Speed (km/h)
Max Road 61
Max Off-Road 35
Average Cross-Country INA
Max Swim 10
Fording Depth (m) Amphibious
Radio R-123
Protection
Armor, Turret Front (mm) "Antibullet" (7.62-mm)
Applique Armor (mm) N/A
Explosive Reactive Armor (mm) N/A
Mineclearing Equipment N/A
Self-Entrenching Blade N/A
Active Protective System No
NBC Protection System Yes
Smoke Equipment 2x2 forward firing smoke grenade launchers Vehicle engine exhaust smoke system (VEESS)
ARMAMENT
Main Armament
Caliber, Type, Name 7.62-mm (7.62 x 54R) machinegun, PKT
Rate of Fire (rd/min) 250 practical / 650 cyclic, in 2-10 round bursts
Loader Type Belt-fed
Ready/Stowed Rounds INA
Elevation () INA
Fire on Move Yes
Auxiliary Weapon N/A
ATGM Launcher N/A
Firing Ports 2 on each side, 1 in left rear door, permit two 5.45-mm RPK-74 light machineguns to be used.
FIRE CONTROL
FCS Name N/A
Main Gun Stabilization N/A
Rangefinder N/A
Infrared Searchlight N/A
Sights w/Magnification Open, 1x
Commander Fire Main Gun No
MAIN ARMAMENT AMMUNITION
Caliber, Type, Name 7.62-mm API
Maximum Aimed Range (m) 1,500
Max Effective Range (m)
Day 1,000 m / 400-500 on the move
Night INA
Tactical AA Range INA
Armor Penetration (mm) 8 (RHA) at 500 m
Other Ammunition Types 7.62-mm Light Ball, Ball-T, Heavy Ball, API, API-T, Incendiary
