Armored Cars - Inter-War Examples

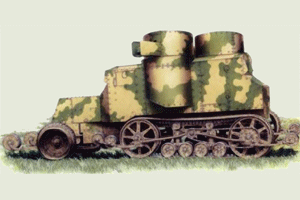

Austin-Kegress
Austin-Kegress		 1919 Combat weight, tons - 5.8. Crew, pers. - 5. Case length, mm - 4900. Case width, mm - 1800. Height, mm - 2460. Base, mm - 4262. Ground clearance, mm - 250. Armors - 8 mm. Armament. Machine guns - 2 x 7.62-mm Maxim arr. 1910, 4000 rounds of ammunition. Mobility. Engine type - " Austin ", petrol, 4-cylinder, carburetor, in-line, liquid cooling. Engine power, l. with. - 50. Speed on the highway, km / h - 25. Power reserve on the highway, km - 100. Production - 12 pcs.

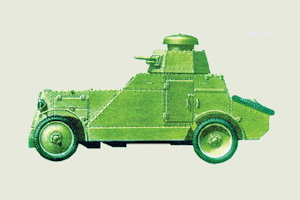

BA-27
BA-27		 1927 Combat weight - 4.4 tons, crew - 3-4 people, Armament - 1 x 37mm cannon, 1 x 7.62 mm DT machine gun , Armor thickness - 4-7 mm, Power reserve - 270-300 km, Maximum speed –40 km / h, Overall dimensions –4617 x 1710 x 2520 mm, Base - 3070 mm, Engine - gasoline, four-cylinder, Power –35 l. with. at 1,400 rpm

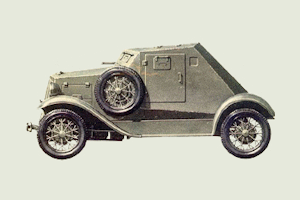

D-8
D-8		 1930 Combat weight - 1.58 tons, Crew - 2 people, Armament - two 7.62 mm DT machine guns of the sample of 1929, Armors - board and forehead - 7 mm, feed - 6 mm, roof - 3 mm. Overall dimensions - 3540 x 1705 x 1680 mm. Base - 2629 mm, Ground clearance - 224 mm Engine - gasoline, four-cylinder, 40 hp, Maximum speed - 85 km / h, Power reserve - 225 km on the highway, 120-180 km along the country road.

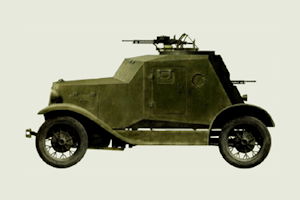

D-12		 1931 Combat weight - 1.65 tons. Crew - 4 people. Armors: forehead and hull side - 7 mm, engine side sheets - 5 mm. roof and bottom - 3 mm . Armament: one 7.62-mm machine gun DT in the body and one turret 7.62-mm machine gun Max . Engine inline 4-cylinder 40-hp carburetor liquid cooling. Speed on the highway - 85 km / h. Cruising on the highway - 225 km. Production - 60 pcs.

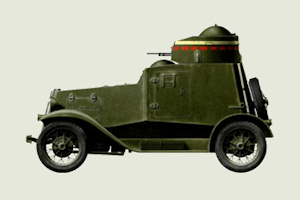

FAI
FAI		 1932 Combat weight - 1.75 tons. Crew - 4 people. Armament - one machine gun DT . Booking, mm: forehead - 6 board, feed, tower - 4.75, bottom - 3, roof - 4. The engine is petrol, four-cylinder. Engine power - 40 hp at 2200 rpm Maximum speed on the highway - 80 km / h. Power reserve, km - 225. Production - 676 pcs.

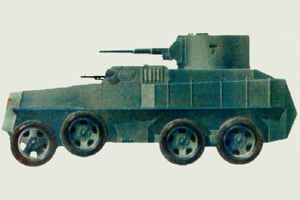

PB-4
PB-4		 1933 Combat weight, tons - 5.28. Crew, pers. - 4. Armament - 45-mm tank gun arr. 1932 20K , two DT machine guns . Booking, mm: board, feed, tower - 7, bottom - 5, roof - 4. Engine - gasoline, four-cylinder. Engine power, hp - 40 at 2200 rpm Maximum speed, km / h: on the highway - 50, afloat - 4. Power reserve, km - on the highway - up to 200, on the country road - up to 140.
BA-I
BA-I		 1934 Combat weight - 5 tons. Crew - 3 people. Length - 4.8 m. Width - 2.0 m. Height - 2.4 m. Armor - 8 mm. Armament - 37 mm cannon 7K, 2 x 7.62 mm DT . Engine power - 40 hp Speed - 63 km / h. Cruising on the highway - 150 km.

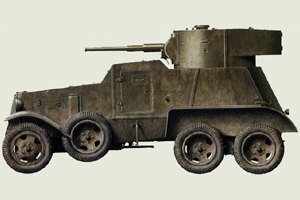

BA-3
BA-3		 1934 Combat weight - 5.82 tons. Crew - 4 people. Dimensions: Case length - 4825 mm. Case width - 1963 mm. Height - 2494 mm. Base - 254 mm. Armors: hull - 9mm, bottom - 2.5 mm, hull roof - 4 mm. Armament: Guns - 45-mm tank gun arr. 1932 20K . Machine guns - 1 x 7,62 mm DT . Engine inline 4-cylinder carburetor liquid cooling. Engine model - Ford AA. Power - 40 hp Speed on the highway - 70 km / h. Cruising on the highway - 248 km. Production - 180 pcs .

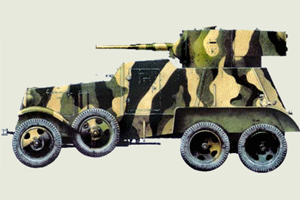

BA-6
BA-6		 1936 Combat weight - 5.12 tons Crew - 4 people. Armors - 8 mm. Armament: 1 x 45-mm tank gun arr. 1932 20K , 2 x 7.62 mm DT . Engine inline 4-cylinder 40-hp carburetor liquid cooling. Speed on the highway, km / h 43 Cruising on the highway - 197 km Production - 386 pcs.

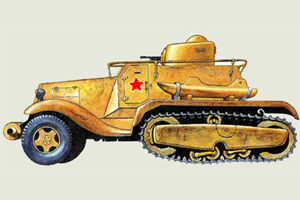

BA-30
BA-30		 1937 Combat weight - 4.6 tons. Crew 3 people. Length - 4940 mm. Width - 2400 mm. Height - 2340 mm. Ground clearance - 300. Armors - 6 mm. Armament - one 7.62-mm machine gun DT . Carburetor engine, GAZ-M1, 50 hp Speed on the highway - 37 km / h.

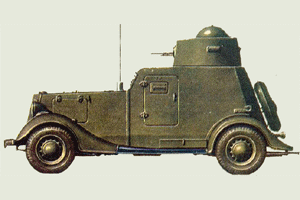

BA-20
BA-20		 1938 Combat weight, - 2.3 tons, Crew, - 2 pax., Armament - DT machine gun , Armor, mm – fore, side, stern - 6, roof, bottom - 6, Engine - gasoline, four-cylinder, Engine power– 50 l .s., Maximum speed - 90 km / h, Power reserve (data in brackets are data of BA-20M, which had an additional fuel tank of increased capacity), km –350 (450) along the highway, 270 (335) along the country road.

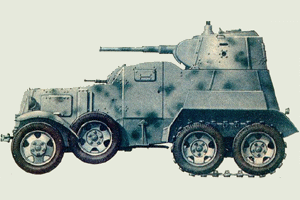

BA-10
BA-10		 1938 Combat weight, t - 5.14. Crew, pers. - 4. Armament - 45-mm tank gun arr. 1932 20K , two 7.62-mm machine gun DT . Armors, mm - forehead and tower - 10-15, board - 10, feed - 6-10, roof - 6. The engine is gasoline, four-cylinder. Engine power, hp - 50-52. Maximum speed, km / h - 53. Cruising, km - 260-305 on the highway, 180-200 on the side road. Dimensions, mm - 4655 x 2070 x 2210. Base, mm - 3000. Ground clearance, mm - 230 mm.

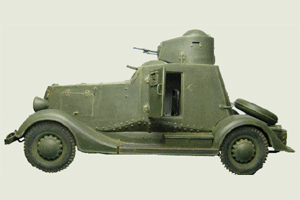

FAI-M
FAI-M		 1939 Combat weight, t - 2.0. Crew, pers. - 2. Width - 1750. Height - 2240. Wheelbase - 2845. Wheel, front wheels - 1435. Wheel, rear wheels - 1440. Ground clearance - 224. Armor, mm: front of body - 8. side of body - 4. forehead towers - 6. Maximum speed on a highway, km / h: - 90. Cruising, km - 315.

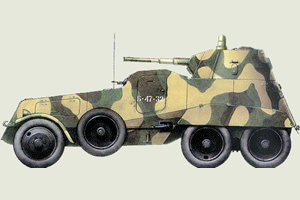

BA-11
BA-11		 1939 Combat weight - 8.13 tons. Crew - 4 people; engine: number of cylinders - 6, displacement - 5560 cm 3 , power - 90 l. with. at 2700 rpm; number of gears: 9 forward and 6 reverse; tire size - 34 - 1; length - 5500 mm; width - 2000 mm; height - 2080 mm; base: between the front and middle axles - 3360 mm, rear trolley - 1080 mm; ground clearance - 290 mm; speed - 64 km / h; armament: one 45-mm tank gun arr. 1932 20K and two DT machine guns . Production - 18 pcs.

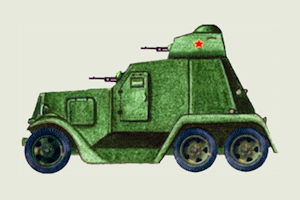

BA-21
BA-21		 1939 The maximum weight is 3.24 tons. Crew - 3 people. Case length, mm - 4220. Width, mm - 1778. Height, mm - 2263. Ground clearance, mm - 195. Armor. Type of armor - steel rolled. The forehead of the body, mm. - 10-11. Front of the tower, mm. - 10. Tower roof, mm - 5. Armament: Machine guns - 2 x 7.62 mm DT . Engine type - in-line. 4-cylinder carburetor liquid cooling. Engine power, hp - 50. Speed on the highway, km / h - 52.5. Cruising on the highway, km - 340-400.

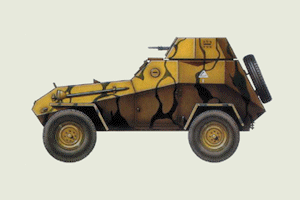

BA-64
BA-64		1942 Combat weight - 2.36 tons. Crew - 2, people. Armors: body front (top) - 12 mm / 40 °, body front (middle) - 6 mm / 84 °, body front (bottom) - 9 mm / 30–52 °, body side (top) - 6–9 mm / 30 °, hull side (bottom) - 6–7 mm / 30 °, hull feed (top) - 9 mm / 30 °, hull feed (bottom) - 6 mm / 35 °, bottom, mm - 4, hull roof , mm - 6, the front of the tower - 9 mm / 30 °, the side of the tower - 9 mm / 30 °, the stern of the tower - 9 mm / 30 °, the roof of the tower is open. Armament - 1 x 7.62 mm DT -29. Engine Type - Inline 4 x cylinder carburetor liquid cooling. Power - 50 liters. with. Speed on the highway - 80 km / h. Cruising on the highway - 560 km. Production - 9110 pcs.
