Armored Cars - Czarist Examples
 Nakashidze | 1904 | Combat weight 2.95 tons. Crew 4 people. Armament : one 8-mm machine gun ? t Hotchkiss. Armor - 4.5 mm. Gasoline engine, 4-cylinder, power - 37 hp Speed on the highway 50 km / h. Production - 12 pcs. |

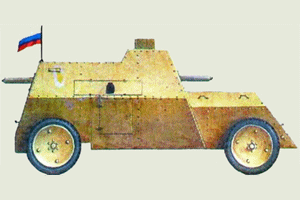

 Russo-Balt S | 1914 | Combat weight 2.96 tons. Crew 5 people. Armament : two 7.62-mm machine gun Maxim . Armors: forehead and feed 5 mm, sides 3.5 mm and roof 3 mm. Gasoline engine, 4-cylinder, power - 40 hp Speed on the highway - 20 km / h. |

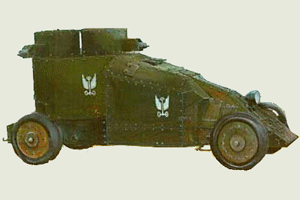

 Mgebrova | 1915 | The combat weight is 3.5 tons, the crew is 3 people, the engine is petrol, four-cylinder, 75 liters capacity. with., the maximum speed - 40 km / h, Armament : 1 37-mm gun Gochiss, two 7.62-mm machine gun Maxim . |
 Russo-Balt D | 1915 | Combat weight 8.35 tons. Crew 5 people. Armament : two 7.62-mm bullet?t and Maxim (for some copies were placed 1-2 37-mm cannon Maxim-Nordenfeldt ) . Armors: the hull forehead is 5.5 mm, the hull bead is 4 mm, the tower is 5 mm. Gasoline engine, 4-cylinder, power - 40 hp Speed on the highway - 28 km / h. |

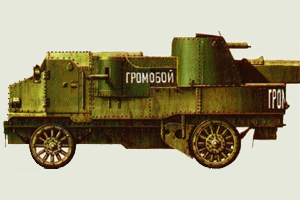

 Garford Putilov | 1915 | Combat weight - 8.6 tons. Crew - 8 people. Armament : 76.2-mm anti-storm gun model 1910, three 7.62-mm machine gun Max . Armor: 6.5 mm. Engine: gasoline, four-cylinder, power - 35 liters. with. The maximum speed is 20 km / h. Production - 48 pcs. |

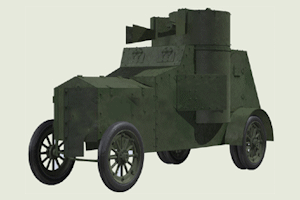

 Fiat Izhora | 1917 | Combat weight, t - 5.3. Crew, pers. - 5. Length of the hull, mm - 4800. Width of the hull, mm - 1880. Height, mm - 2540. Ground clearance, mm - 350. Armors, mm: hull forehead - 7, hull side - 7, hull stern - 7, hull roof - 4.5, turret forehead - 7, turret side - 7, turret feed - 7, turret roof - 4. Armament: machine guns - 2 x 7.62-mm Maxim arr. 1910 Engine type - FIAT, petrol, 4-cylinder, in-line, carburetor, liquid cooling. Engine capacity - - 72 l. with. The speed on the highway, km / h - 70 (18 reversing). Speed over rough terrain, km / h - 30-40 (15 on the reverse). Cruising on the highway, km - up to 140. Cruising on cross-country, km - 100. Production - 80 pcs |
 Austin–Putilovets | 1917 | Weight - 5.2 tons. Crew - 5 people. Dimensions: length - 4.9 m, width - 1.7 m, height - 2.4 m. Armors: forehead, side and towers - 7 mm, roof - 4.5 mm. Armament: two machine gun Maxim . Engine: gasoline, four-cylinder, 50 l. with. Maximum speed: 60 km / h. Power reserve - 200 km. Production - 33 pcs. |
|
