Dongyuan 05 deep-sea station mother ship

The 760 Institute also plans to build a Donghai 05 deep-sea comprehensive equipment experimental ship with a displacement of 15,000 tons, mainly as a deep-sea station mother ship to complete the deep sea survey and test mission. The Deep Sea Equipment Integrated Test Ship is another single integrated test ship planned to be built. The ship is planned to adopt integrated electric propulsion mode (or diesel propulsion) to highlight rapidity, seakeeping, maneuverability and test support for special large-scale experimental equipment. It is functionally complementary with the comprehensive survey vessel of the sea exploration equipment ("Dongyuan 04" ship), and is intended to complete deep sea survey and test missions as a deep sea workstation mother ship.

The ship is planned to be equipped with special retractable, replenishment, communication and navigation, and life-saving facilities for the work of deep-sea submersibles to meet the requirements for work and replenishment of deep-sea workstation personnel.

It is planned to equip 30 tons of hydraulic compensation cranes, 1 set of 50 tons, 1 set of heavy winch 300kN, 500kN each; 1 set of hydrodynamic winch 100kN, 200kN; 1 set of 50 tons of towed gantry crane; 1 set of 30 tons of cranes at the beginning and the end It is used for large-scale test equipment deployment and recycling; it is also equipped with A-type frame, gravity sampling equipment bracket and transfer mechanism, expansion frame; the rear deck is equipped with sea-searching trailer, deep sea winch, cable winch, ROV winch, side Sweeping snoring and loading elevators. The ship is planned to be equipped with DP-2 hydrodynamic positioning system, electromagnetic compatibility monitoring and diagnosis system, computer network platform integration system, and integrated navigation information display system. In order to ensure the test power, the ship is equipped with 380V, 220V, 24V and low noise power supply and UPS power supply.

There are 6 large laboratories in the whole ship. Each laboratory and equipment can be modified according to the test needs, with an area of 1000m2; the whole ship's living area is about 2600m2; the functional cabins include: dining room, catering room, kitchen, meeting room, and more. Function room, reading room, infirmary, laundry and drying room, cold storage, etc.

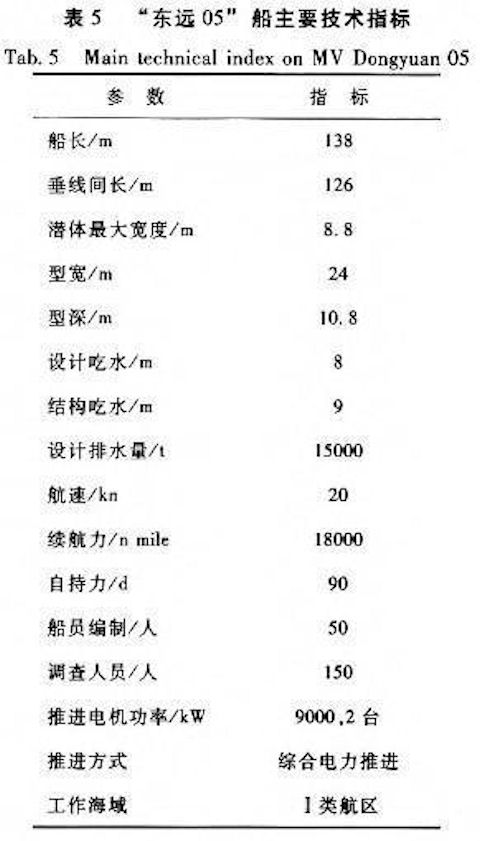

Dongyuan 05
