The Samen, Sejjil, and Ashura Iranian New Ballistic Missile Developments

© By Charles P. Vick (All Rights Reserved)

Senior Technical Analyst, Globalsecurity.org

05-26-09

Confirmation of the Samen/Ghadr-101/Chinese M-9/DF-15 Solid Propellant Ballistic Missile

On Sunday September 21, 2008 Iran quietly paraded without fanfare it version of the long predicted Samen/Ghadr-101 tactical solid propellant ballistic missile. It is the Iranian variant of the Chinese M-9/DF-15/CSS-6 the technology of which was received from China several years ago along with other solid propellant technology received from Pakistan then existing A Q. Khan proliferation network as predicted by this web site. Two images of the new one meter diameter ballistic missile long since perfected and deployed in Iran were shown in two photo images from the FARS News Agency. The only noticeable difference is the display version essentially identical to the Chinese M-9 rocket body design is the shortened conical nose cone installed on this variant of the derived design. It also capable of utilizing the advanced tri-conic warhead design seen on the Shahab-3B and Shahab-3C/Ghadr-1 launch vehicle. This is an undisputable example long suspected of Chinese ballistic missile technology proliferation to Iran . It is also believed to have received help with its Ashura/Ghadr-110A medium range ballistic missile replacement for the Shahab-3A/3B ballistic missile with it 2,000 km range capacity. The Ashura/Ghadr-110A is in production and is being deployed. Literally Iran developed, flight tested and put this missile in production, and deployment without ever saying a thing about. It proves in this particular case that the Iranian "People's Mojahedin of Iran" prediction of this introduction was indeed spot on accurate intelligence released to the world. (16)

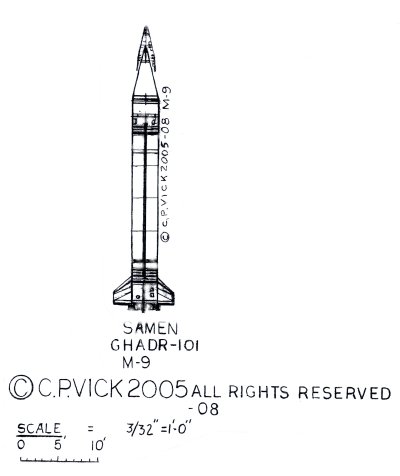

Samen single stage solid propellant ballistic missile



Samen/GHADR-101

Range Kilometers 750-800
Diameter Meters ~1.0-1.25
Height Meters ~9.0
Stages   1-2?
Launch Mass Kilograms
Warhead Mass Kilograms 1,158-650
Chinese Origin Heritage M-9 missile

US GOVERNMENT FINALLY ACKNOWLEDGEMENT THE NEW

NORTH KOREAN & IRANIAN MISSILES

By Charles P. Vick © All Rights Reserved 2007

Senior Analyst, Globalsecurity.org

Finally on January 29, 2007 the US government acknowledged for the first time the existence of several new Iranian and North Korean missiles under development through a speech by the deputy director of the Missile Defense Agency of the Pentagon Army Brig. General Patrick O’Reilly before the George C. Marshall Institute.  In that speech he described the Iranian multi stage Ghadr-101 with a 750-800-1000 km range and the two-three stage Ghadr-110 (Ashura) solid propellant missile with a range of (1,324 miles) 1,995.16 or close to 2,000 kilometers. It has been known that the Iranians are working on the Ghadr-101 as well as the Ghadr-110 (Ashura) solid propellant missiles. The Ghadr-101, 110 solid motor development was completed in 2005. He also described the two stage Taep’o-dong-2C/3 as having a range of (6,200 Miles) 9,975.8 kilometers and the three stage version with a range of (9,300 miles) 14,963.7 kilometers with a 200-250 kg warhead. He went further in his slides presentation to show that the liquid propellant No-dong-B/Mirim has a demonstrated range of 2,000 miles or 3,218 kilometers (3,000 kilometers) when it is capable of flying (2,485 miles) or 4,000 kilometers. (24) The No-dong-B was described as “a qualitative improvement in the performance” from earlier North Korean missile systems. The Iranian Ghadr-101, 110, 110A will in fact also provides Iran with an ASAT capability besides its operational MRBM and IRBM capability.

References:

1. Pamela Hess , North Korea has second long-range missile site, Associated Press, Sept. 10, 2008 pp. 1-3.

2. North Korea has second long-range missile launch site: analyst, AFP Washington, Sept. 19, 2008 p.1.

3. Jane's Defense Weekly Uncovers North Korea 's New Missile Facility,,Media Release, Sept. 11, 2008 , p. 1-3.

4. N. Korea Building New Missile Base, http://english.chosun.con, Chosun ilbo (english edition) Sept. 12, 2008 , p. 1.

5. New North Korean Missile Site Revealed, http://english.chosun.com (english edition), Sept. 12, 2008 , p. 1-2.

6. N. Korea Tests Missile Ignition, http://english.chosun.com, Chosun ilbo English edition, Sept 16, 2008 , p.1.

7. North Korea tests missile engine, http://www. presstv.ir (PRESSTV of Iran) Sept 16, 2008 , p. 1.

8. N. Korea Developing Long Range Missile Thrusters At New Launch Site: Source," South Korean Yonhap news agency report, Sept. 16, 2008 , p. 1-2.

9. Kim Kwi-Ku"n:"What Is the Missile Base in North Korea's Tongch"ang-ri for?-"likelihood of Launch Artificial Satellite - Relation to Nuclear Weapons Delivery Means"", South Korean Yonhap news agency report, Sept. 14, 2008, p. 1-2.

10. Google Earth imagery

11. N Korea conducts engine test at new missile site: report AFP, http://www.spacewars.com , Seoul , September 16-17, 2008 , p. 1-2.

12. Pamela Hess , US : North Korea conducts missile engine test, Associated Press, September 16, 2008 , p. 1-2.

13. Choe Sang-Hun, The New York Times, North Korea Said to Have Tested Missile Engine, http://www. nytimes.com , Sept. 16, 2006 , Sept 17, 2008 , p. 1-2.

14. Blaine Harden , North Korea Tests Engine of Long-Range Missile, Report Says, The Washington Post Foreign Service, Sept. 17, 2008 p. A-12.

15. Kurt Achin, Seoul, South Korea, New North Korean Missile Site Revealed, Voice of America, Sept 11, 2008 pp. 1-2.

16. Iranian military parade photographs of the FARS News Agency of September 21, 2008 .

17. N Korea may already have nuclear warheads: ex-CIA official, Staff Writer, Tokyo , Japan , AFP, http://www.spacewar,com, September 26, 2008 , pp. 1-2.

18. N. Korea unlikely to possess nuclear weapons: military chief, Yonhap news agency, http://english.yonhapnews.co.kr/northkorea/2008/10/08/0401000000AEN20081008008800315.HTML October 8 , 2008, pp. 1.

19. Intelligence: N. Korea to Test New Missile, The Dong-A Ilbo, http://english.donga.com , October 2, 2008 pp. 1 -2.

24. http://www.washingtontimes.com/national/20070130-122437-6559r.htm Gertz, Bill, How the “axis” seeks the killer missile, The Washington Times, January 30, 2007 , p. ?

25. http://www.washingtontimes.com/national/20070130-122437-6559r.htmGertz, Bill, How the “axis” seeks the killer missile, The Washington Times, January 30, 2007

26. N Korean base could handle longer-range missiles: S Korea minister, Spacewars.com, Seoul AFP, Nov 4, 2008 , pp. 1-2l.

27. A Korea : N Koreas building base for bigger missiles, Seoul , South Korea , AP, Nov. 5, 2008 , p.1.

28. Iran "fires second space rocket", http://news.bbc.co.uk , BBC, 15:50 GMT November 26, 2008 , pp. 1-2.

29. Iran To Send Animals Into Space, Tehran, Iran RIA Novosti, http://www.space-treael.com/reports/Iran_To_Send_Animals_Into_Space_999.html, Dec 03, 2008, p.1.

30. N. Korea Could Export ICBM Capability To Iran, Middle East Newsline , Washington , Dec. 24, 2008 p.1 http://www.menewsline.com

31. Iran Builds First Satellite Ground Station, Middle East Newsline, Nicosia , January 14, 2009 , p.1

32. Iran Begins Extended Shihab-3 Missile Output, Middle East Newsline, Nicosia , December 10, 2009 , p.1.
