Iraq Survey Group Final Report
Iraqi Uranium Conversion Program
Iraq’s pre-1991 uranium conversion program was established at different sites to produce the necessary uranium compounds for the enrichment, reprocessing, and metallurgy programs to support its pre-1991 nuclear weapons program. Iraq had establishedmuch of its uranium conversion basic research and development at Tuwaitha. As processes were developed, they were adapted for production at Tuwaitha and other sites as appropriate
(see Figures 5 and 6).
- Iraq produced a variety of uranium compounds to support its pre-1991 nuclear weapons program at a number of facilities, including Tuwaitha, al Jazira, Tarmiya, Ash Sharqat, Rashdiya, and Al Athir. At the time of Desert Storm, Iraq’s capabilities to produce uranium compounds/metal varied as noted in Table 2.
Table 2 Iraq Uranium Conversion Program (Pre-Operation Desert Storm) | |||
Site | Bldg | Activity/Capability | Status at ODS |
Tuwaitha | 9 | Reprocessing of irradiated fuel | Operational |
10 | Uranium purification | Operational | |
15B | UO2 to UCl4 lab production for EMIS; UF4 to U metal preparation experiments; UF4 and UF6 production & lab scale preparation | Operational | |
22 | Reprocessing | Operational | |
38 (G1 wing) | UF4 production | Operational | |
64 | Uranyl nitrate to U metal; UO2 to UF4 to U metal | Operational | |
73A&B | UF4 to U metal production; U metal purification; UF4 preparation | Operational | |
73A | Dissolution of U pellets & fuel; nuclear-grade UO2 conversion. | Operational | |
73B | “Yellowcake” purification & conversion to UO2 experiments. | Operational | |
85 | UO2 to UCl4 lab & pilot plant production for EMIS; Pilot plant recovery of U from R-100 & R-50 graphite collectors; Purification of UF6 | Operational | |
RWTS | Pilot plant U recovery from R-100 & R-50 liners | Operational | |
Al-Jazira | 000 | AYC to UO2 production for EMIS. | Operational |
510 | Utilities & storage tanks for Project 212 | Operational | |
400 | UO2 to UCl4 production for EMIS | Operational | |
401 | Utilities for Project 244 | Operational | |
3 Underground Facilities | Spare parts storage for U program construction phase | Operational | |
Tarmiya | 210 | U recovery from R-120 (nongraphite) | Precommissioning |
220 | U recovery from R-120 (graphite) | Incomplete | |
230 | Recovered U to Ucl4 (nongraphite) | Incomplete | |
240 | Lab support for Project 266 | ||
265 | Pilot scale U recovery from R-120 (graphite & nongraphite) | Operational | |
Al- Sharqat | 350 | Chemical recovery for natural U from components of R120 | 80% constructed; 60% checked out |
360 | U recovery (HEU & depleted U) from R120 &R60 collectors | 85% constructed; 50% checked out | |
370 | U recovery from R60 collector components | 80% constructed; 60% checked out | |
Rashidiya | Hall C | Lab scale UF6 preparation & purification; UF4 production | |
9 | UF6 and UF4 R&D | ||
10 | UF6 and UF4 R&D; UF6 purification | ||
22 | UF6 production | Operational | |
Al-Atheer | 6830 | U metallurgy | Incomplete |
6520 | U metallurgy | Operational | |
6580 | U chemistry | 50% complete | |
Al-Rabee | U metallurgy | Transferred to Al-Atheer | |
References: Currently Accurate, Full, and Complete Declaration of the Past Iraqi Nuclear Program, 3 Dec 2002 |
As a result of Desert Storm and the UN and IAEA efforts afterwards, many of the Iraqi uranium conversion facilities were destroyed or damaged and the program crippled. Many of the facilities of Tuwaitha, Al-Athir, al Sharqat, Rashidiyah, and Al-Athir were destroyed during Operation Desert Storm or subsequently through IAEA inspections. Table 3indicates the destruction of facilities at the original sites and by whose action.
As a result of Operation Iraqi Freedom and its aftermath, much of Iraq’s residual potential uranium conversion capability was destroyed. ISG site visits to many locations found not only destruction resulting from Operation Iraqi Freedom, but also looting that rendered many facilities inoperable. ISG investigations, including sampling and radiation surveys, during these visits uncovered no indications of nuclear weapons-related activity.

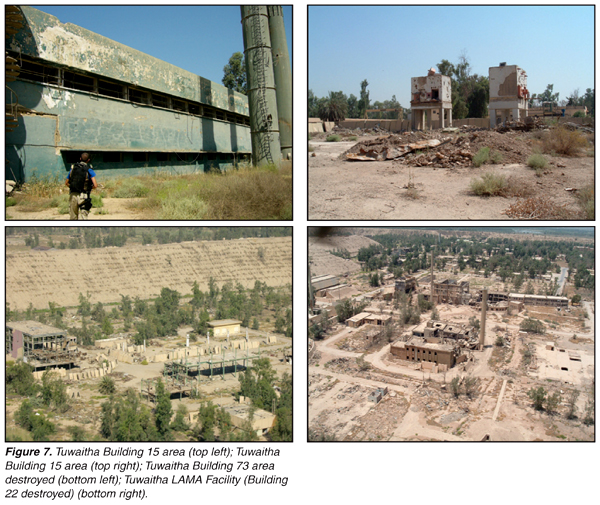

- Tuwaitha (Baghdad Nuclear Research Center). ISG conducted a series of visits to Tuwaitha. During these visits, 151 structures were surveyed and cleared, 28 structures judged destroyed, and eight structures deemed hazardous (see figure 7).
- Al-Athir. US military forces found Al-Athir abandoned and heavily looted. ISG visited and found no evidence of uranium conversion activities.
- Al Zahf Al Kabeer (Taji Metallurgy). ISG visits to Al Zahf Al Kabeer found that all research and production buildings showed extensive evidence of looting. They found no evidence of uranium metal production or weapon component production and received no positive readings from radiation surveys.
- Al Raya. ISG visits to Al Raya found extensive bomb damage and widespread looting. They found no evidence of uranium metal production or weapon component production and received no positive readings from radiation surveys.

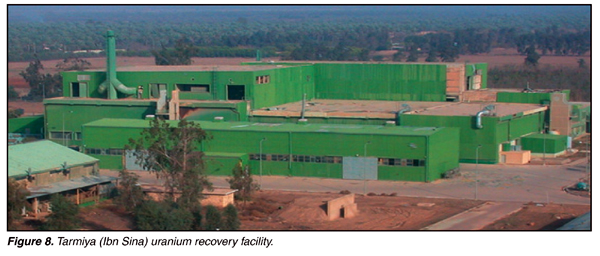

- Ibn Sina (Tarmiya). An ISG visit to Ibn Sina found the facility to be closed since major ground combat operations. The facility had been subject to some looting and was apparently in the process of restoring operations. No indicators or evidence of WMD activity was found (see Figure 8).
- Exceptions to the general destruction and looting were Al Amal and Al Salaam. Al Amal was active 24 hours a day, seven days a week to support an oil refinery at Basrah. Al Salaam was not damaged but showed evidence of minor looting (see Figures 7 and 8).
Table 3 Iraq’s Uranium Conversion Program (Post-Operation Desert Storm Iraqi & UN/IAEA Activities - Facilities) |
||||
Site | Bldg | ODS Impact | Iraqi Actions | IAEA Actions |
Tuwaitha | 9 | Destroyed | ||
10 | Destroyed | Leveled by Iraq | ||
15B | Destroyed | Leveled by Iraq | ||
22 | Destroyed | |||
38 (G1 wing) | ||||
64 | Destroyed | |||
73A&B | Destroyed | Leveled by Iraq | ||
73A | Destroyed | Leveled by Iraq | ||
73B | Destroyed | Leveled by Iraq | ||
85 | Destroyed | Leveled by Iraq | IAEA destruction | |
RWTS | Destroyed | |||
Al-Jazira | 000 | Destroyed | Leveled by Iraq | |
510 | Destroyed | |||
400 | 50% destroyed; 40% equipment destroyed | |||
401 | Destroyed | |||
3 underground Facilities | Closed and sealed | |||
Tarmiya | 210 | Partially destroyed | ||
220 | Not destroyed | |||
230 | 80% destroyed | |||
240 | Not destroyed | |||
265 | Not destroyed | |||
Al-Sharqat | 350 | Destroyed | ||
360 | Destroyed | |||
370 | Destroyed | |||
Rashidiya | Hall C | Evacuation and/or destruction of significant materials | Transfer and/or destruction of significant materials | |
9 | ||||
10 | ||||
22 | ||||
Al-Atheer | 6830 | Destroyed by IAEA | ||
6520 | Destroyed by IAEA | |||
6580 | Destroyed by IAEA | |||
Al-Rabee | ||||
References: Currently Accurate, Full, and Complete Declaration of the Past Iraqi Nuclear Program, 3 Dec 2002. |
