STRAIGHT FLUSH |
|
|---|
|
Function: |
Fire control/short range target acquisition
Can guide three missiles simultaneosly
|
|
Range |
60-90km, 10,000m alt |
|
Frequency |
G/H band (acquisition, I band (tracking) |
|
Associated weapon system |
SA-6 GAINFUL and possibly SA-11 GADFLY SAM, LONG TRACK, THIN SKIN target acquisition radars |

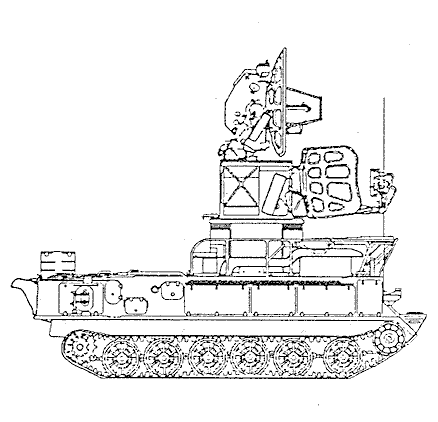

Recognition: |
- Essentially same chassis as SA-6
- 12ft long search reflector with 7 ft diameter fire control parabolic dish on top
- Radars mounted on heavy turntable
- Reflector backs have hvy pressed metal appearance
- Radars can rotate independently of one another
- Assembly folds flat in transit
|
