LOW BLOW

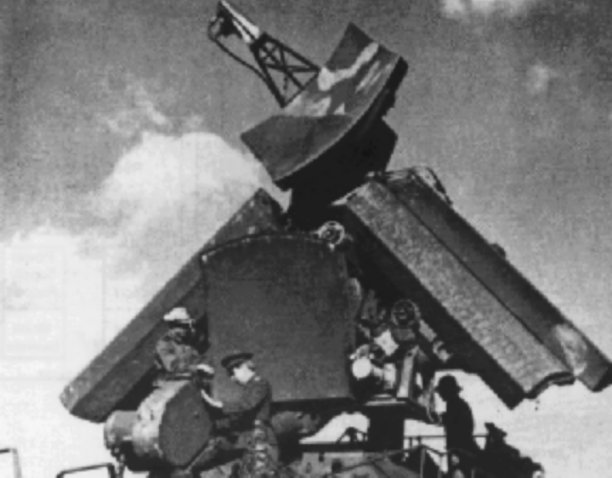

The S-125 NEVA-M (SA-3 GOA) long-range surveillance and target acquisition is handled by the van-mounted P-15 FLAT FACE radar. Target data generated by these tracking radars is passed to the battalion's LOW BLOW trailer-mounted fire control radar. With a maximum acquisition range of 110 km, the tracking range of this I-band system is between 40-85 km, depending on target size and altitude. The system can simultaneously track six target aircraft and guide one or two missiles. Improved LOW BLOW radars include TV cameras with a range of 25 km to provide the fire control team with the data needed to perform a command guidance intercept in a heavy ECM environment. If the missile fails to intercept it would be commanded to either change trajectory or self-destruct.

LOW BLOW

Function:

Fire Control

Trk/FC

Guidance

Frequency

I band

I band

D band

Range

40 km

40-85 km

29 km

Comments

Power 250kw
PRF 1750-3500pps
PW .25-5ms(us)
BW 12x1.5
Scan (trough) 16HZ

PRF 3560-3585HZ
Scan (Para) 25HZ

Associated weapon system

SA-3 GOA SAM, FLAT FACE, SQUAT EYE acquisition radar

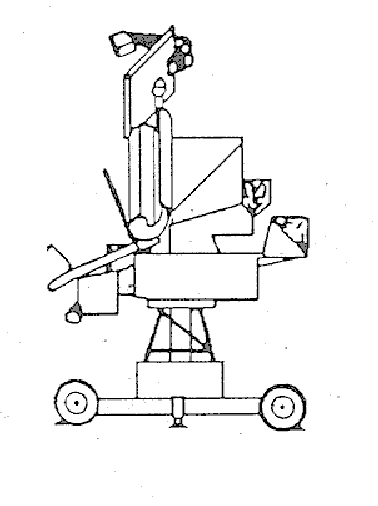

Recognition:

  • Four-wheeled trailer-mounted
  • Two scanning parabolic dishes one above the other
