Project 23370 multifunctional modular boat

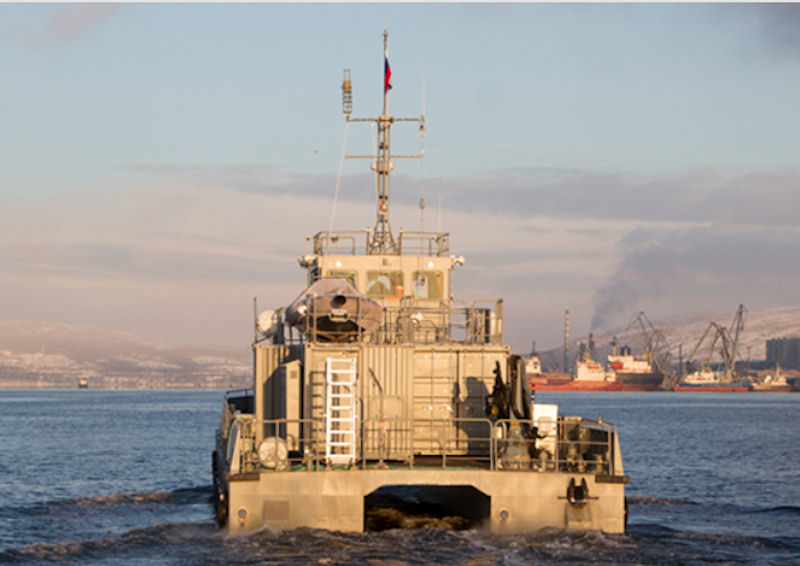

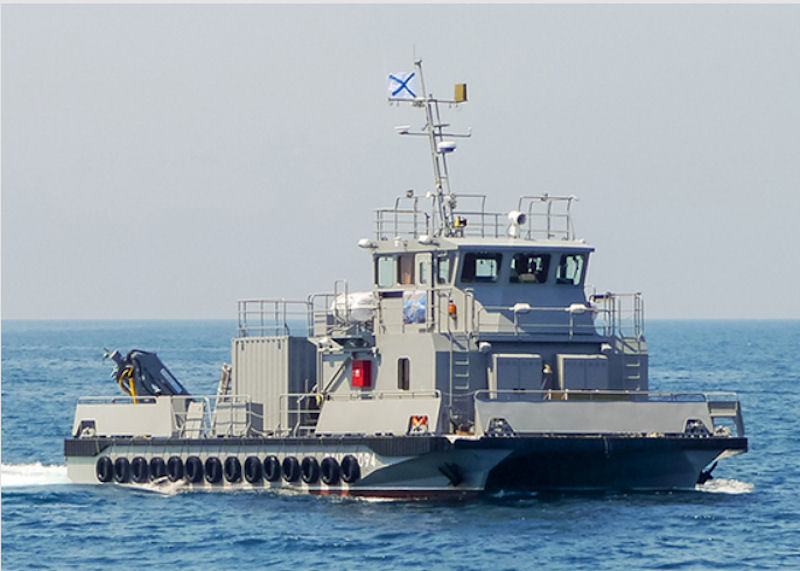

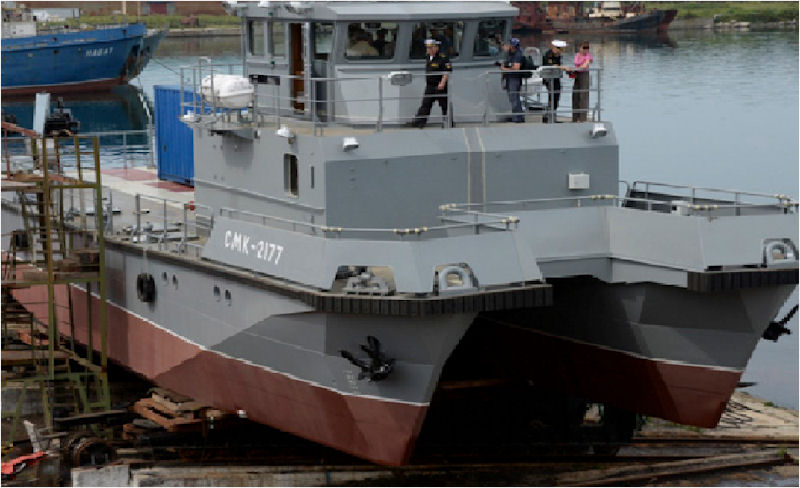

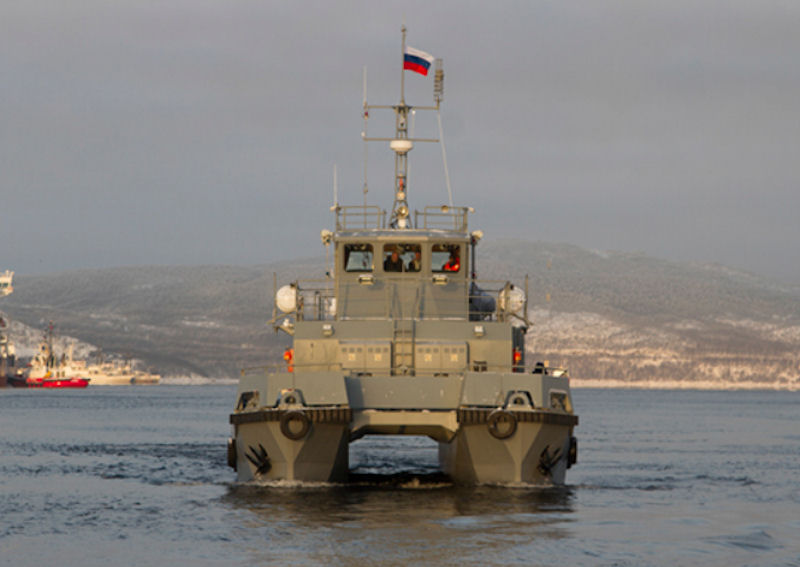

The multifunctional modular boat of the project 23370 is a catamaran-type vessel that allows placing a large number of equipment and machinery on the deck area in special functional modules in a container design. It is intended for use on inland waterways, in the waters of ports and the coastal marine zone as a multi-functional platform - carrier of specialized equipment and hardware. As the head of the Russian Navys search and rescue service, Captain 1st Rank Damir Shaikhutdinov, said, the next multifunctional modular boat-catamaran of the improved project 23370M will be available to the search and rescue forces of the Pacific Fleet in 2018 and will be deployed in Kamchatka.

According to him, the boat is designed to perform search, rescue and search and rescue operations at naval bases at open raids, at naval bases and coastal areas, including to provide diving descents up to 45 m. - the rescue boat of the project 23370M was developed in development of the project 23370, in comparison with which it has improved seaworthiness and increased full speed, improved living conditions and the ability to accommodate Special personnel ceiling elements and advanced diving systems. Along with this, it is equipped with an even more efficient set of fire extinguishing agents with increased productivity and a significantly expanded nomenclature of portable means and equipment.

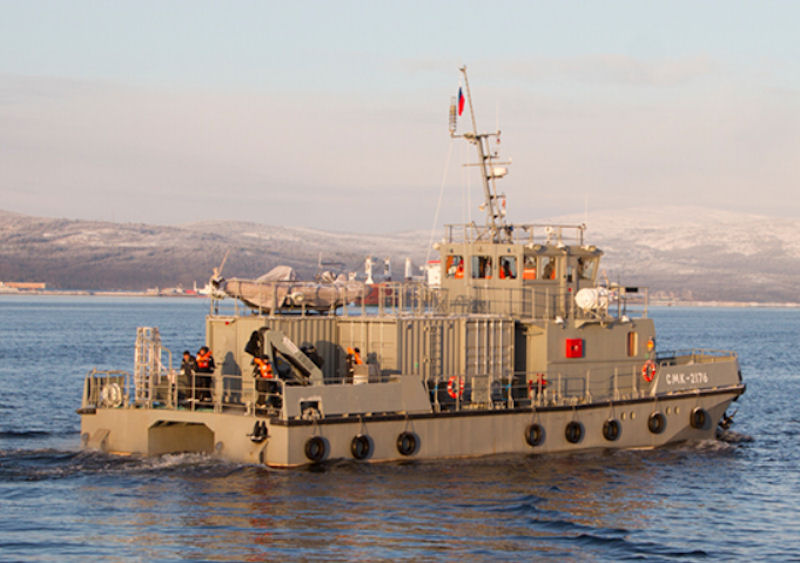

As part of the state contract, the first multifunctional modular boat of the project 23370M, the SMK-2176, was built at the KAMPO enterprise in 2016 and entered the Northern Fleet. In November 2017, the next serial launch of the project 23370M was transferred to the Pacific Fleet with a permanent deployment in Vladivostok. The third modernized modular boat in 2018 will strengthen the search and rescue forces of the base station of the Pacific Fleet in Kamchatka.

The boat of the project 23370M is a catamaran-type vessel built to the order of the Russian Navy by the Moscow enterprise KAMPO together with the design bureau Quartet SPb. The boat of the project 23370M has significantly improved performance compared with its predecessors - modular boats 23370. maximum speed up to 13 knots. On the multifunctional modular boats of the project 23370M installed advanced, container diving complex KVK 23370M. Diving complex, which consists of two removable container modules based on a 20-foot container) and on the basis of a 10-foot container

Also, the boat of the project 23370M is equipped with a BKD-120T pressure chamber manufactured by Tethys Pro JSC; the diving descents control station and the pressure chamber control station are equipped on board. As part of the diving complex, universal diving equipment SVU-5-1 and SVU-5-2 are used, produced by the Russian enterprise KAMPO JSC. The boat can be equipped with a wide range of means for performing underwater operations, including the remote-controlled uninhabited underwater vehicle (TNLA) Marlin-350 developed by Tetis Pro JSC.

The modernized boat is also equipped with a modern fire extinguishing system with fire pump performance up to 220240 m / hour and a wide arsenal of portable fire fighting equipment and equipment located as part of the fire module based on a 20-foot container that includes a water and foam fire extinguishing system designed to extinguish a fire at emergency facilities with water jets and air-mechanical foam using handheld portable barrels and foam generators. A hydraulic crane-manipulator with a maximum lifting capacity of up to three tons is installed on the boat of the project 23370M as lifting equipment.

project 23370 M
Designer KAMPO OJSC (Orekhovo-Zuyevo, Moscow region)
Displacement 150 tons (full)
length 24.2 m,
width 8.5 m,
draft 1.4 m.
Maximum speed 13 knots
Navigation range 250 miles
Autonomy 5 days
Crew 12 people
