Project 22356 Frigate [Export]

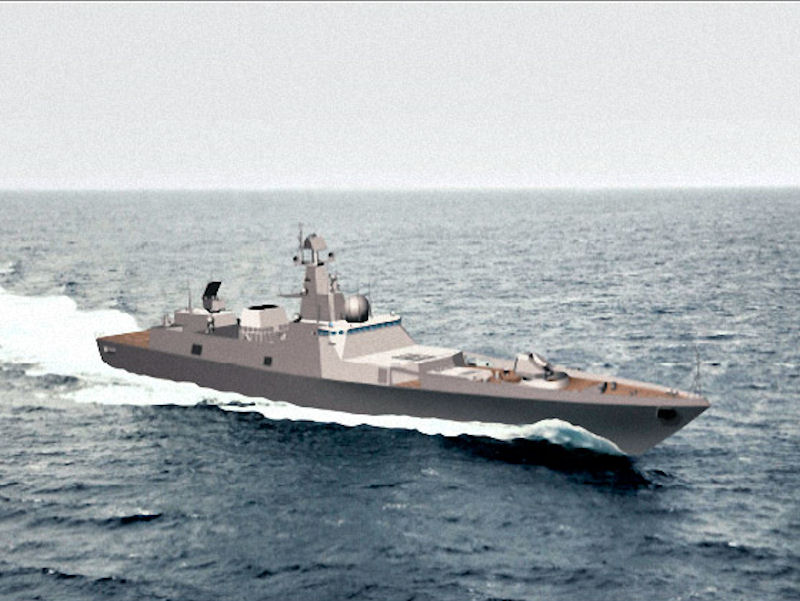

Project 22356 Frigate [Export] Project 22356 Frigate is designed to perform anti-sub hunter-killer missions, destroy inland targets and provide amphibious landing support. With her overall length of 135 m and 4750-tonne displacement, she is powered by compound 64400 shp gas-turbine propulsion plant supporting the maximum speed of 29.5 knots, range up to 4500 nautical miles and endurance of 30 days. These characteristics display the project 22356 frigate as the most favorable platform for shaping effective naval multi-purpose task forces.

Primary weapon of the frigate comprises Club-N integrated anti-sub/anti-ship missile system. Versatile artillery arsenal, air defence systems, anti-sub warfare assets as well as Ka-28 or Ka-31 shipborne helicopter deployment capability allow the vessel to cope with the whole range of combat missions assigned.

Geometric shape, sharpened stem post, double-layer bottom along the most part of the hull provide the ship with excellent seaworthiness and protection. New stabilizers with non-retractable fins enable weapon use in rough seas (WMO up to 5 points) without restriction. Project 22356 frigates have considerable upgrade-and-modify potential suggesting development of a vast variety of derivatives, both multirole and specialized.

Specifications

Dimensions, metres

135.0?16.4?4.5

Normal displacement, tons

ab. 4,550

Propulsion plant

diesel & gas turbine type

Full speed, knots

ab. 29.5

Cruising range at economic speed, n. miles

4,500

Endurance, days

30

Armament

Strike missile weapon:

1 Club-N integrated missile system
1 missile system with Yakhont cruise SSMs,
up to 16 missiles of 3M-54TE, 3M-54TE1, 3M-14TE, K310 type

Air-defence missile weapon:

1 Rif-M system, 32 missiles
or
1 Shtil-1 system, 36 missiles

Artillery weapon:

1 130 mm gun mount
2 30 mm automatic gun mounts

Anti-submarine weapons:

Up to 8 missiles of 91RTE2 type of Kalibr-NKE integrated
missile system out of ammunition of 3S-14E launcher
1 Paket-E/NK small size torpedo system with anti-torpedo

Electronics:

1 Fregat-M2EM or Fregat-MAE-3 air & surface target detection radar
1 Mineral-ME long range surface search radar system
1 MTK-201ME optical-electronic search system
1 Sigma-E22356 or Trebovanie-M combat management system

Sonars:

1 Zarya-ME-03 or MGK-335EM-03 sonar system
1 Vinietka-EM sonar

Signal intelligence & ECM:

1 TK-25E ECM system
1 KT-308-05 passive jamming system

Aircraft capability:

1 Ka-28, Ka-31 or similar helicopter Avionic ammunition magazine
