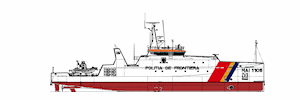

MAI 1105 - Stefan Cel Mare
| YARD NUMBER | 555056 |
| DELIVERY DATE | September 2010 |
| BASIC FUNCTIONS | Patrol the maritime border of Romania and the European Union |
| CLASSIFICATION | Bureau Veritas |
| FLAG | Romanian |
| OWNER | General Inspectorate of the Border Police, Romania |
| DIMENSIONS | |
| LENGTH O.A. | 66.00 m / 214.5 feet |
| LENGTH B.P.P. | 64.05 m |
| BEAM MLD. | 10.25 m |
| DEPTH MLD. | 4.70 m |
| DRAFT SUMMER | 2.90 m |
| DISPLACEMENT (SUMMER) | 925 t |
| TANK CAPACITIES | |
| BALLAST WATER | 69 m3 |
| FUEL OIL | 149 m3 |
| POTABLE WATER | 32 m3 |
| DISPERSANT | 1 m3 |
| PERFORMANCES (TRIALS) | |
| Operating range | 1.800 Mm |
| Cruising speed | 12.0 knots |
| Top speed | 21.0 knots |
| SPEED (AT 2.90 M DRAFT) | 20.6 kn |
| PROPULSION SYSTEM | |
| MAIN ENGINES | 2x MTU 16V 4000 M73 |
| PROPULSION POWER | 2x 2560 kW at 1970 rpm |
| PROPELLERS | 2x 2300 mm, CPP |
| BOW THRUSTER | 1x 160 ekW, 990 mm, FPP |
| AUXILIARY EQUIPMENT | |
| GENERATOR SETS | 3x MAN D2855 LXE30, each 176 ekW at 1500 rpm, 400 V, 50 Hz |
| EMERG. GENERATOR SET | 1x MAN D0824LE201, 80 ekW at 1500 rpm, 400 V, 50 Hz |
| DECK LAY-OUT | |
| ANCHOR MOORING WINCH | 1x Electric-hydraulic, with two warping heads |
| CAPSTANS | 2x Electric, each 5 t pull |
| FAST RESCUE CRAFT | 1x 6.7 m, 260 HP diesel engine, duo prop. |
| ACCOMMODATION | |
| CREW | 19 persons |
| PASSENGERS | 6 persons |
| SURVIVORS OR SIMILAR | 75 persons |
| NAUTICAL AND COMMUNICATION EQUIPMENT | |
| RADAR SYSTEM | 2x X-band |
| GMDSS | Area A3 |
| COMBAT AND SURVEILLANCE SYSTEMS | |
| SURVEILLANCE RADAR | 1x Terma Scanter 2100 |
| EO/IR SYSTEM | 1x FLIR Talon |
| WEAPONS | 1x Oto Melara 12.7 mm turret gun |
|
