Coastal Patrol Vessel CPV 40

The CPV 40 is designed for patrol, maritime interdiction, fisheries protection, SAR and coastal protection among other missions. Perfect for asymmetric threat scenarios due to its flexibility, it is equipped with a state of the art Typhoon MK25 Mod II naval gun system, a complete suite of navigation and communication equipment and a stern launched interceptor boat. Additional sensors, such as the navigation and 2D surveillance radar, communication and ESM are installed to guarantee the fulfillment of the tasks of the CPV 40.

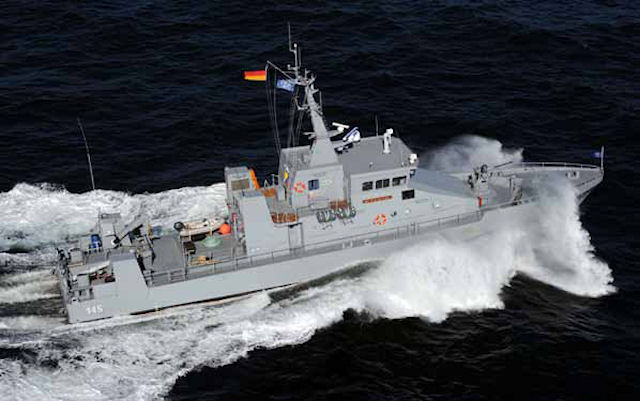

Fassmer CPV 40
Fassmer CPV 40
Fassmer CPV 40

Customer/OperatorArmada de Colombia
Length over all 40,00 m
Beam moulded 7,40 m
Draft 2,35 m
Displacement 245 t
Classification GL + 100 A5 HSDE AUT
Patrol Boat
Capacities Fuel 30 m3
Fresh Water 5 m3
Crew 24 persons
Speed 23 knots
Range 2.000 nm at 12 knots
Construction Hull steel
Superstructure marine aluminium
Propulsion Main Engines 2 x MTU 12V 4000 M73 at
1.920 kW each
Propeller 2 x FPP
Special Features Typhoon Mk 25 Mod II stabilized naval gun system with
Toplite Electro-Optical Director,
fast Interceptor Boat AVON Searider SR.5.4 Navy,
crane Palfinger PK 8000 TMA
