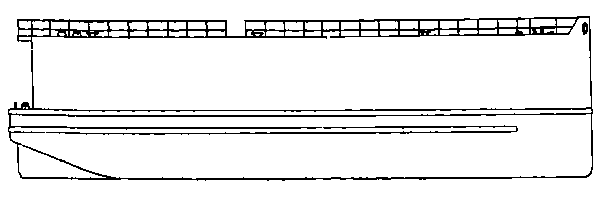

YRDM - Hull Machinery Workshop

YRDM is a 150 foot by 35 foot non-self-propelled hull machinery workshop which provides support for floating dry-docks. It is capable of machining new parts, repairing valves and pumps, and accomplishing most machine shop services.

PRINCIPAL CHARACTERISTICS

Length

150¢

Beam

35¢

Depth

26¢

Draft

6¢

Displacement. light

490 tons

Displacement, full load

750 tons

Fuel capacity, diesel oil

75 tons

PRINCIPAL MACHINERY and EQUIPMENT

One diesel driven generator, 60 kw, 450 volts, AC

Anchor and anchor windlass

Boat and anchor handling davit

Cargo handling davits, port and starboard, 600 pounds.

Bench miller

1/2" HP Grinder & Buffer bench type

16" bench drill

Precision bench lathe

Drill grinder 4-G

Cutter & tool grinder universal

16" x 54" centers lathe (2)

No. 2 universal miller 14" x 30" centers lathe (2)

3' x 5' layout table

No. 3 milling machine

21" upright drill

3 HP AC grinder

25 ton vertical hydraulic press

36" radial drill

16" heavy universal shaper

36" lathe

100 ton vertical & horizontal press

36" open shaper

Universal horizontal boring machine

No. 2 drill 8' x 12' floor slab

Armature stand

Coil spreader

Armature stator coil winder

Armature bake oven

Bench grinder 12-1/4 x 2" - 1 HP

24" x 30" log desks (2)

3 ton crane & trolley hoist

6" combination vise

4" combination vise (7)

3" combination vise (3)

24" pipe vise

HULL, STRUCTURE and FITTINGS

Hull - All steel construction

Principal Compartments

Machine shop

Instrument shop

Electrical shop

Tool issue room

Hull Fittings

9" single bitts

14" closed chocks

36" cleats

SAFETY

Anchor - Anchor & anchor windlass

Drainage - Bilge drain eductor

Life Saving

Two 25-person life rafts

One 26' motor launch

Fire - C02 bottles

FLUID SYSTEMS

Fresh water tanks

Diesel oil tanks

Lube oil hand pump

Air compressor & receiver

ELECTRICAL

One diesel generator, 60 kw, 450 volts, AC

4 - kw motor generator set

DC power panel

Test switchboard AC-DC

Lighting panel

Supply panel for running lights

Batteries

Transformers
