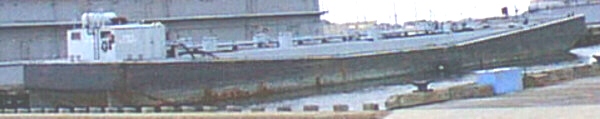

YOGN - Liquid Cargo Barge
YOGN is a non-self-propelled liquid cargo barge with nominal dimensions of 165 foot in length and 40 foot beam designed to carry gasoline or diesel oil in short coast-wise service in providing logistic support to the fleet. The craft has eight cargo tanks with a total liquid capacity of 8500 barrels. One diesel driven pump is provided for use in transferring its cargo. There are no personnel accommodations provided.
PRINCIPAL CHARACTERISTICS
Length overall, molded |
165' |
Breadth, molded |
40' |
Depth molded to deck at side |
10'-6" |
Draft, full load, (approx) |
8'-3" |
Displacement, full load (approx) |
1362 tons |
Liquid capacities:
Diesel Oil (for diesel engine) |
225 gals |
Fresh Water (for diesel engine) |
170 gals |
Cargo (8500 BBLS)(of gasoline cargo) |
990 tons |
ADMINISTRATIVE DATA
Class - YOGN 106
Specifications - Military Specification MIL-8-16360A dated 24 July 1952 (Barges, liquid cargo non-self-propelled)
Standards
ABS
U.S. Coast Guard
PRINCIPAL MACHINERY and EQUIPMENT
Diesel cargo pump (1000 GPM at total head of 333 ft. )
Anchor - 500 lb
Anchor capstan - two
Anchor cable
Tow bridle
Tow line - stowed on reel
Mooring line - stowed on reel
STRUCTURAL
Hull - Steel
PRINCIPAL COMPARTMENTS
Eight cargo tanks (4 port, 4 starboard)
Diesel engine (pump) deckhouse
Skegs - two
Deck fittings
8" bits
36" cleats
roller chocks
SAFETY
Fire - Two portable 15 lb fire extinguishers
Anchor - One 500 lb lightweight (LWT) anchor, one portable davit, two hand operated capstans (one fwd, one aft)
Drainage Ballasting - ballasting and deballasting is serviced by portable pump from outside sources.
AUXILIARY MACHINERY and FLUID SYSTEMS
Fuel oil - 225 gallon diesel oil tank for diesel cargo pump
Lube oil - 10 gallon storage tank for diesel cargo pump
Fresh water - 30 gallon storage tank for make up of fresh water for diesel engine cooling.
Ventilation - Natural ventilation in deck house for diesel engine combustion air.
Liquid cargo - One diesel engine driven, vertical deep-well type, self priming cargo pump (1000 GPM at total head of 333 ft) transfers liquid cargo.
ELECTRICAL
Lighting - only lighting provided is that for portable navigating lights, battery operated (6 volt storage battery)
MISCELLANEOUS
Lifting gear - four portable booms, each capable of handling working load of 2000 lbs provided for handling cargo hose. Manual hoisting with rotation by vang lines.
