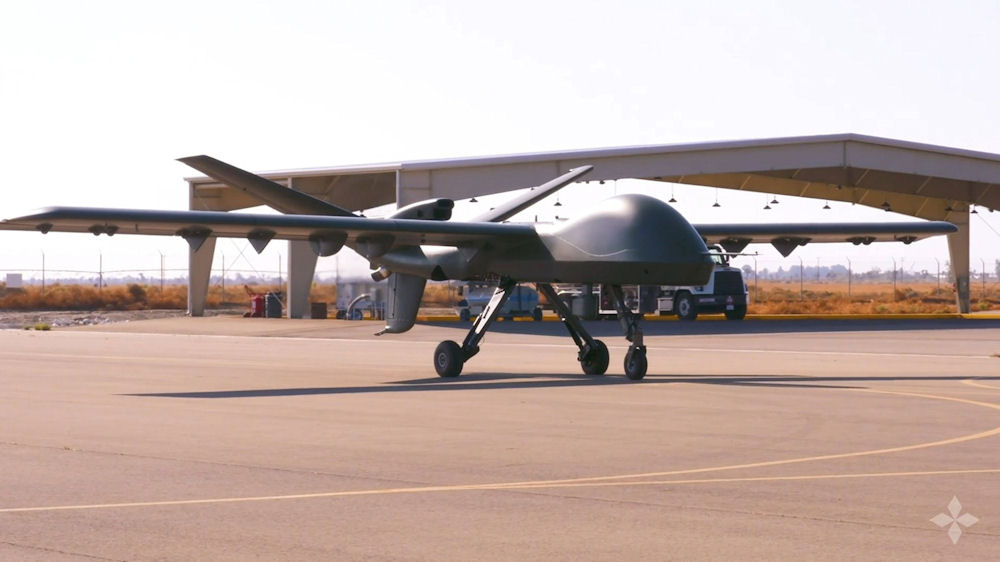

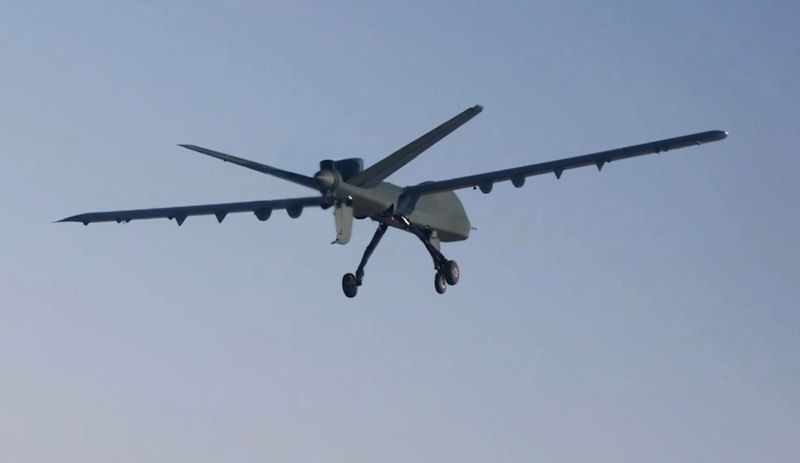

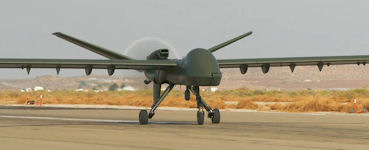

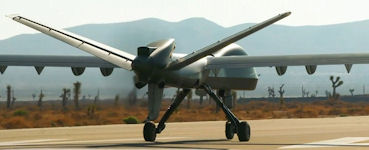

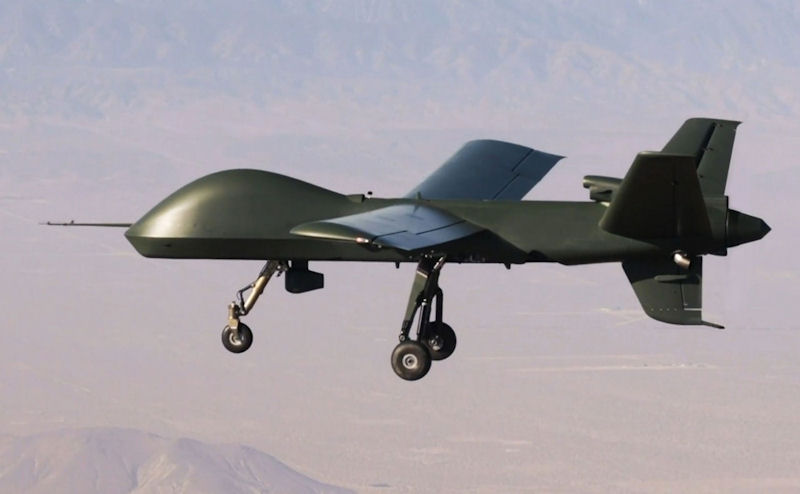

Mojave - STOL Armed Overwatch UAS

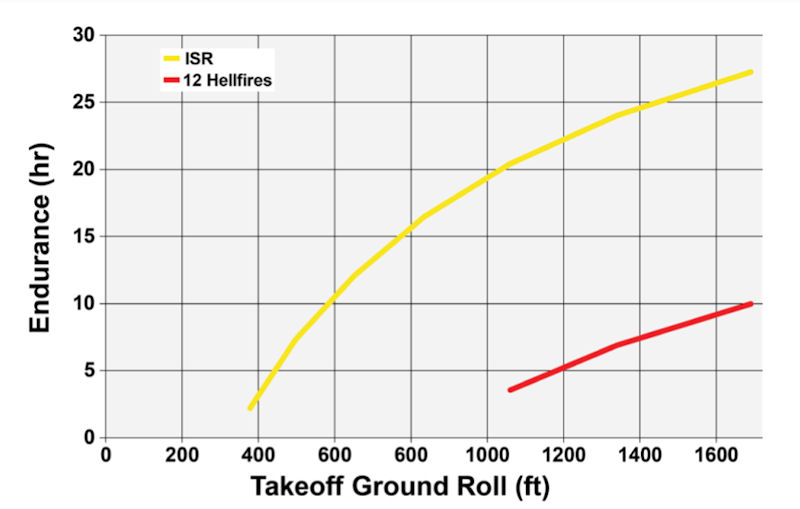

Mojave features expeditionary Short-Takeoff and Landing (STOL) from Semi-improved Runways with double the firepower. Mojave joins the Predator-series family of UAS, bringing forward a unique set of capabilities ideal for armed overwatch, attack, and armed reconnaissance missions. Its avionics and flight control systems are built upon the designs and systems of the MQ-9 Reaper and MQ-1C Gray Eagle-Extended Range (GE-ER), parts of a fleet boasting over 7 million hours of operation, much of them in combat. Mojave also leverages U.S. Army investments in open architecture, autonomy, and machine learning processing capabilities. It is the next step in UAS evolution, delivering unprecedented expeditionary short-takeoff and landing (STOL) performance, C-130 airlift transportability and a significant increase in firepower -- without compromising any of the significant advantages in endurance, persistence, or aircrew safety over manned aircraft. Simply put, there is no aircrew on board in any danger from enemy.

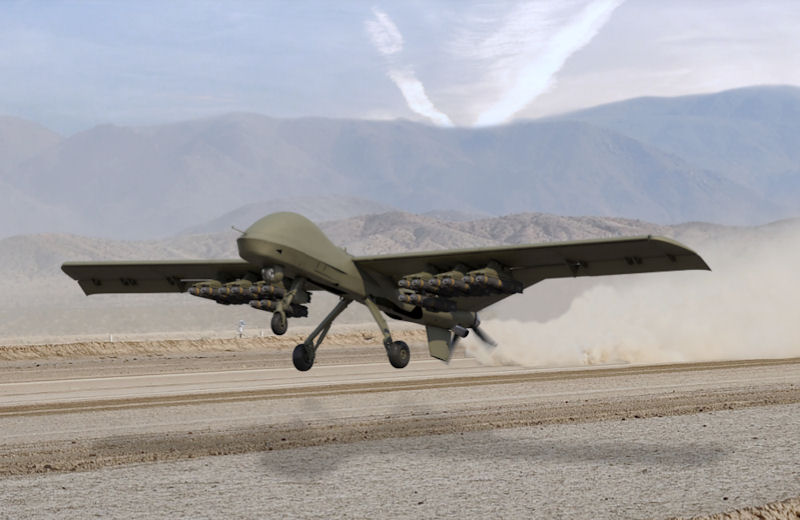

Mojave provides options for forward-basing operations without the need for typical paved runways or infrastructure. It can takeoff and land from countless remote semi-improved surfaces while under pilot control via a traditional ground control station or scalable command and control laptop solution. STOL capability increases the number of employment options, potentially including aircraft carrier-based options, unlocking naval missions and sea-based support for special operations forces.

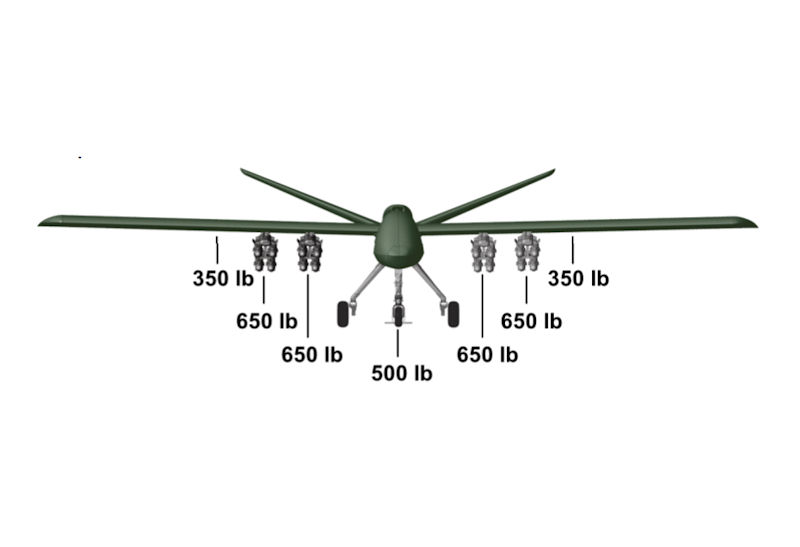

Not only can Mojave quickly land, re-arm and re-launch from austere sites, located in close proximity to non-permissive environments, it can carry double the payload of earlier-model aircraft. Its increased wing surface area allows it to carry up to 3,600 lb. (1,633 kg), which totals as many as 16 AGM-114 Hellfire or equivalent missiles. Mojave can also be equipped with a sensor suite including EO/IR, Synthetic Aperture Radar/Ground Moving Target Indicator (SAR/GMTI) and Signal Intelligence (SIGINT) to support land or maritime missions.

To further extend the versatility of its MQ-9B line of Remotely Piloted Aircraft, General Atomics Aeronautical Systems, Inc. (GA-ASI) announced 10 May 2022 that it will begin developing a short takeoff and landing (STOL)-capable MQ-9B aircraft, which includes the SkyGuardian® and SeaGuardian® models. GA-ASI is taking on this revolutionary engineering effort to meet an evolving operational environment in contested expeditionary environments.

GA-ASI began STOL development in 2017 as part of its Mojave initiative. STOL capability was initially flown on a modified Gray Eagle Extended Range platform in 2021, but now the company will begin developing STOL on the MQ-9B, a platform already selected by the Royal Air Force, the Belgium Ministry of Defence and the Japan Coast Guard. MQ-9B STOL will combine GA-ASI’s proven long-endurance, highly reliable UAS products with the versatility to execute missions in more austere locations, opening the operational envelope for commanders across all Services and geographic locations.

The MQ-9B STOL configuration consists of an optional wing and tail kit that can be installed in less than a day. The core aircraft and its sub-systems remain the same. Operators can perform the modification in a hangar or on a flight line, delivering a capability that otherwise would require the purchase of a whole new aircraft.

MQ-9B STOL, which is part of GA-ASI’s Mojave series of unmanned aircraft, also presents an opportunity for future operations aboard an aircraft carrier or big-deck amphibious assault ship. The wings fold so that MQ-9B STOL could be parked on the deck or in the hangar bay, just like other naval aircraft. When it’s time to launch, operators will start the aircraft, unfold the wings, and take off over the bow without the need for catapults. GA-ASI believes the U.S. Navy and Marine Corps will take note of this innovation as it opens the door to persistent and long-range Intelligence, Surveillance and Reconnaissance (ISR) operations over blue water.

General Atomics Aeronautical Systems, Inc. (GA-ASI) logged another aviation milestone on 12 November 2024, when its Gray Eagle STOL aircraft took off from a South Korean warship and landed at a ground base – the first-ever such mission for an aircraft of this type. Working with GA-ASI’s in-country partner, Hanwha Aerospace, Gray Eagle STOL launched from the South Korean navy’s amphibious landing ship Dokdo underway at sea off the coast of Pohang, South Korea. The Unmanned Aircraft System (UAS) then flew to Pohang Navy Airfield and landed normally.

Gray Eagle STOL – which stands for short takeoff and landing – is the only medium-altitude, long-endurance aircraft of its kind with the ability to operate from large-deck warships such as amphibious ships and aircraft carriers, as well as short and unimproved fields on land. The test with the South Korean military further validates the aircraft’s capability and versatility. “We applaud the South Korean navy for its foresight in examining the unique capability of GE STOL for its fleet. This demonstration illustrates the ability of the GE STOL to safely operate on many types of aircraft-capable ships, which opens myriad new ways our allies can use this UAS to support multi-domain naval operations,” said GA-ASI CEO Linden Blue.

Hanwha Aerospace is engaged with General Atomics to support national defense with proven, state-of-the-art technology suited for a multi-domain warfare environment, contributing to global security alongside allied nations in response to rapidly growing threats. “The demonstration is a crucial step in verifying how the GE STOL can contribute to defense capabilities, and I am honored to witness this alongside the Republic of Korea Navy, to whom I extend my deepest gratitude for conducting the test,” said Hanwha Aerospace CEO and President Jae-il Son. “Hanwha is fully committed to making bold investments, fostering collaboration, and providing steadfast support in the Unmanned Aerial Vehicle (UAV) business.”

The Ministry of National Defense for the Republic of Korea is initially evaluating GE STOL for its ability to meet its emerging military requirements. South Korean navy, army and other officials were asked to evaluate Gray Eagle STOL and supported the test. “The demo highlighted the versatility of STOL aboard a warship, in the Dokdo, designed not for fixed-wing aircraft but solely for helicopters. Gray Eagle STOL’s flight proves that navies can add significant new capability without costly major modifications to their existing warships,” said South Korean Chief of Naval Operations, Admiral Yang Yong-mo.

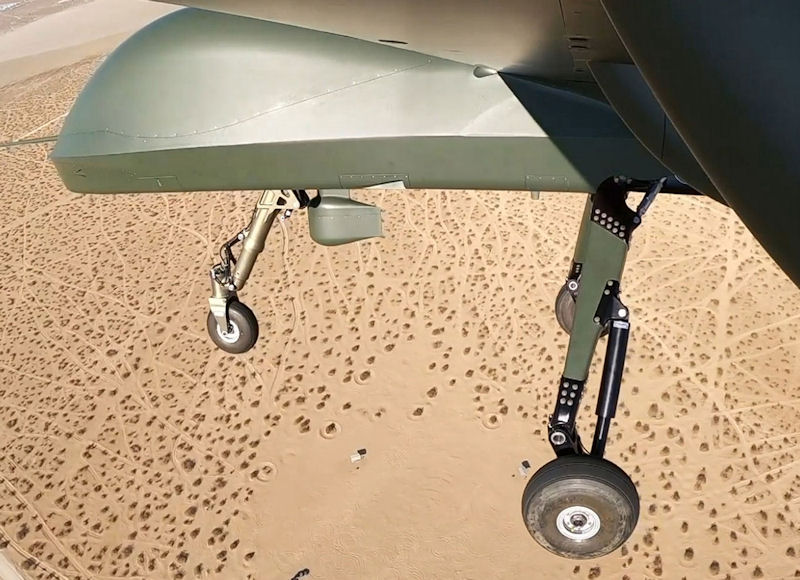

Gray Eagle STOL is highly common with the classic Gray Eagle aircraft, substituting a different engine, wings, control surfaces and landing gear. Gray Eagle STOL is General Atomics’ name for the production variant of the historic aircraft demonstrator known as Mojave.

In November 2023, GA-ASI and Mojave performed a demonstration of STOL takeoff and return landing aboard an aircraft carrier in an event with the UK Royal Navy’s HMS Prince of Wales, which is smaller than a typical U.S. aircraft carrier at 932 feet long (284m) and 240 feet wide (73m). The Dokdo class is considerably smaller than the Prince of Wales, only 653 feet long (199m) and 102 feet wide (31m).

GA-ASI's history in UAS technology is second to none. The company is continually pushing technologies to adapt to emerging threats. Predator-series UAS have evolved to become not only a critical provider of Intelligence, Surveillance and Reconnaissance (ISR), but also provide kinetic and non-kinetic capabilities to neutralize threats and achieve overmatch. The Mojave project brings together proven technologies for employment, sustainment and production, and capability to achieve industry-leading reliability, range and endurance.
