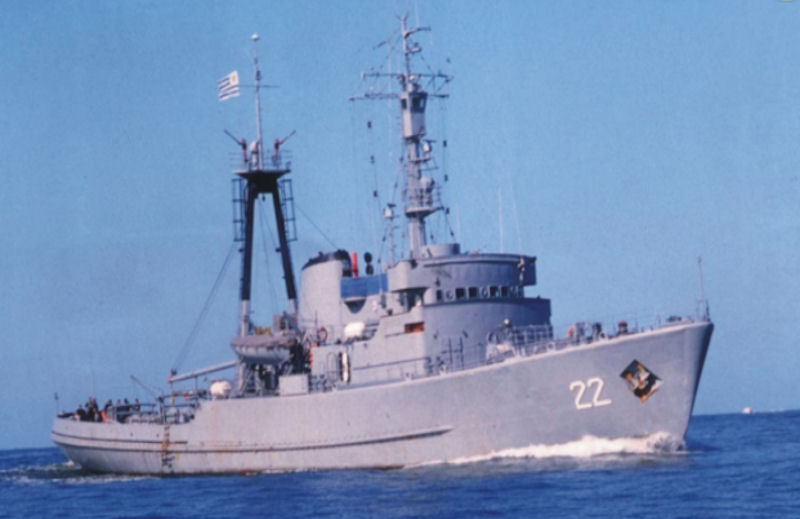

Oyarvide (Helgoland class)
survey ship
The ROU 22 "OYARVIDE" is defined as a Scientific Ship (Decree 260/98), and its mission is to obtain oceanographic and hydrographic information, in order to support the Navy in the fulfillment of its mission. Ex-German; also can serve as harbor icebreaker and a tug.
| DATE OF SERVICE IN SERVICE | 8/3/1966 |
| DESIGN CALCULATION | 4,10 m. |
| MAXIMUM STAGE | 4,80 m. |
| ESLORA | 68 m. |
| LENGTH BETWEEN PERPENDICULAR | 62 m. |
| FLOATING LINE | 60 m. |
| MANGO | 12,74 m. |
| MANGO, CUADERNAS (construction) | 11,89 m |
| POINT UP TO MAIN COVER | 5,90 m |
| HEIGHT OF THE BAND TO CASTLE COVER | 8.15 m. |
| ARCH | 1186 gross registered tons or 409 net registered tons |
| SHAFT SHIFT | 1194 tons. |
| DISPLACEMENT IN MINIMUM OPERATING BALLAST | 1303,92 tons. |
| DISPLACEMENT IN OPERATING AVERAGE LASTRE | 1453,91 tons. |
| DISPLACEMENT IN NORMAL BALLAST | 1619,50 tons. |
| DEAD WEIGHT | 401,73 tons. |
| 3 PATTERN TYPE ANCHORS |
|
| FUEL STORAGE TANKS | 348,757 liters. |
| FUEL SERVICE TANKS | 13,630 liters. |
| OIL STORAGE TANKS | 17,090 liters. |
| POTABLE WATER TANKS | 73.710 liters. (The vessel has a water treatment plant) |
| BALLAST TANKS | 137,000 liters. |
| DIESEL PROPULSION - ELECTRICITY | Four continuous power groupings which are driven by a supercharged and air cooled 12-cylinder MWM diesel engine, from 970 HP to 1250 RPM. The onboard network is supplied with four 250 kva generators, from 305 HP to 1200 RPM. Power of installation of drive of diesel - electrical propulsion: 3300 HP in the axis. |
| Crew | 34 |
| Number | Name | Year | Homeport | Notes |
| 22 | Oyarvide | 1966/98 |
|
