D-80 535-mm self-propelled artillery

In the early 1960s, the Artillery plant OKB #9 drafted a gun-launcher of special power, which by its characteristics were comparable with the requirements of that period, under the designation A-80. Under this theme were worked out three options for guns with various modifications. The first was a wheeled self-propelled unit, as its base chassis which was supposed to use an experienced tractor ZIL-135L with an automatic transmission (which at that time also planned for the base chassis part for mounting PU 2P16 PTRC 2d6 "Luna"), in the unit with two-axle semitrailer active. The Draft wheeled ACS successfully passed the stage of the protection in GRAU and the Minister of Defense Industry of the USSR S.Zverev

At the time of the development of the system D-80 was a serious competitor with the 2d6 "Luna" FROG: for example, DB-9 guidance system projectile and correction was developed, which allowed to achieve similar accuracy. However, with the advent of modern PTRC 9K79 point, further development of all A-80 ground-based options lost sense and work on them were stopped.

As weapons rifled gun-launcher A-80 caliber 535mm was designed to fire rocket-assisted projectile weighing 905 kg, the calculated range was 60 km. The draft of this machine gun was placed not on the main landing gear, and the active and semi-trailer shooting was carried out with mortar base plate. Above the cab of the vehicle had a special rotating cassette for ammunition with four charges.

The 535-mm self-propelled artillery / missile launcher with internal designation CB "BAP" was design to fire rocket-assisted projectiles. It was initiated at artillery factory #9 (Sverdlovsk) in 1963, Chief Designer - F.F.Petrov. The development also included NII-1, NII-24, NII-125, NII-13, NII-61 and others. DB-9 operating systems made models D-80 at 1:10 tracked and wheeled chassis. Layouts are used to the stage GRAU project and the Minister of Defense Industry of the USSR. When creating the system, thoguht was given to the possibility of weapons of migration on Navy ships.

Preliminary design installation DB-9 reviewed May 10, 1965. In October 1968 the plant "Barricades" (Volgograd) has been given an order for the production of pipes and breech to D-80. At the end of 1968, all work on the D-80 was stopped. Construction of real samples was not conducted. For tests at the site in the village of Krasnaya created a sample of the cannon. The project was redesigned and received a code D-80C, but was also rejected. In September 1969, the OKB-9 proposed project D-80-2 with loading breech, under the scheme, which was close to the 240-mm mortar M-240.

Crew3 people
Installation length12570 mm
installation width3250 mm
Installation height3680 mm
Weight35 tons
maximum speed on the highway60 km / h

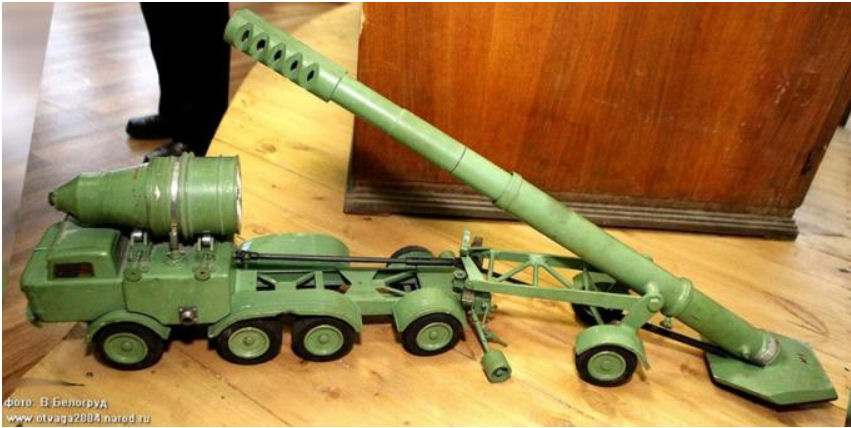

E-80 - Rifled gun with a muzzle brake mounted on the chassis ZIL-135L The breech of the gun barrel rested on the ground through the base plate on the mortar type. The placement of a rotating cabin chassis cartridge store at 4 shots ARS to muzzle charging. The same chassis was used in the self-propelled launcher D-110K OTP "Onega".

Trunk installations D-80 had a recoil device with a long back and a muzzle brake with an efficiency of 58%. Cradle D-80 rested against the pan, dropped to the ground. The loading was done with a special muzzle loader device. Unloading - the same mechanism. The loading was done separately: first round, and then lifting charge. They fired projectiles (missiles), which had finished rifling on the body. Vertical barrel pointing produces hydraulic device is powered by the PTO from the chassis engine. In addition, it has been provided and the manual transmission. The mechanism of horizontal guidance sector type. The sight of the mechanical type, taken from the 122 mm howitzer D-30.

With the installation of the complex D-80 planne d transport and loading vehicle in the same chassis "object 429". Ammunition capacity shots - 11.

Crew3 people
Installation length12570 mm
installation width3250 mm
Installation height3680 mm
Weight35 tons
maximum speed on the highway60 km / h

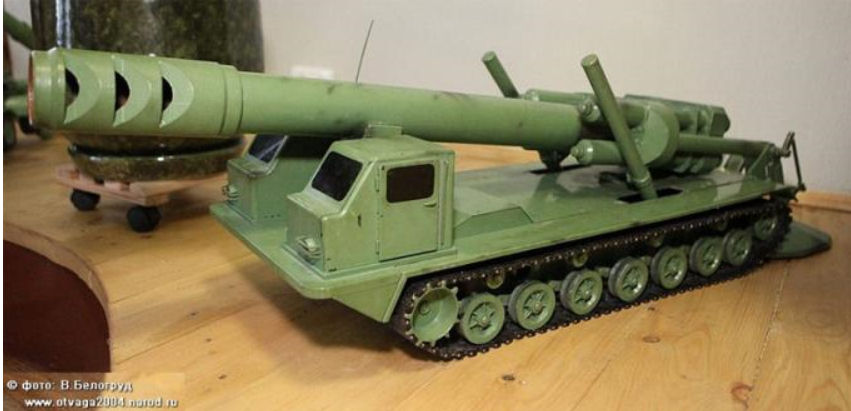

D-80C Installation crawler "Object 429" (optional tractor MT-T) development of the Kharkov Heavy Engineering Plant. The plant used breech-loading rifled gun with a muzzle brake. The same chassis was used in the self-propelled launcher D-110 OTR "Onega".

Trunk installations D-80 had a recoil device with a long back and a muzzle brake with an efficiency of 58%. Cradle D-80 rested against the pan, dropped to the ground. The loading was done with a special muzzle loader device. Unloading - the same mechanism. The loading was done separately: first round, and then lifting charge. They fired projectiles (missiles), which had finished rifling on the body. Vertical barrel pointing produces hydraulic device is powered by the PTO from the chassis engine. In addition, it has been provided and the manual transmission. The mechanism of horizontal guidance sector type. The sight of the mechanical type, taken from the 122 mm howitzer D-30.

With the installation of the complex D-80 planned transport and loading vehicle in the same chassis "object 429". Ammunition capacity shots - 11.

D-80C Installation crawler "Object 429" (optional tractor MT-T) development of the Kharkov Heavy Engineering Plant. The plant used breech-loading rifled gun with a muzzle brake. The same chassis was used in the self-propelled launcher D-110 OTR "Onega".

Crew3-4 people.
Angle charging systemfrom -7 to -10 degrees
barrel weight3350 kg
Weight of a 50 percent fueling and without calculation15 tons
Weight warhead420 kg
Shooting weight 930 kg.
Muzzle velocity of the projectile450 m / s
Firing range5 - 65 km
TTX installation tools D-80
Caliber535 mm
length of the barrel with muzzle brake8045 mm / 15 caliber
Number of grooves64
The steepness of the cut15 caliber
The angles vertical guidancefrom +50 to +70 degrees
Corners horizontal guidanceSector 8
Normal shell weight 905 kg
Mass of propellant 144 kg
SRM fuel weight286 kg
Weight warhead450 kg
Range 5-13 km
initial velocity of the projectile 250/330/500 m / s
pressure in the bore maximum 1025 kg / cm
Range of shooting60 km (by TTZ)
initial projectile speedup to 500 m / s
