Unmanned Aerial Vehicles - Operative
Bezpilotniy Letayuschiy Apparat - BPLA

Name	Appointment	Recon radius	Maximum flight height	Flight duration	Target load	Notes

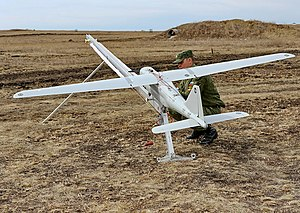

"Orlan-10"	multi-purpose UAV (reconnaissance, radio signal repeater)	to 120 km	6000 m	to 6 hours	optical-electronic target load (camera of the visible or IR range; photo camera); relay equipment for other UAVs of the complex	NSU allows simultaneous control of 4 UAVs. Any of the devices can be used as a repeater for communication with other UAVs. used in ATO and OOS

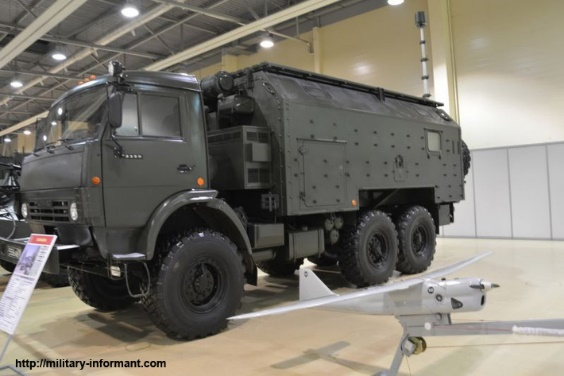

"Orlan-10E"	multi-purpose UAV (reconnaissance UAV, REB UAV, radio signal repeater)	to 120 km	6000 m	to 6 hours	optical-electronic target load (camera of the visible or IR range; photo camera); relay equipment for other UAVs of the complex; REB equipment	UAVs of this modification are part of the RB-341B "Layer-3" electronic warfare complex and have an additional target load - equipment that simulates the operation of cellular base stations. used in ATO and OOS

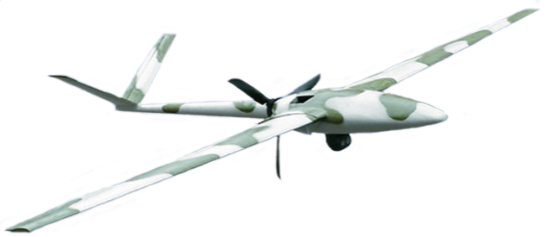

BLA-08 "Typchak"	multi-purpose UAV (reconnaissance UAV, REB UAV, radio signal repeater)	to 120 km	4000 m	to 8 hours	target load - up to 25 kg. Optical-electronic target load (dual-spectral camera; gyro-stabilized suspension with cameras of the visible and IR ranges and a laser rangefinder); relay equipment; REB equipment	used in ATO and OOS

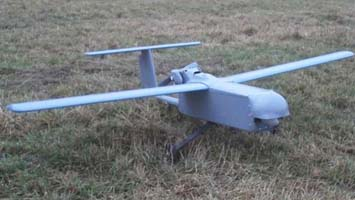

"Orlan-30"	multi-purpose UAV (reconnaissance UAV, REB UAV, radio signal repeater)	to 200 km	4500 m	to 6 hours	Optical-electronic target load (photo camera; gyro-stabilized suspension with cameras of visible and IR ranges); relay equipment	NSU allows simultaneous control of 4 UAVs. Any of the devices can be used as a repeater for communication with other UAVs. used in ATO and OOS
"Outpost"	exploratory	to 250 km	7000 m	to 6 hours	target load - up to 120 kg. Optical-electronic target load (gyro-stabilized suspension with cameras of the visible and IR ranges and a laser rangefinder); radar	an analogue of the Searcher II UAV, manufactured under the license of the Israeli company IAI. used in ATO and OOS

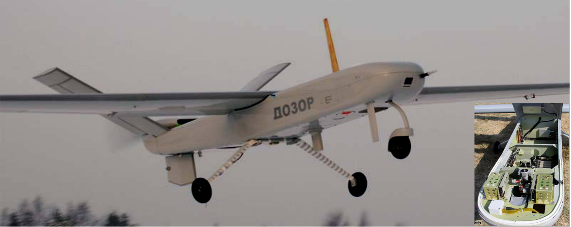

"Dozor-100"	operative exploratory	to 250 km	5000 m	to 10 hours	Optical-electronic target load (photo camera; gyro-stabilized suspension with cameras of the visible and IR ranges and a laser rangefinder); radar	management is carried out by satellite communication channels
