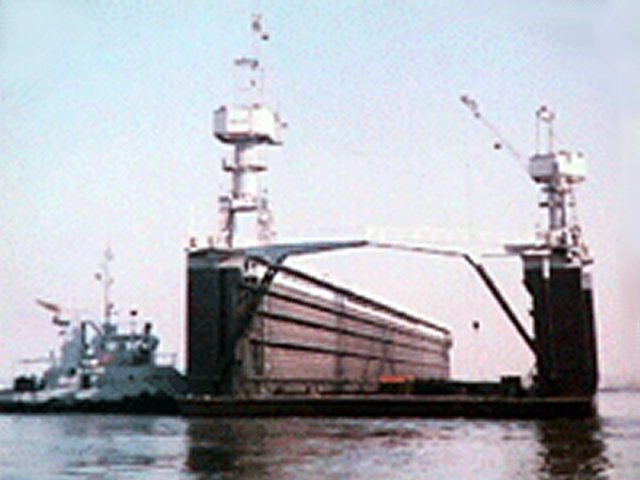

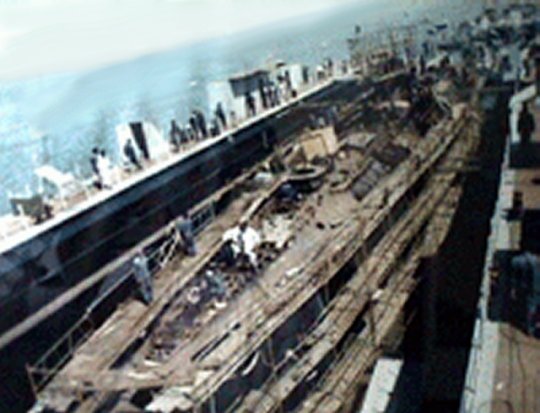

The dock is constructed over 10 independent flat bottomed pontoons bolted to the two wing walls which are of continuous structure. It is fitted with tow gantry cranes, one on each wing wall and other equipment like evacuation pumps, generators, compressors, fire fighting system, boiler, AC Plants, keel and bilge blocks, capstan, bollard and complete workshop appliances. The smallest one that can be offered for commercial construction is for a 1000 tons lifting capacity.
|Length Overall||167 meters|
|Breadth Overall||29 meters|
|Depth Overall||14 meters|
|Number of pontoons||10|
|Dimension of each pontoon||29x15x2.5|
|Breadth of each wing wall||3.5 meters|
