Iranian Radars [Other than Air Defense]

Tariq

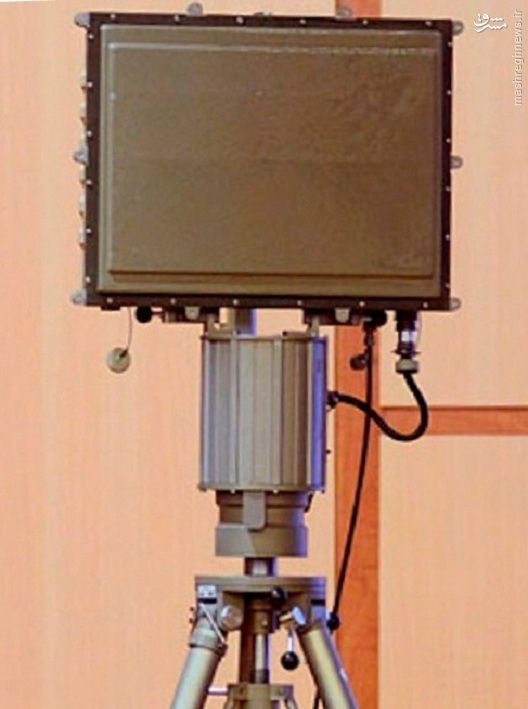

Tariq radar systemThis radar was designed and built by people to create a portable land-based radar. The radar detection range for humans is 4.5 kilometers, 8 kilometers for cars and 6 to 8 kilometers for helicopters. Its antenna is microspheric and the maximum power for the transmitter is only 10 watts. The radar works on the X band, and the track speed range is 3 to 200 km / hr (83 cm / s) (up to 55.6 m / s). Tariq has the ability to connect to the country's radar network and can be remotely controlled. Tariq can also be used in fire control systems. The total mass of the radar consists of an antenna, a trapezium and a processor system of less than 30 kilograms, which can carry one to two people.

Basir 110

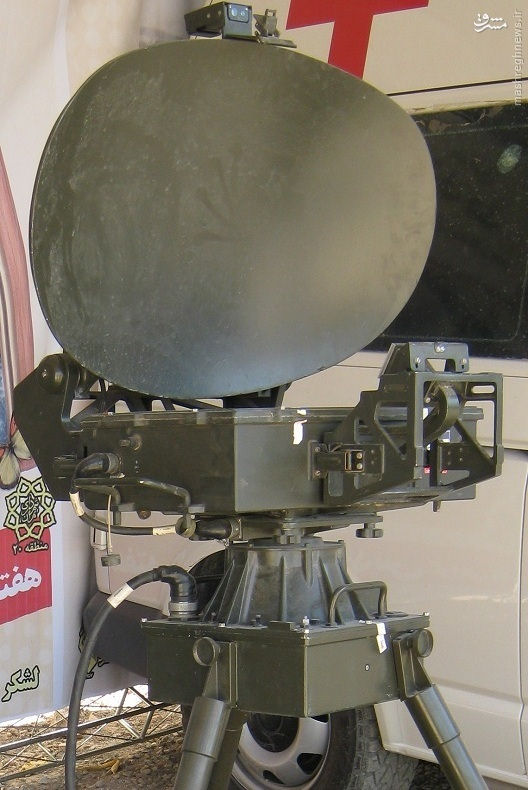

Basir 110 radar systemThe radar is also used for land surveillance and border monitoring missions. With the help of data generated by this radar, the work of the managed area is monitored and possible monitoring of the system, and even types of targets are detected. This radar has a variety of types, including specimens B, D, P and PS. The Basir Radar-110 is also equipped with the Global Positioning System and is capable of detecting the speed of the targets. Networking and remote control, semiconductor transmitter and receiver, console and computer processing, and X-band functionality are among other base radar capabilities.

The X band includes a wavelength of 2.5 to 4 centimeters and a frequency of 8 to 12 GHz and, due to its electromagnetic characteristics, is capable of detecting small targets, and the radars themselves are usually light and small. Basir reports that for this reason, it is capable of being carried by people and vehicles, and dozens of devices are used by the police to monitor the borders. Examples of Basir are also installed on light and medium-sized tactical vehicles, and therefore have a very high mobility. The Base Detection Range is 6 km for a pedestrian, 12 km for heavy vehicles, 20 for heavy vehicles and 25 km for helicopters.

GSR-110

 GSR-110 radar systemThis 25-kilogram radar is also a short-range radar with a major ground-based mission. Its detection range is for cars up to 5 and for heavy vehicles up to 6.4 km. The radar antenna has the ability to rotate 360 degrees horizontally and the target speed can be detected between 3 and 100 kilometers per hour. Total radar mass with 30kg equipment.

Other features include electronic combat capability, low tracking probability, pulse doppler processing filter, high mobility, fast preparation, solid state transmitter, microstrip antenna, manual and automatic target detection and tracking, digital capability The wavelength and pulse compression capability, complete remote control capability, the ability to monitor different areas of the covered area with a selectable axis and width, and power consumption of less than 30 watts.

Horizon

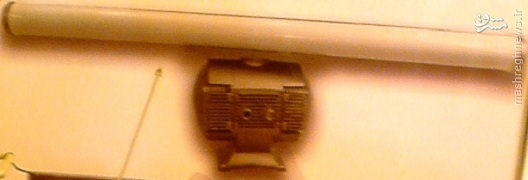

Horizon radar systemThe Horizon radar was developed for marine monitoring as a coastal radar. The radar has the ability to network with radar and defense systems and connect to navigation assistance systems such as Speed Log and GPS, and the ability to trace 100 marine targets is one of the most important features of the radar horizon in this category.

One of the horizontal radar specimens in the X band has some of its functional characteristics, including a power output of 25 kW, an antenna speed of 24 and 42 rpm, 360 degrees, and a nominal range of 96 nautical miles, equivalent to 177.6 km. Examples of these marine radars are capable of being installed on floats and, with their high ability to discover the upper target, have greatly increased the capabilities of our martial buoys in terms of location around them.

Airport Approach radar

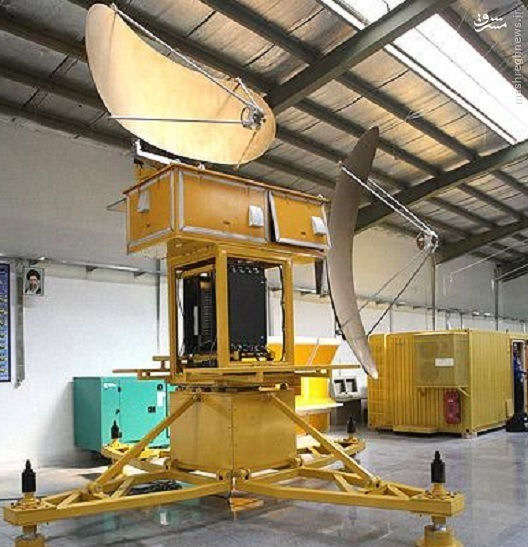

Airport Approach radar systemThe Near airport radar operates on aircraft approaching an airport as they arrive at the airport after entering the area under the control of the relevant center and is guided for safe landing. The main load on the assessment of the condition of planes in this process is the radar approaching the airport, which is one of the main airport systems. A radar built for this purpose is capable of controlling and controlling the aircraft at a distance of 30 km from the airport and guiding it to the moment it is seated and parked by the aircraft.

Evening

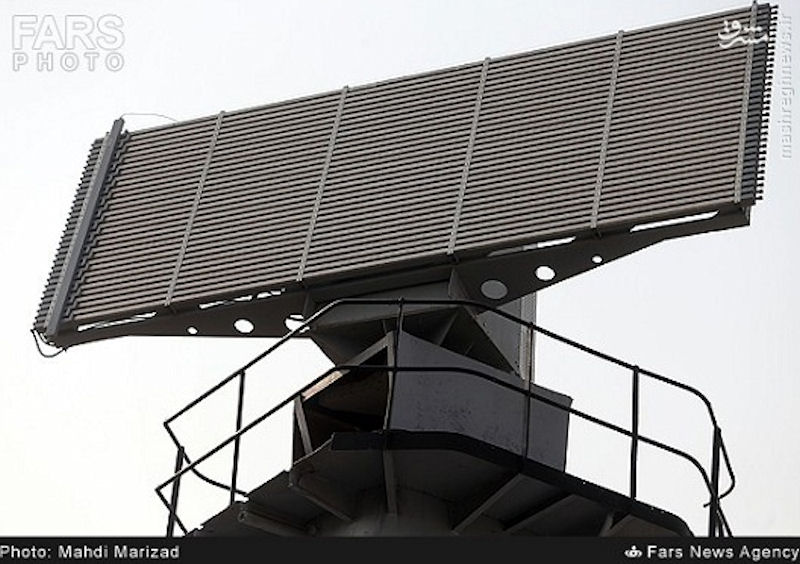

Evening radar systemThe digital "evening" radar operating on the S-band and in addition to deploying on the coastal bases, eliminates the major needs of the floating units of the country in the category of aircraft and above in the area of early warning of air traffic. The S band is very suitable for working in marine environments and weather conditions, and has a wavelength of between 8 and 15 centimeters. In addition, due to the wavelength of the band, the era's radar has the ability to discover the secret airspace. The radar uses a flat antenna that is better in terms of performance specifications, and today most advanced radars use such antennas.

The "evening" radar can track targets in 3D, ie, distance, angle and altitude. The radar has a tracking capability of 100 targets simultaneously and is designed for radar cross-sectional objects (RCS) of 4 square meters, about 200 kilometers. Due to the appearance of the radar of the era, the directional change in the direction of the waves is carried out only in the vertical direction based on phase change, since the radar has the ability to rotate in the horizontal plane, which is used for scanning in this direction.

Due to the use of advanced technologies and digital processors, the radar subsystems have a small amount of space and this advantage in combat vehicles, which is of great importance to the use of the space available, is worth a lot. In addition, the radar has a low power consumption and is said to have the ability to track surface targets.

meteorological radar

The meteorological radar, the first state-of-the-art meteorological radar developed by Iran, is used to monitor the changes in cloud conditions, movement, density, and some other features in a remarkable range.

The radar works on the X-band, and its range is 200 kilometers, and estimates the density of the clouds and their probability of being pre-grounded based on the information received from the clouds. During the year, researchers have built this radar, which has been carefully selected from some other similar examples and has led to a lack of dependence on other countries.

Spacecraft Observation Radar

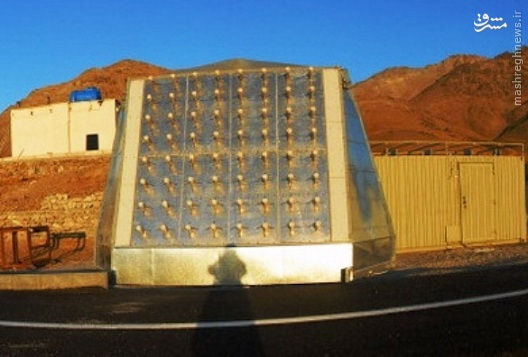

Spacecraft Observation radar systemImam Sadiq Space Observatory, which is responsible for detecting and tracking radar, electrospray and radio objects of the body, is using a phased array radar. The radar has 3 faces, with radar elements only visible on one side and 64 in the published images. In this radar designed to track objects at high altitudes, due to the constant nature of the antennas, it is usually used to scan the desired space in the horizontal and vertical direction of the wave of electronic rotation. If the other two radar elements are also equipped with an antenna array, it will be possible to cover 360 of the surrounding area.
