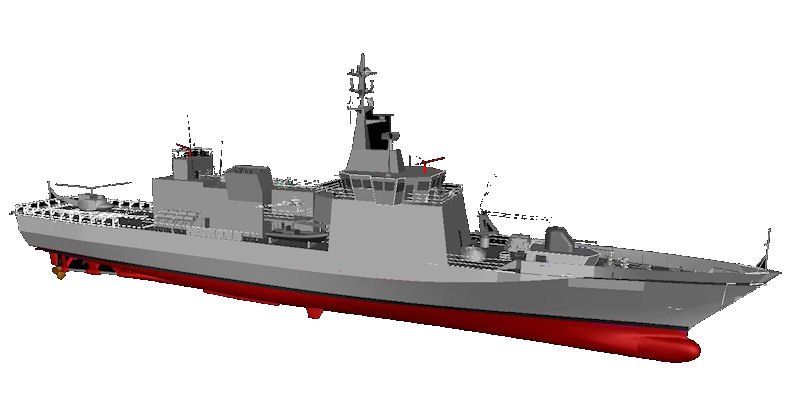

Coast Guard Search & Rescue Vessel

TCG CGSR

Main Dimensions
Length overall88.6 meters / 288 feet
Length waterline80.0
Beam overall12.2
draft 3.6
Displacement1700 tons
Maximum Speed22 knots
Economical Speed15 knots
Range 3000 Nm @ 15 Knots
Endurance 14 days
Platform Systems
Main Propulsion System
  • 2 x 5200 kW
  • 2 x Shafts, 2 x CP Propeller
  • Bow Thruster (300 kW)
  • Fin stabilizer
    • Generator 2 x 900 kW, 380 V AC 50 Hz
    Emergency Generator 1 x 212 kW, 380 V AC 50 Hz
    Weapons
  • Gun 40 mm, 40L70 Oto Melara
  • Machine Gun 2 x 12,7 mm
    • Sensors
  • 2D Search Radar
  • Electro Optical Director
    • Combat Management System (CMS)Advanced software for vessels functions/operations
    Classification NotationRINAMIL: NC+ second line ship-patrol vessel, unrestricted navigation, SEA-KEEP, STAR-HULL, AVM-DPS(V), AUT-PORT, AUT-IAS,MON-SHAFT, HELICOPTER LA, MARPOL I, MARPOL IV, MARPOL V, MARPOL VI”
    Helicopter Operations
  • Landing Platform for a general purpose helicopter (up to 10 tons)
  • Day and night landing & takeoff capability
  • Telescopic Hangar
    • Replenishment Systems
  • JP5 Helicopter Refueling System
  • Replenishment at Sea (RAS) System (Starboard-Portside)
    • Miscellaneous
  • External Fire Fighting System (2x1200m3/hour)
  • Prewetting System
  • Pollution Control and Prevention Systems
  • 2 x RHIB Boat
