LHD - Amphibious Assault Ship
Havuzlu Çikarma Gemisi / Amfibi Taaruz Gemisi

Ship List
Name # Builder Laid
Down		 Launch Comm Decomm Notes
L400 TCG Anadolu Sedef
Shipbuilding		 07 Feb
2015		 30 Apr
2019		 10 Apr
2023
L401 TCG Trakya Sedef
Shipbuilding
202?
202?
202?



Many details are initial estimates.

Displacement27,436 tons 28,000 tons
Length 231 meters / 750 feet
225 meters
200-230 meters
runway Length 180 meters
or
240 meters long by 30 meters wide
12 degrees inclined ramp
Width 32 meters 30 or 35-40 meters
Propulsion Electric Drive
2 x 11 MW SIEMENS eSIPOD
5 x 8000Kw MAN 16V32 / 40 Diesel Generator Sets
2 x 1500Kw Head Propeller
Maximum speed 21-22 knots
Range 9,000 miles (with 16 knots of economic speed)
Endurance30 days
Combat Systems
  • GENESIS ADVENT Combat Management System
  • Link 11/16/22 / JRE / VMF
  • 1x 3D SMART-S Search Radar
  • 2x LPI Radar
  • 2x Cruising Radar
  • 1x Aircraft Detection and Control Radar
  • 1x Precision Approach Radar
  • 2x Electro Optical Search System (DAYREKTSR)
  • 5x 25mm Stabilized Ball System (ASELSAN STOP)
  • 2x Melee Defense System (Phalanx CIWS)
  • Electronic Warfare Assault and Support System
  • CHAFF / Infrared Decoy Shot System
  • Torpedo Defense System
  • IFF System
  • Laser Warning System
  • HF / V / UHF Transceiver
  • X / KU / UHF Band Satellite Combat Systems
  • RAM Guided Bullet Infrastructure (Optional to be installed)
    • Medical FacilitiesHospital and Infirmary with Triage Areas, 2 Operating Rooms, Intensive Care and Emergency Care Resuscitation Units, Quarantine / Infection Room, Laboratory, Dental Treatment Room, Pharmacy
    Armament
  • 3 x Aselsan40 mm cannon
  • 2 x 20 mm system
    or
  • 4 x 20 mm Phalanx CIWS cannon
  • 4 x 12.7 mm Gatling gun
  • missile defense system Can be installed in the future
    • Aircraft
  • 50 to 110 x Bayraktar TB3 UAV
  • 50 x Kizilelma MIUS - UCAV

    or
  • 20 x S-400B Seahawk ASW helicopters

    or
  • 8 x helicopters [Sea King and Chinook]
  • 12 x F-35B JSF aircraft

    or
  • 6 x F-35B JSF aircraft
  • 4 x T-129 ATAK ?
  • 8 x As532 or CH-47F
  • 2 x S-70B Seahawk
  • 2 x Anka or Bayraktar UAV
    • Amphibian operations
  • 30 amphibious tank and 30 armored attack vehicle
  • 90 to 100 wheeled and tracked vehicles total
    or
  • 46 or 77 light vehicle
  • Leopard tank
    • Interior Dock 70 m length, 17 m wide
    Carrying capacity
  • 4 LCAC
  • 4-6 rubber boats
  • 1 half-track
    • Crew Ship Personnel 371, total 1,204 people
    1,450 / 1443 people
    Embarked 1,400 crew members
    infantry battalion of 700 [not 1,200] soldiers with land, sea and air tools.

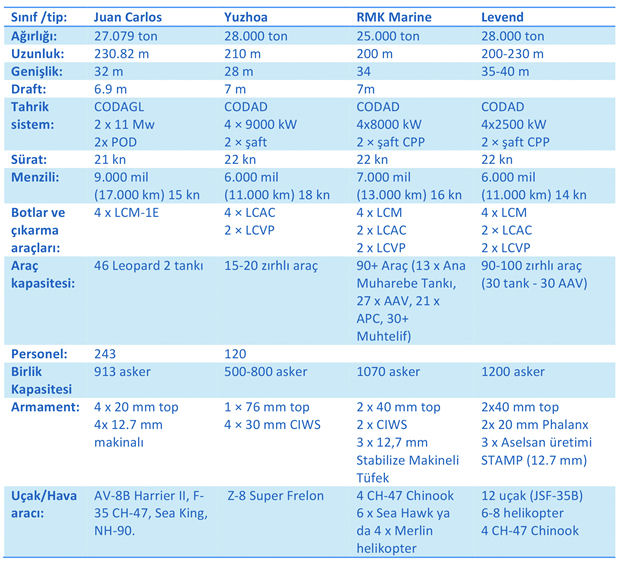

    RMK Specifications - 2012

    Length 200 m
    width 34 m
    draft 7 m
    displacement25,000 tonnes
    Max speed22 knots
    Endurance 21 days
    radius of action 7000 nautical miles @ 20 knot cruising speed
    Capacities
  • 4 x 35-ton Helicopter (simultaneous operation) for platform
  • 6 x to 4 x Merlin or Sea Hawk Helicopter Hangar
  • 2 car Deck: 90 + tool (13 x main battle tank, APC, AAV, 21 x 27 x 30 + Assorted);
  • Total parking area 2800 m2 SWL:
  • 30 Ton car lift
  • Helicopter Lift SWL: 15 tons
  • Pool 4 x LCMs or 2 x LCAC
  • Sancak Scaffold Mataforalar 2 x LCVPs
  • Deck Crane 30 Ton @ 30 m
  • Stern Ramp/Cover-SWL: 60 tons
  • Side Ramp/Cover-SWL: 60 tons
  • Vehicle Ramp-SWL: 30 Ton
    • weapons and sensors
  • 2 x 40 mm guns
  • 2 x Point-defence weapon system
  • 3 x 12.7 mm Stabilized machine gun
  • Search and surveillance radar
  • Electro-Optic Director
  • Fire Control Radar
  • decoy Countermeasures
  • Electronic Support System (ESM)

    • RMK Specifications - 2011

    Length 221.3m
    width 38m
    displacement28,500 tonnes
    Max speed22 knots
    Endurance With 16 knot speed, 7000nm Navigation
    30 days duration on sea without logistic supply
    complete construction + trials 6 year for
    National contribution More than %60
    electronics
  • GENESIS ADVenT command-control center (New generation Havelsan command-control center which will be integrated for TF-2000's as well)
  • Smart-S Mk2 3 BAR radar produced by Aselsan with critical nation contributions (with domestic T/R modules on radars)
  • Aselsan Alper and Serdar radars
  • Mine detection sonars
  • AselFlir-300D, Laser Warning systems, ARES-2N ET/ED systems used on MILGEM
  • Aselsan IRST
  • Aselsan Kalkan Chaff/Flare decoys and control system
  • Aselsan Hizir Torpedo defence system
  • Aselsan IFF adn SATCOM
  • Milsoft CAVLIS (Access device for Link-11, 16 and 22 )
  • Command Control center will have more than 20 Domestic Milsoft-Ayesas consols having 19 inch screen
    • weapons
  • Aselsan 40mm TAKS
  • 2 Fast Forty Type-C single barrel gun system deployed with AselFlir-300D
  • 2 20mm Planax system
  • 3 Aselsan STAMP 12.7mm
    • aviation
  • 4 (15 tonnes class) T-70/S-70 Utility/Naval helicopters or
  • T-129 Naval attack helicopter - 3 domestic unmanned helicopter
    • amphibious
  • 4 LCM
  • 2 LCAC
  • 94 military vehicle (13 ALTAY)
  • 27 AAV
    • complement
  • 190 Ship crew
  • 700 naval infantry
  • 1200 total personnel carriage capacity

    • Turkish Amphibious Assault Ship
