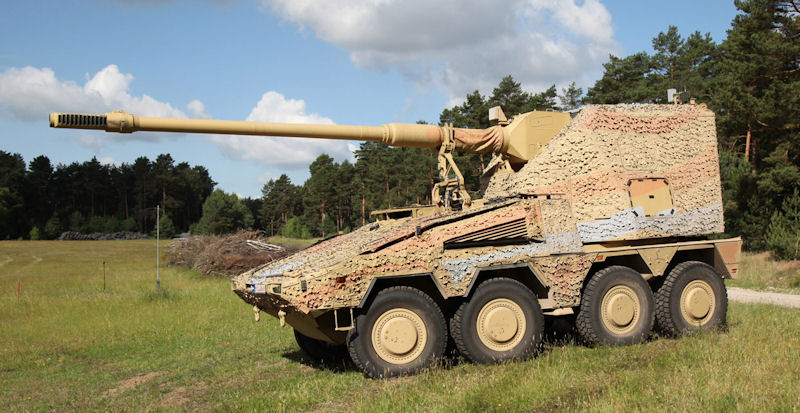

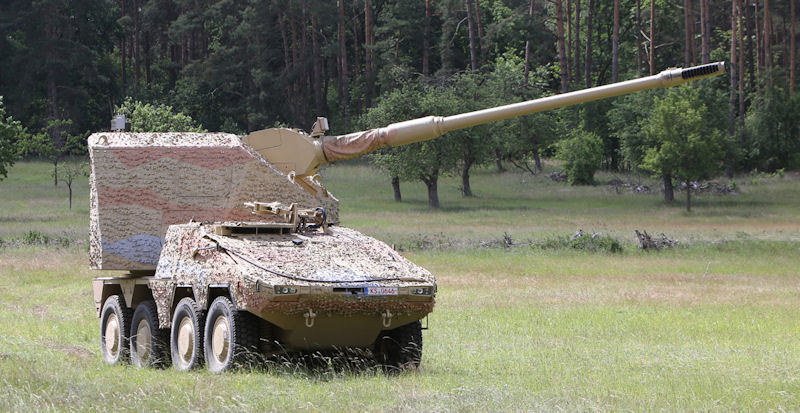

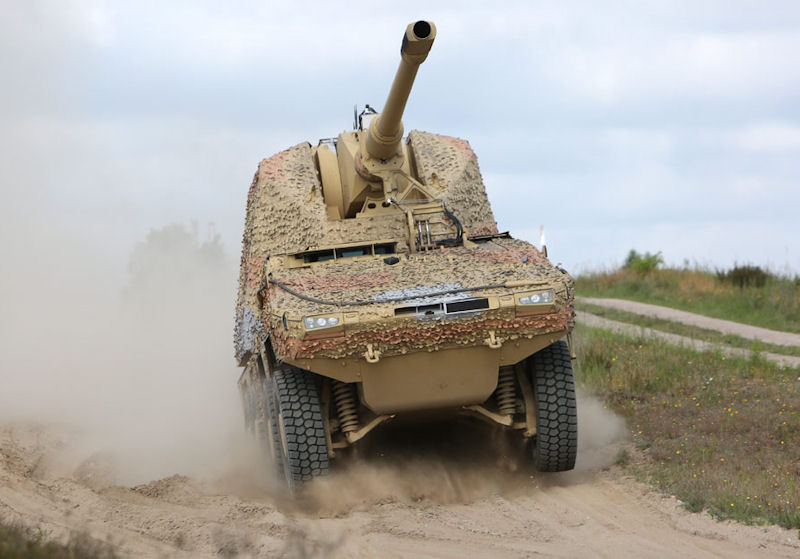

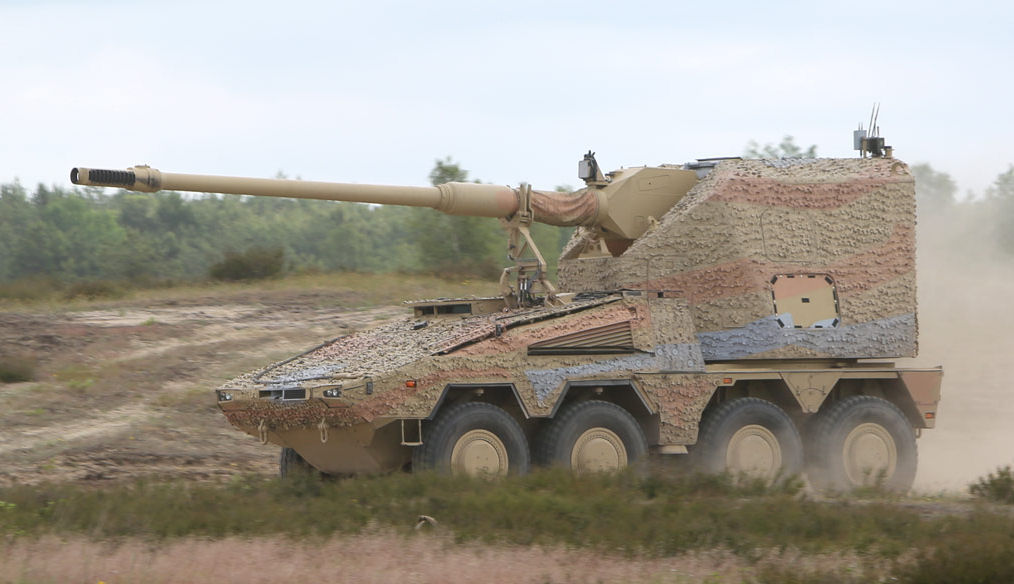

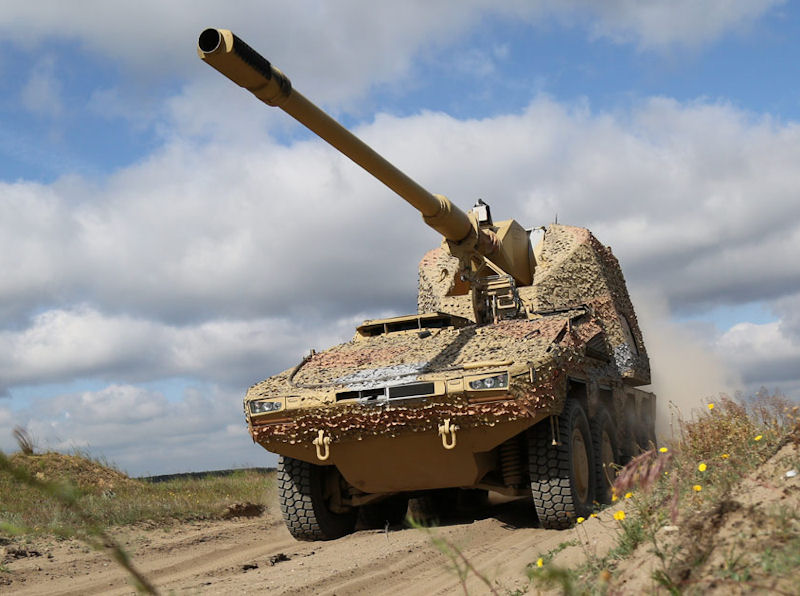

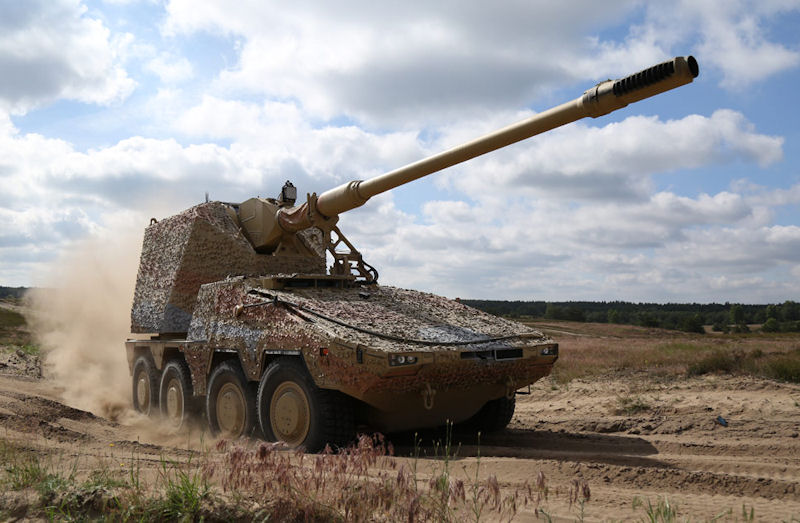

Remote Controlled Howitzer 155 (RCH 155)

The Remote Controlled Howitzer 155 (RCH 155) is a highly mobile artillery system with superlative crew protection. The key element for future joint operations is increased protection for the crew by separating the crew compartment and operator stations while retaining the artillery capabilities of the PzH 2000. The RCH 155 is the world’s first artillery system that can fire while in motion. Refined from the combined arms approach, the complete autonomy of the overall system in command, navigation and fire control as well as its system-related stability opens up entirely new deployment options (e.g. firing at moving targets, camp protection, etc.). Thanks to the network-based system architecture of the RCH 155, it will also be possible to implement autonomous driving and action (remote-controlled) in the future.

A systematic development of the PzH 2000, the RCH 155 is a lighter, more flexible and long-range artillery weapon for all areas of use, providing ultimate protection for the crew. In addition to high flexibility and top mobility, the BOXER drive module of the RCH 155 provides its crew with exceptional survivability and superior protection from mines, IEDs and ballistic threats.

A large ammunition supply and rapid replenishment, the stable gun platform, maximum aiming precision, autoloader, combined with autonomy in navigation and fire control make the RCH 155 the new standard for modern wheeled barrelled artillery. The synthesis of the time-tested NATO-JBMoU 155mm/L52 main gun and the unmanned AGM on BOXER chassis results in a unique level of artillery effectiveness with a present range of up to 54 km through 360° azimuth and all charge and elevation ranges without requiring support.

Developed and refined from joint operations, the complete autonomy of the overall system in command, navigation and fire control, as well as its system-inherent stability open up entirely new mission options (such as firing on moving targets, encampment defence, etc.).

Thanks to its network-based system architecture, the RCH 155 will also be possible to implement autonomous driving and action (remote-controlled) in the future. The fire control system and ammunition matrix can support already introduced as well as future NATO ammunition types (JBMOU-compatible). These special characteristics make the RCH 155 the world’s most future-oriented barrelled artillery system.

A systematic development of the PzH 2000, the RCH 155 is a lighter, more flexible and long-range artillery weapon for all areas of use which provides a high level of protection for the crew. In addition to high flexibility and top mobility, the BOXER drive module of the RCH 155 provides its crew with exceptional survivability and superior protection from mines, IEDs and ballistic threats.

Remote Controlled Howitzer 155 (RCH 155) Remote Controlled Howitzer 155 (RCH 155) Remote Controlled Howitzer 155 (RCH 155) Remote Controlled Howitzer 155 (RCH 155) Remote Controlled Howitzer 155 (RCH 155) Remote Controlled Howitzer 155 (RCH 155)
Primary armament155mm/L52 main gun (JBMoU-compatible)
Rate of fire 9 rounds per minute
Laying range Azimuth: 360° (+/- 200°) with up to 6 charges without vehicle support
Elevation From - 2.5° to + 65° (- 45 mil to + 1.150 mil)
Combat range Depending on the combination of projectile, charge and ignition e. g.
  • up to 40 km with base-bleed;
  • up to 54 km with V-LAP
  • longer combat ranges possible depending on ammunition, e. g. VULCANO, EXCALIBUR
  • Ammunition supply 30 primed projectiles/144 modular charges (direct access)
    Ignition programming Inductive programming during the charging process
    Secondary armament Optional remote-controllable weapon station
    Direct laying Optionally available with optronics or remote-controllable weapon station
    Combat weight < 39.0 t
    Dimensions (LxWxH) ~ 10.40 m/2.99 m/3.60 m
    Engine performance up to 600 kW/815 HP (MTU power pack)
    Speed > 100 km/h (road)
    Range > 700 km/h (road)
    Crew 2 persons
    Features
  • Superior combat range (currently 54 km) and large battlefield coverage thanks to the 155mm/L52 gun
  • Combat load with 30 primed projectiles
  • Fully automated operation with degraded operating modes
  • Fully automated projectile loading system with inductive ignition programming
  • Fully automated loading system for modular charges
  • Fully automatic electrical gun laying system
  • Optional capabilities for direct laying via optronics
  • Fire control computer with integrated ballistics calculation and radio data transmission connection to an artillery control system
  • High-precision navigation system, with or without GPS support
  • Optional all-round self-protection with weapon station and smoke grenade launching system
  • NBC protection and ventilation system
  • Cooling and heating system for AGM and crew
  • Automatic fire detection and extinguishing system in power pack compartment and a fire extinguishing system for the crew compartment
  • Built-in test equipment system (BITE)
