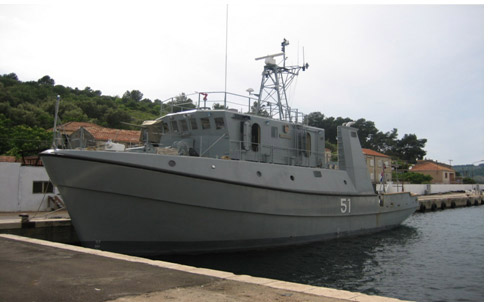

LM-51 Korcula - Coastal Mine Hunter

LOA /B/H
25,70/6,80/4,04m
Displacement
173 t
Sweeping speed
7-9 KN
Speed&Sea keeping
10 kn
Range&Autonomy

1000 NM / 7 days at 9 kn

Damage stability
Machinery

MTU 183, 365 kW

Combat System
Gun cal. 20mm
Complement
14

The vessel is designed as low underwater signature, single hull vessel with combined main propulsion / hovering diesel driven plant, intended primarily for detection of bottom influence mines by means of a side-scan sonar and their identification and neutralization by means of remote-operated underwater vehicles (ROVs), and secondary fore line sweeping of moored mines.

Main tasks:
  • See bottom surveillance and recording in protected waters
  • Detection and classification of mine-like objects laid on sea bottom
  •  Identification and marking of disposal detected mines
  •  Line sweeping of moored mines and destroying of floating mines by gun fire
  • Marking of safe navigation routes
