ACV 19 Armored Combat Vehicles

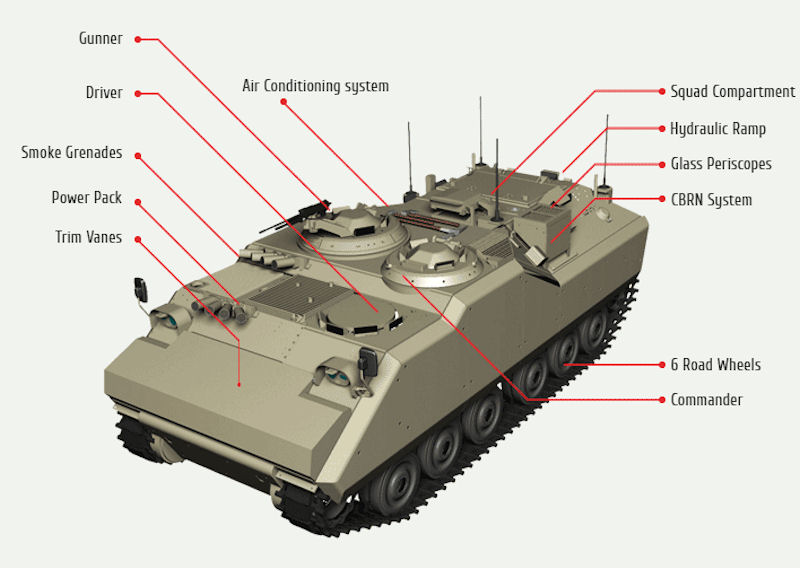

ACV 19 Armored Combat VehicleThe ACV-19 (Armored Combat Vehicles) is the general name for a 15-19 ton class modern high performance vehicles derived from the highly successful FNSS ACV. These vehicles have proven themselves with a number of armies worldwide. ACV-19 offers the latest developments in high value vehicle performance for internal volume and payload but maintains the advantages of commonality with ACV family of vehicles.

The differences between ACV-15 and ACV-19 consist primarily of a longer (stretched) hull (6 road wheels), heavy duty final drives, more aggressive suspension. The ACV-19 offers more volume under armour, more payload capacity than ACV. This means that the ACV-19 chassis can carry high payloads such as greater payload turrets, and still provide the comparable performance as a standard ACV-15. In addition, it is 90% spare parts commonality to ACV-15.

The ACV-19 chassis are provided with a unique, space laminated armor system combining steel and aluminium technology to provide a high level of armor protection against direct KE threats. Also, the hull provides protection against mines. The vehicle is upgradeable with growth potential. The vehicle configuration can be tailored in accordance with user requirements into a true family of vehicles which can be utilized by cavalry, infantry, MBT's support vehicles and artillery.

Infantry Carrier Vehicle Configuration
Combat Weight18.000 kg
TransmissionFully Automatic
SuspensionTorsion Bar
Electrical System24 V
Steering SystemThrough Transmission
Crew13 (Incl. Gunner, Driver & Commander)
Length6.02 m
W
idth2.94 m
Height Overall2.69 m
Protection System
  • NBC System Standard
  • NBC Detection System Optional
  • Air Conditioning Optional
  • Automatic Fire Suppression Optional
  • Smoke Grenade Dischargers
  • 8 ea Standard
  • Max. Road speed -Forward 65 km/h
    -Reverse 11 km/h
    Fording depth1.1 m
    SwimmingOptional
    Max. Road Range490 km
    Gradient60%
    Side Slope30%
    Trench Crossing1.83 m
    Vertical Obstacle0.70 m
    Main Armament12.7 mm Machine Gun
