YSD - Seaplane Wrecking Derrick

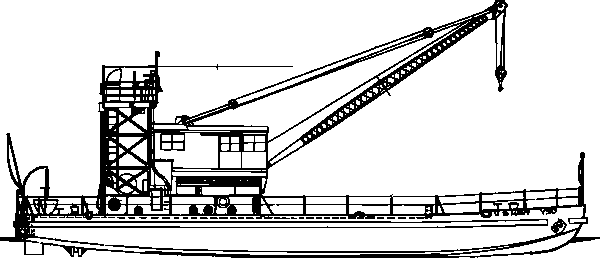

YSD is a non-self-propelled Seaplane Wrecking Derrick with nominal dimensions of 104 foot by 30 foot It carries a ten ton revolving crane which is used for salvage of downed seaplanes in harbors. It has complete living facilities with accommodations for 12 personnel.
ADMINISTRATIVE DATA
Specifications
Detail Specifications for Building Seaplane Wrecking Derricks YSD 76-78 dated 1943.
PRINCIPAL CHARACTERISTICS
| Length Overall |
104' |
| Length between perpindicular |
100' |
| Breadth, extreme, over fenders |
31'-2" |
| Breadth, molded |
30' |
| Depth, molded |
7' |
| Displacement, full load |
201 tons |
| Mean draft, full load |
3'-3" |
LIQUID CAPACITIES:
| Diesel oil | 6.37 tons |
| Hull Material |
Steel |
PRINCIPAL MACHINERY and EQUIPMENT
Anchor
2 windlass
Hull - Steel
Principal compartments
Crew berthing
Engine room
Bridge operating station
Diving gear locker
Galley/mess room
SAFETY
Fire
15 lb. C02 cylinders, portable, one each for engine room, diving gear locker, storeroom, crane cab, crew berthing, mess room.
|
