APPENDIX A
Problems and Solutions

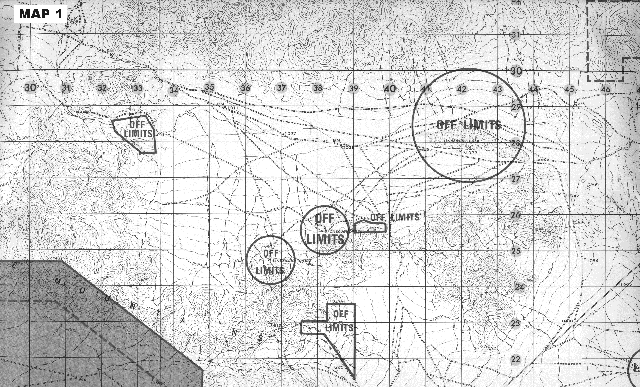

SITUATION:
MISSION:
DETERMINE:
9-LINE:
1.
IP/AP _______________
2.
HDNG _______________
3.
DISTANCE ______________
4.
TGT ELEV ______________
5.
TGT DISC ______________
6.
TGT LOC ______________
7.
MARK TYPE _____________
8.
FRIENDLIES ______________
9.
EGRESS ______________
REMARKS:
THREATS ___________________HAZARDS_______________WEATHER_______________ ORDNANCE DELIVERY_______________FINAL ATTACK HEADING OR ATTACK ZONE HEADINGS_________________ALTITUDE RESTRICTIONS_________________ ACA________________ BATTERY LOCATION _________________ MORTAR___________________ LOCATION_______________ TOT___________________ OTHER:
SEAD CALL FOR FIRE:
_____________ DE ______________OVER.
FFE GRID _____________ OVER.
TGT DESC _____________
CAS TOT _____________
SITUATION:
MISSION:
DETERMINE:
9-LINE:
1.
IP/AP ZULU
2.
HDNG 239
DEGREES MAGNETIC
OFFSET
L ______ R
X
3.
DISTANCE 6.8
NM
4.
TGT ELEV 3,400
FT
5.
TGT DISC ARMOR,
DUG-IN
6.
TGT LOC NK330274
7.
MARK TYPE HE, 1 RD WP
8.
FRIENDLIES 10
K EAST, COLT/ETAC 4 @ NK377315
9.
EGRESS WEST
THEN NORTH TO IP ZULU
REMARKS:
THREATS SA 14 HAZARDS N/A WEATHER 80 OVC 7+ DELIVERY ORDNANCE MK-82 HD FINAL ATTACK HEADING OR ATTACK ZONE HEADINGS 240 & 115 DEG MAG ALTITUDE RESTRICTIONS STAY ABOVE 8,400 FT MSL ACA NO FIRE WEST OF 35 EXCEPT DS ARTY AT CAS TGT BATTERY LOCATION NK450245/NK 463253 MORTAR LOCATION 510215 TOT 0645L OTHER: INGRESS BETWEEN 240 AND 115 MAG; DO NOT FLY SOUTH OF IP TO TGT HEADING FOR EGRESS.
SEAD CALL FOR FIRE:
THUNDER
DE
STRIKER
4
OVER.
FFE
GRID NK330274
OVER.
TGT
DESC T80/BMPS
DUG-IN;
CONTINUOUS
SEAD; CAS TOT 0645.
OVER.
STAY-ABOVE
ARTILLERY CALCULATION.
(B/BTRY
IS USED BECAUSE IT HAS THE LONGER RANGE TO TARGET.)
RNG
TO TGT: 13,400M;
CHG:
7WB;
VI:
-10
(BTRY 1040, TGT 1030);
FOR
ORD 1, USE 600 MIL ARC: ALTITUDE
@ 12,400M = 1,200M; X 3.3 = 3,960FT; + 1,000FT = 4,960FT; = ~ 5,000 FT AGL/8,400
FT MSL.
(CONTINUOUS
SEAD MEANS ARTY WILL FIRE FROM CAS TOT - 1:00 TO + 1:00 MINUTES.)

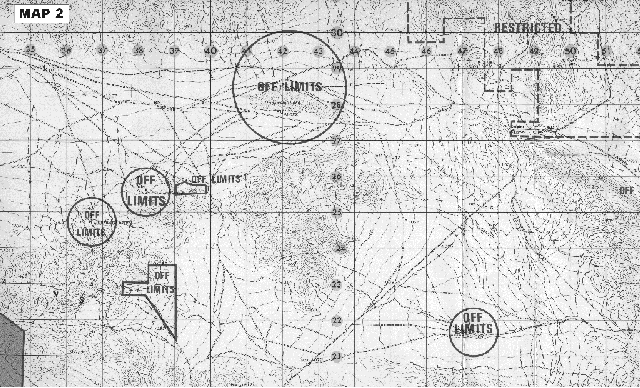

SITUATION:
MISSION:
DETERMINE:
9-LINE:
1.
IP/AP _______________
2.
HDNG _______________
3.
DISTANCE ______________
4.
MTGT ELEV ______________
5.
TGT DISC ______________
6.
TGT LOC ______________
7.
MARK TYPE _____________
8.
FRIENDLIES ______________
9.
EGRESS ______________
REMARKS:
THREATS ___________________HAZARDS_______________WEATHER_______________ ORDNANCE DELIVERY_______________FINAL ATTACK HEADING OR ATTACK ZONE HEADINGS_________________ALTITUDE RESTRICTIONS_________________ ACA________________ BATTERY LOCATION _________________ MORTAR___________________ LOCATION_______________ TOT___________________ OTHER:
SEAD CALL FOR FIRE:
_____________ DE ______________OVER.
FFE GRID _____________ OVER.
TGT DESC _____________
CAS TOT _____________
SITUATION:
MISSION:
DETERMINE:
9-LINE:
1.
IP/AP WHISKEY.
2.
HDNG 221
DEGREES MAGNETIC
OFFSET
L ______ R
X.
3.
DISTANCE 8
NM.
4.
TGT ELEV 3,960
FT.
5.
TGT DISC ARMOR,
T-80 STATIONARY.
6.
TGT LOC NK404224.
7.
MARK TYPE WP.
8.
FRIENDLIES 9.5
K EAST.
9.
EGRESS WEST
THEN NORTH BACK TO IP WHISKEY.
REMARKS:
THREATS 2S6/SA-16 HAZARDS N/A WEATHER 080 OVC 7+ ORDNANCE DELIVERY MK-82 LD FINAL ATTACK HEADING OR ATTACK ZONE HEADINGS 220 & 105 DEG MAGNETIC ALTITUDE RESTRICTIONS STAY ABOVE 8,300 FT MSL ACA NO FIRE WEST OF 42 N/S GRIDLINE BATTERY LOCATION 502237/509226 MORTAR LOCATION 510215 TOT 1000 OTHER:
SEAD CALL FOR FIRE:
THUNDER
DE
TIGER
OVER.
FFE
GRID AH7005
OVER.
TGT
DESC 4
T-80s STATIONARY; CAS TOT 1000; CONTINUOUS 3:00 MINUTES, MARK WITH ONE ROUND
WP.
(ALSO
INITIATE SEAD TARGET AH7103.)
A/BTRY RANGE TO TARGET = 10,000M; CHARGE 7WB; VI +200 (BTRY ALT 1000, TGT ALT 1200); ARC 400m. ALTITUDE @ 1,000M = 1,100M; X 3.3 = 3,300 FT; +1,000FT = 4300FT AGL/ 8,300FT MSL.
