Appendix D

PLANNING RANGES

This appendix provides information on the minimum and maximum ranges for planning purposes for the following weapon systems:

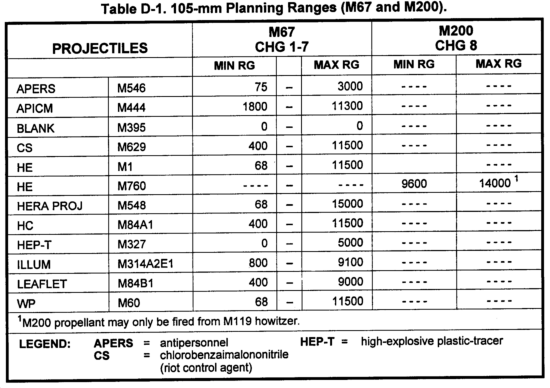

• 105 mm (Table D-1).

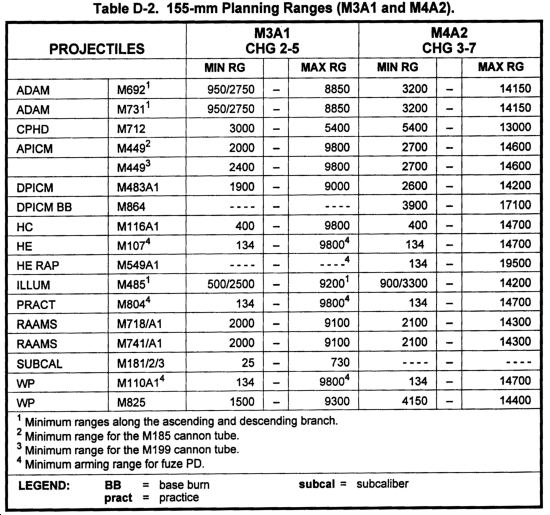

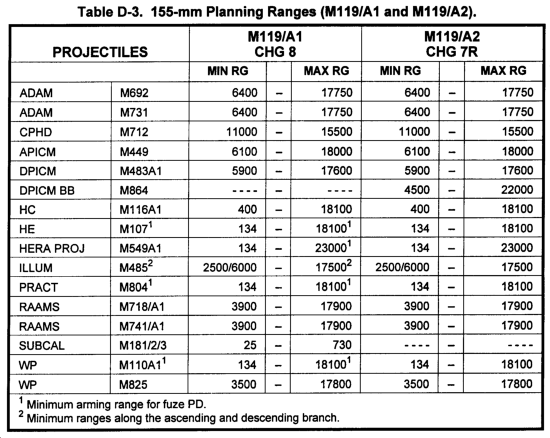

• 155 mm (Tables D-2, D-3 and D-4).

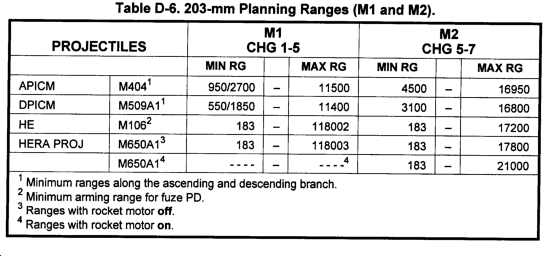

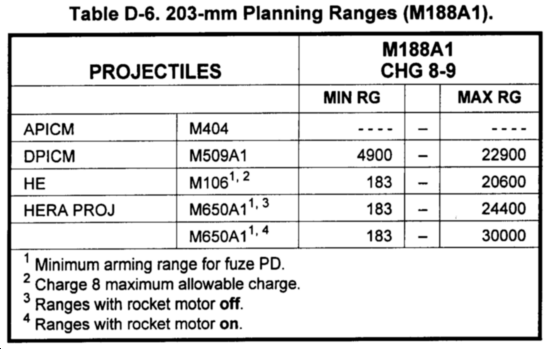

• 203 mm.

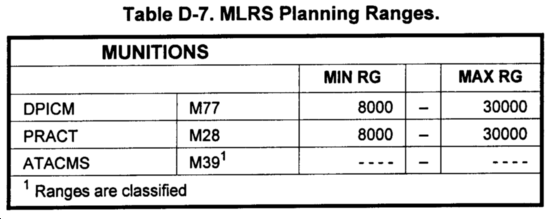

• MLRS.
