Phantom Eye

Phantom Eye is Boeing's first unmanned, liquid-hydrogen powered, high altitude long endurance (HALE) demonstrator aircraft. Phantom Eye is designed to maintain a persistent presence in the stratosphere over a specific area, while performing missions that could include intelligence, reconnaissance, surveillance and communication. Phantom Eye evolved from Boeing's earlier success with the piston-powered Condor that set several records for altitude and endurance in the late 1980s. Boeing, as the Phantom Eye system designer, is working closely with Ball Aerospace, Aurora Flight Sciences, Ford Motor Co. and MAHLE Powertrain to develop the Phantom Eye demonstrator.

Boeing also is developing a larger HALE that will stay aloft for more than 10 days and carry payloads of more than 2,000 pounds, and building "Phantom Ray," a fighter-sized UAV that will be a flying test bed for advanced technologies. Phantom Ray evolved from the X-45C program. It was scheduled to make its first flight in December 2010.

The Phantom Eye demonstrator will stay aloft at 65,000 feet for up to four days. It is powered by two 2.3-liter, four-cylinder engines that provide 150 horsepower each. It has a 150-foot wingspan, will cruise at approximately 150 knots and can carry up to a 450-pound payload. Key Phantom Eye suppliers and partners include Ford Motor Company (engines); Aurora Flight Sciences (wing); Mahle Powertrain (propulsion controls); Ball Aerospace (fuel tanks); Turbosolutions Engineering (turbochargers); the Defense Advanced Research Projects Agency; and NASA.

By early March 2010 the Boeing Company had begun to build Phantom Eye. "The essence of Phantom Eye is its propulsion system," said Darryl Davis, Boeing Phantom Works president. "After five years of technology development, we are now deploying rapid prototyping to bring together an unmanned aerial vehicle [UAV] with a breakthrough liquid-hydrogen propulsion system that will be ready to fly early next year."

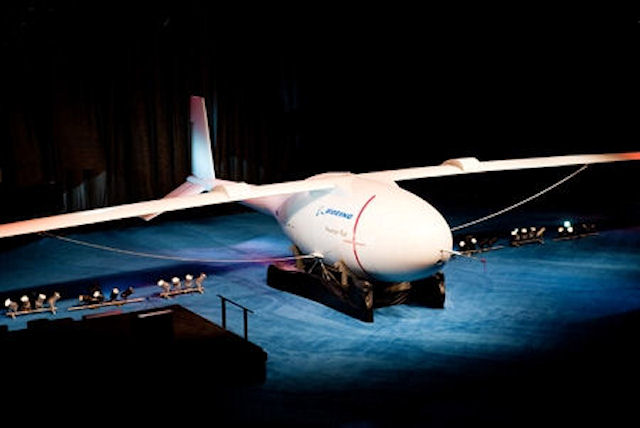

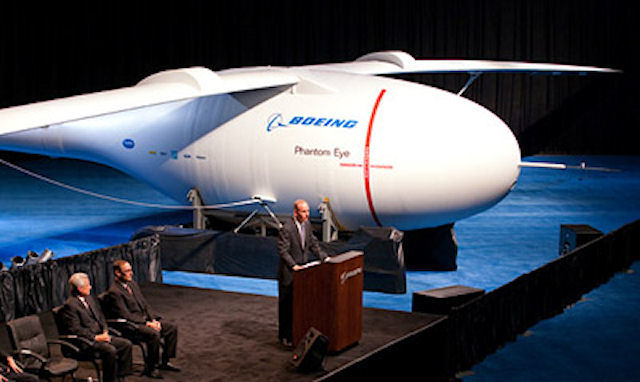

On July 12, 2010 the Boeing Company unveiled the hydrogen-powered Phantom Eye unmanned airborne system. "Phantom Eye is the first of its kind and could open up a whole new market in collecting data and communications," Darryl Davis, president of Boeing Phantom Works, said today at the unveiling ceremony in St. Louis. "It is a perfect example of turning an idea into a reality. It defines our rapid prototyping efforts and will demonstrate the art-of-the-possible when it comes to persistent intelligence, surveillance and reconnaissance. The capabilities inherent in Phantom Eye's design will offer game-changing opportunities for our military, civil and commercial customers."

Later in the summer of 2010, Phantom Eye would be shipped to NASA's Dryden Flight Research Center at Edwards Air Force Base, Calif., to begin a series of ground and taxi tests in preparation for its first flight in early 2011. That debut flight was expected to last between four and eight hours. "The program is moving quickly, and it's exciting to be part of such a unique aircraft," said Drew Mallow, Phantom Eye program manager for Boeing. "The hydrogen propulsion system will be the key to Phantom Eye's success. It is very efficient and offers great fuel economy, and its only byproduct is water, so it's also a 'green' aircraft."

Boeing's Phantom Eye unmanned airborne system (UAS) completed its first autonomous flight 01 June 2012 at NASA's Dryden Flight Research Center at Edwards Air Force Base, Calif. The 28-minute flight began at 6:22 a.m. Pacific time as the liquid-hydrogen powered aircraft lifted off its launch cart. Phantom Eye climbed to an altitude of 4,080 feet and reached a cruising speed of 62 knots. After touching down, the vehicle sustained some damage when the landing gear dug into the lakebed and broke.

"This day ushers in a new era of persistent Intelligence, Surveillance and Reconnaissance (ISR) where an unmanned aircraft will remain on station for days at a time providing critical information and services," said Darryl Davis, president, Boeing Phantom Works. "This flight puts Boeing on a path to accomplish another aerospace first -- the capability of four days of unrefueled, autonomous flight."

Phantom Eye is the latest in a series of Boeing-funded rapid prototyping programs, which include Phantom Ray, Echo Ranger, ScanEagle Compressed Carriage, and an associated Common Open Mission Management Command and Control (COMC2) system capable of managing all of the company's unmanned assets. "While Phantom Eye is important for many reasons, future ISR, strike and bomber programs also will benefit from the technologies we are developing and maturing for our customers," said Davis.

The flight took place following a series of taxi tests in April that validated ground guidance, navigation and control, mission planning, pilot interface and operational procedures. "This flight demonstrated Phantom Eye's initial handling and maneuverability capabilities," said Phantom Eye Program Manager Drew Mallow. "The team is now analyzing data from the mission and preparing for our next flight. When we fly the demonstrator again, we will enter higher and more demanding envelopes of high-altitude flight."

Phantom Eye's innovative and environmentally responsible liquid-hydrogen propulsion system will allow the aircraft to stay on station for up to four days while providing persistent monitoring over large areas at a ceiling of up to 65,000 feet, creating only water as a byproduct. The demonstrator, with its 150-foot wingspan, is capable of carrying a 450-pound payload.

Boeing's liquid hydrogen-powered Phantom Eye unmanned airborne system completed its second flight 25 February 2013, demonstrating capabilities that will allow it to perform intelligence, surveillance and reconnaissance (ISR) missions for up to four days without refueling. During the flight, at NASA's Dryden Flight Research Center at Edwards Air Force Base, Calif., Phantom Eye climbed above an altitude of 8,000 feet and remained aloft for 66 minutes at a cruising speed of 62 knots before landing. The aircraft exceeded what it achieved during its first flight when it flew at an altitude of 4,080 feet and remained aloft for 28 minutes.
