Korsar

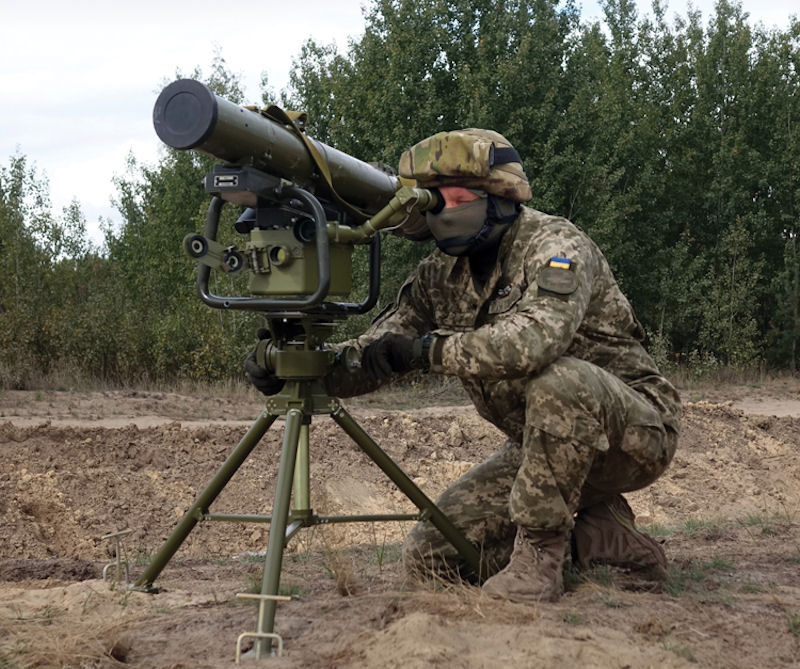

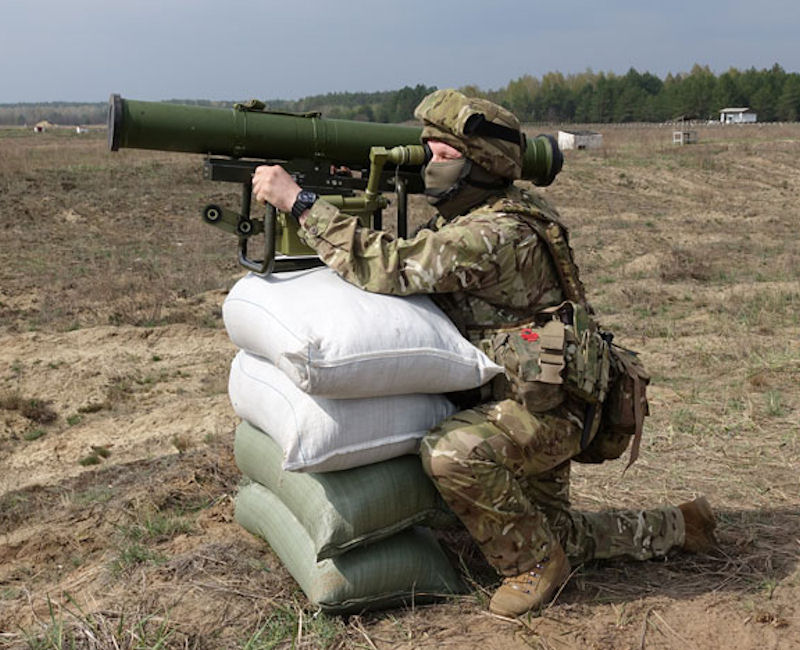

“Korsar” light portable missile system is intended to destroy stationary and moving modern armoured targets and other objects with combined, carried or monolithic armour, including ERA (explosive reactive armour), as well as pinpoint targets such as weapon emplacements, a tank in a trench, light-armoured objects and helicopters. Firing can be carried out from the mount as well as from a trench parapet. System is completed with missiles in transport and launching containers with tandem hollow-charge (RK-3K) and high-explosive fragmentation (RK-3OF) warheads. The System provides firing from prepared and unprepared positions, using the Mount and without it in day and night time with the use Thermal Imager.
Korsar is a variety of winter onion with a short-day character used for autumn sowing. It is suitable for obtaining the earliest bunching products and bulbs. Medium-sized, flat round-shaped bulbs weight 120-160 g. External skin is violet and dark-violet and internal is juicy, white with violent tint. Bulbs have sweetish mid-flavor taste. The yield is differ from 25 to 70 t/ha( depends on weather and growing conditions ). This variety has tolerance to low temperature and good regrowth quality after the winter. The main difference from other varieties is resistance to bolting and productivity.
| 2500 | ||
| Flight time at maximum range, s | 12 | |
| Guidance system | semiautomatic by laser beam | |
| Warhead | tandem hollow-charge, armour | |
| penetration behind ERA, mm | not less than 550 | |
| high-explosive fragmentation with EFP | ||
| armour penetration, mm | not less than 50 | |
| Weight, kg | ||
| launcher | 9,2 | |
| mount | 6,3 | |
| missile in container | 15,4 | |
| Overall dimensions, mm: | ||
| missile calibre | 107 | |
| container length | 1180 | |
| container outer diameter | 113 | |
| Operating temperature range, ?? | -40...+60 |
|
