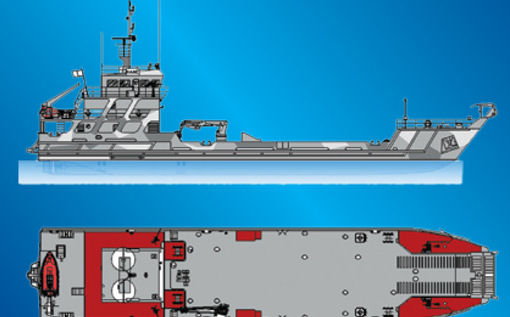

"BOBR-53" Landing Craft / Military Transport
|
Main particulars |
|
|
Length, overall, m |
53,00 |
|
Molded beam, m |
10,00 |
|
Draught, max, m |
1,90 |
|
Displacement, full load, t |
700 |
|
Weapons |
|
|
Two MG- 12,7 mm |
|
|
Propulsion/maximum speed |
|
|
Three DG-sets, kW |
3x150 |
|
Two marine diesels (CAT), kW |
2x450 |
|
Range (speed) |
1800 NM at 10 kts |
|
Endurance |
8 days |
|
accommodation |
|
|
Crew |
14 persons |
|
Rescue Rafts (2x20) |
|
|
Service boat |
6 persons |
|
Sensors and communication |
|
|
Two navigation Radars with ARPA |
|
|
FLIR system |
|
|
Communication and navigation equipment according to SOLAS requirements |
|
|
Military lift and cargo capacity |
|
|
Deadweight - 3501 (3 MBT T-84 type or 6 APC BTR-60/70 or 13 20-feets containers) |
|
|
Living spaces for 42 marines |
|
|
Cargoes: fuel - 140 m3, fresh water - 60 m3 |
|
|
holds - up to 60 m3 |
|
|
