| Specifications
|
|---|
|

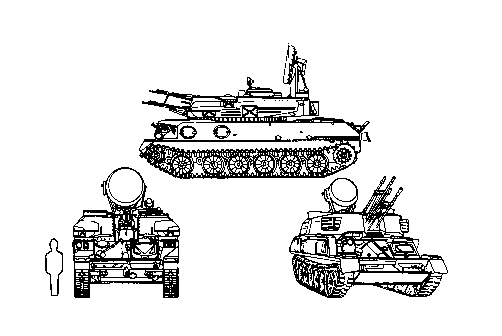

ZSU-23-4 Self-Propelled Antiaircraft Gun |
|
|
Characteristics: |
|
|
Crew |
|
|
Length |
6.54 m |
|
Height |
2.25m |
|
Width |
2.95m |
|
Combat Weight |
20.5 mt |
|
|
|
|
Armament: |
|
|
|
|
|
Antiaircraft gun |
4x23mm water-cooled AZP-23 cannons, traverses 360 degrees |
|
Maximum effective range (vertical) |
3,000 meters |
|
Rate of fire |
Maximum: 800-1000 rds/min/barrel Sustained: 30rds/barrel/burst |
|
Type of ammunition |
API-T, HEI-T,Frag-HE-T |
|
Basic Load |
2,000 rd |
|
Fire Control |
GUN DISH radar and optical-mechanical sight |
|
|
|
|
Vehicle: |
Variant of the ASU-85 self-propelled antitank gun chassis |
|
|
|
|
Maximum road speed |
50km/hr (30 mph) |
|
Water Crossing ability |
Fords 1.0m (3.5 feet) |
|
Cruising range (on roads) |
450 km (280 miles) |
|
Night vision aids |
Infrared system for commander and driver |
|
Maximum armor thickness |
9.2mm hull, 8.3 mm turret (.4'' hull, .3'' turret |
|
NBC Protection |
- Air filtration and overpressure system
- Radiation detection and warning system
|
|
|
|
|
Vulnerabilities: |
- Exposed during rearming
- Thin armor
- Suspension vulnerable to fragmentation
- Exposed radar
- Exposed, liquid cooled gun tubes
- Vulnerable to ECM
|
|
Recognition: |
- Based on PT-76/ASU-85 chassis
- 6 pressed road wheels-no return rollers
- Low rectangular turret with side bulges
- Four 23 mm guns mounted in front of turret
- Folding circular GUN DISH fire control/acquisition radar mounted at rear of turret
|
