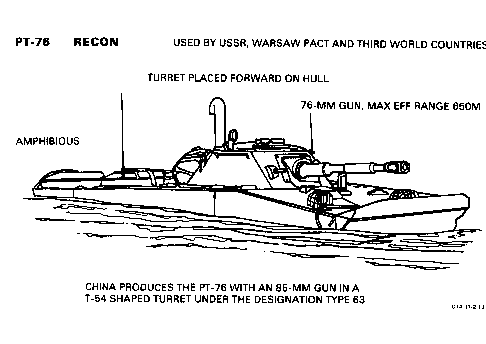

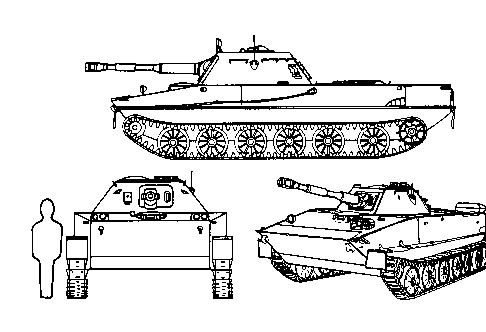

PT-76

Specifications
Alternative Designations INA
Date of Introduction 1952
Proliferation At least 21 countries
Description
Crew 3
Combat Weight (mt) 14.0
Chassis Length Overall (m) 6.91
Height Overall (m) 2.26
Width Overall (m) 3.14
Ground Pressure (kg/cm 2 ) 0.46
Automotive Performance
Engine Type 240-hp Diesel
Cruising Range (km) 260
Speed (km/h)
Max Road 44
Max Off-Road INA
Average Cross-Country 25
Max Swim 10
Fording Depth (m) Amphibious
Radio R-123
Protection
Armor, Turret Front (mm) 20
Applique Armor (mm) N/A
Explosive Reactive Armor (mm) N/A
Active Protective System N/A
Mineclearing Equipment N/A
Self-Entrenching Blade N/A
NBC Protection System N/A
Smoke Equipment VEESS
ARMAMENT
Main Armament
Caliber, Type, Name 76-mm rifled gun D-56B
Rate of Fire (rd/min) 6-8
Loader Type Manual
Ready/Stowed Rounds INA
Elevation () -4/+30
Fire on Move Yes
Auxiliary Weapon
Caliber, Type, Name 7.62-mm (7.62x54R) machinegun PKT
Mount Type Coax
Maximum Aimed Range (m) 1,500
Max Effective Range (m)
Day 1,000/400-500 on the move
Night 600
Fire on Move Yes
Rate of Fire (rd/min) 250 practical / 650 cyclic, 2-10 round bursts
FIRE CONTROL
FCS Name INA
Main Gun Stabilization 2-plane
Rangefinder N/A
Infrared Searchlight Available
Sights w/Magnification
Gunner TShK-66
Day
Field of View () INA
Acquisition Range (m) 4,000
Night TVN-28 IR Available
Field of View () INA
Acquisition Range (m) 600
Commander Fire Main Gun No
MAIN ARMAMENT AMMUNITION
Caliber, Type, Name
76-mm HVAP-T, BM-354P
Maximum Aimed Range (m) 1,060
Max Effective Range (m)
Day 650
Night 600
Armor Penetration (mm) 127 at muzzle, 50 at 1,000 m
76-mm HEAT, BK-350M
Maximum Aimed Range (m) 1,000
Max Effective Range (m)
Day 650
Night 600
Armor Penetration (mm) 280 to max range
76-mm, Frag-HE, OF-350
Maximum Aimed Range (m) 4,000
Max Effective Range (m)
Day INA
Night 600
Armor Penetration (mm) INA
Other Ammunition Types 76-mm AP-T, BR-350 API-T
