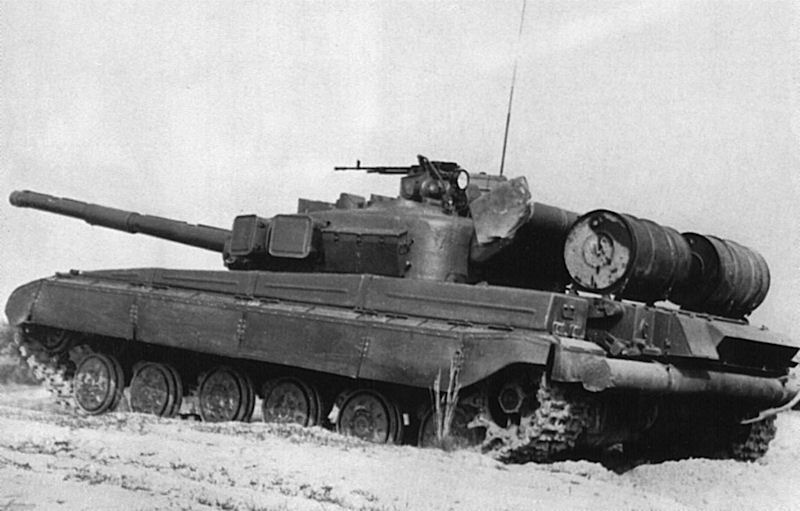

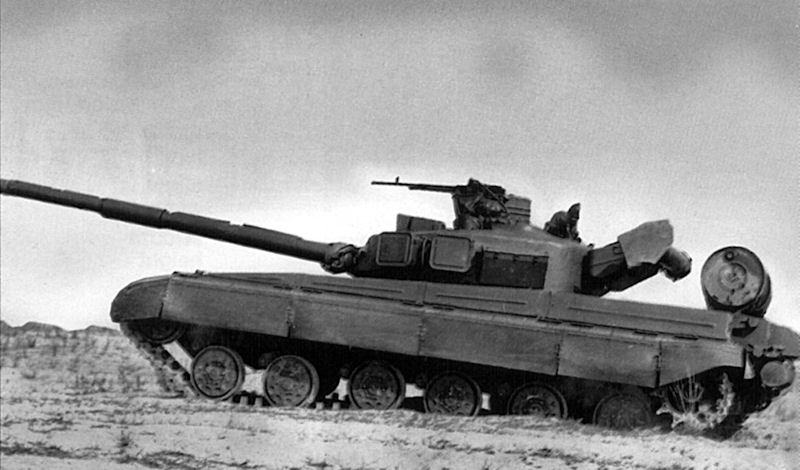

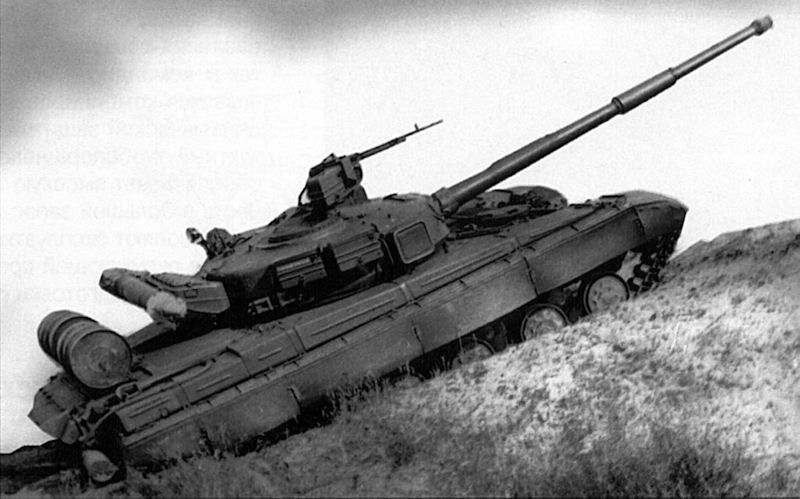

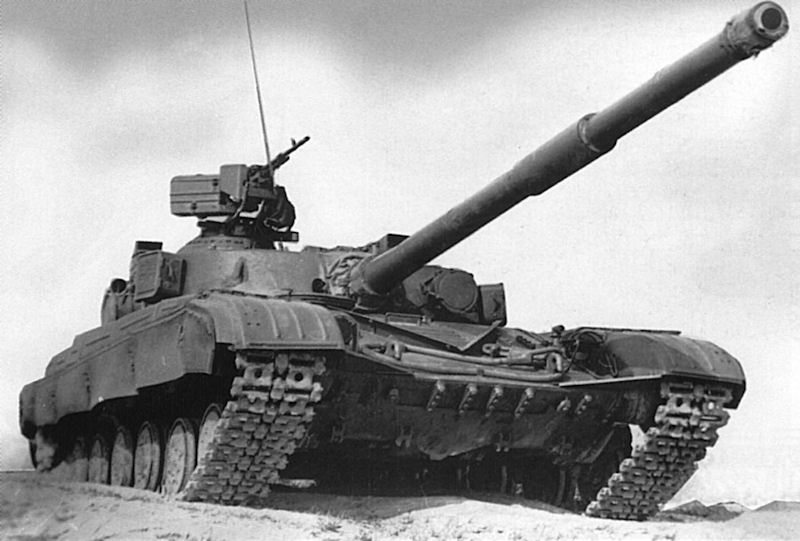

Obiect 476 Prototype Tank
The vehicle was created on the basis of the T-64A tank in order to elaborate the installation of the 6TD engine and its support systems. Later on, 5 vehicles were built on the basis of the T-64B tank under the designation of the T-64BM. The vehicles were subjected to army trials. The developments in the area of turret and fighting compartment of the Obiekt 476 were later introduced into the T-80U and T-80UD design, while the developments in the area of power pack - into T-80UD design.
| Year of manufacture of the first vehicle | 1979 |
| Weight | 41.5 t |
| Crew | 3 |
| Overall dimensions: | |
| - length | 9,530 mm |
| - width | 3,580 mm |
| - height | 2,210 mm |
| Armament: | |
| - main gun | 125 mm |
| - coaxial machine gun | 7.62 mm |
| - bow machine gun | 12.7 mm |
| Armour | 20-600 mm |
| Engine power output | 1,000 hp |
| Maximum road speed | 67 km/h |
| Cruising range | 600 km |
|
