Project 22500 Patrol Ship

From 15th to 18th February 2010 the Defexpo India2010 Military Show was held at Pragati Maidan Exhibition Centre. The Severnoye Design Bureau actively participated in the show and introduced at its exposition stand the models of modern war ships such as frigate of Project 11356, patrol ship of Project 22160, patrol ship of Project 22500 and patrol ship of Project 22300. The Project 22500 Patrol Ship is intended for defense of ships and communication lines against hostile surface ships and submarines; defeat of airborne threats attacks, both independently and as a task force ship; destruction of submarines; fire support of landing troops; frontier guard and patrol duties on protection of territorial waters and exclusive economic zone.

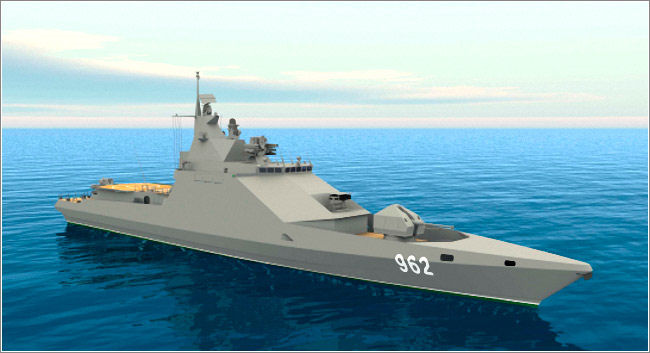

Project 22500 Patrol Ship Project 22500 Patrol Ship

Specifications

Dimensions, m:

84.0 ? 13.7 ? 3.2

Standard displacement, t:

ab. 950

Propulsion:

CODAG type of ab. 18,000 kW

Full speed, knots:

28

Cruising speed, knots:

ab. 16

Cruising range, miles:

up to 4,000

Electrical plant:

4 diesel generators of 230 kW each
1 emergency and harbor diesel generator of ab. 100 kW

Additional berths:

up to 80

Endurance, days:

20

Armament

Strike missile weapon:

1 Club, 8 missiles
1 Ogon flame thrower, 44 missiles

Artillery weapon:

1 100 mm ?-190E or
1 57 mm ?-220M
1 30 mm AK-630M or
2 Palma antiaircraft artillery systems

Air-defence weapon:

16 man-portable Igla systems

Additional weapon:

2 MTPU 14.5 mm heavy machine guns

Anti-submarine weapon:

2 Paket-E/NK small-size anti-submarine systems with antitorpedo

Sonar:

1 MGK-335EM-02 sonar system

Anti-underwater saboteur aids:

2 DP-65 hand mortars
1 Pallada or Anapa-ME diver detection sonar

Electronics:

1 Pozitiv-ME1 search and target designation radar
1 Pal-N-4 navigation radar
1 MTK-201ME close range optoelectronic systems
of air/surface situational awareness

ECS:

1 TK-25E emission detection system
1 PK-10 chaff complex

Aircraft capability:

Telescopic hangar and helo deck with facilities for take-off,
landing and maintenance of combat or
rescue helicopter weighing up to 12 t
