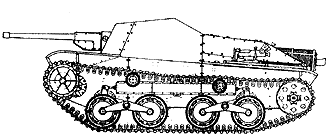

Type 5 Ho-Ru 47-mm self-propelled anti-tank gun

Type 5 Ho-Ru 47-mm anti-tank gun The creation af the light anti-tank gun Type 5 “Ho-ru” was a response to the American medium tanks M3 and M4, which successfully operated in the Pacific theater of operations. As the experience of military operations in the open confrontation of “Shermans” showed, only crews of medium-sized Chi-Ha tanks had a chance to win, and even in the most favorable circumstances. American cars outnumbered their opponents in all respects and only anti-tank 47-mm or 75-mm guns could penetrate 30-60 mm of armor, which were not always able to deliver to the battlefield.

So there was a need to have in service a specialized self-propelled gun, whose task would be to combat the armored vehicles of the Americans. One of the most successful options was the creation of self-propelled gun "Ho-ni", armed with a 75-mm anti-tank gun and built on the chassis of the same "Chi-ha." The chassis has switched to self-propelled without any significant changes: structurally, it consisted of four dual track rollers on board with a Hara-type suspension, two supporting rollers, a rear guide wheel of a front-wheel drive wheel with pinching gear. Only the track, in which the width of the single-flange truck was increased to 350 mm, was finalized.

The main means in countering the American tanks from the Japanese self-propelled guns was a 47-mm anti-tank gun installed in the squat open rear fighting caompartment. The armor-piercing projectile of this weapon had an initial speed of about 820 m / s and punched a vertically positioned 50-mm armor plate at a distance of up to 500 meters.

The self-propelled gun “Kho-ru” was tested in 1942-1943, but there is no detailed information on their conduct and results. The project did not receive further development due to the low power of the 47-mm cannon, unable to fight with new American and British tanks.

There is evidently some confusion as to the chronology of this poorly attested program, with some sources dating it to 1943, while others date it to 1945.

Type 5 "Ho-ru" sample 1943
Official designation Type 5 “Ho-ru”
Alternative designation?
Start of design 1945.
Date of construction of the first prototype 1945.
Stage of completion one prototype was built.
COMBAT MASS ?
CREW, people 3
DIMENSIONS Length mm ?
Width, mm ?
Height mm ?
Clearance, mm ?
ARMAMENT one 47mm anti-tank gun
AIMINGtelescopic sight
ARMORshell front - 12 mm chopping - 8 mm feed -? roof - 6 mm bottom - 6 mm
ENGINE Mitsubishi A6120 VD, 6-cylinder, diesel, air-cooled, 120 hp at 1800 rpm
TRANSMISSION mechanical type: gearbox, gearbox (4 + 1), propeller shaft connected by bevel gears to the shafts of side clutches, single-stage bead gears
CHASSIS (on one side): 4 support rollers interconnected in pairs in two trolleys, two supporting rollers, front-wheel drive wheels (pinching gear), Hara type suspension; small-track caterpillar, with open hinge and one ridge, 250 mm wide, track pitch 95 mm, number of tracks - 97
SPEED 45 km / h?
STOCK ON THE HIGHWAY ?
CONSTRAINED OBSTACLES
Angle of rise, hail. ?
Wall height, m ?
Wade depth, m ?
width of the pit, m ?
MEANS OF COMMUNICATION ?
