New Training Ship / Naval Training Ship (MBH1773)

The MBH1773 class Training Ship is a monohull vessel that has been designed for the long-term on-board training of cadets. It is equipped with every aspect of a real training ship and conforms to all naval norms/standards and classification rules. The MBH1773-class Training Ship’s main roles, with the capabilities carried on board are: To accommodate 60 cadets and their trainers, providing long-term open seas training; To show flags all around the world; To serve as helicopter landing/take-off training platform and to carry out Command & Control Ship tasks in wartime.

Company Name STM Savunma Teknolojileri Mühendislik ve Ticaret A.S.
Purpose
  • to accommodate 60 cadets and their trainers, providing long term open seas training
  • to show flag all around the World
  • to serve as helicopter landing/take-off training platform
  • to carry out Command&Control Ship tasks in wartime
  • capabilities
  • 21 knots maximum continous speed
  • 4500 n.miles endurance at 15 knots economical speed
  • Special Bridge, CIC, Radio Room, MCR, Damage Control and Fire Fighting Compartments for training
  • Full operability at sea state 5, with limitations at sea state 6; fin stabilizers
  • Reduced Radar Cross Section (RCS)
  • 76 mm. or similar forward gun
  • 2 x 12,7 or 25 mm. Stabilized Platform Machine Guns (STAMP/STOP)
  • PDMS/CIWS, Sonar installation infrastructure
  • Large helicopter deck for 15-ton helicopters +telescopic hangar
  • Redundant propulsion and electrical system
  • Length overall 101.70 m.
    Length waterline 91.72 m.
    Max. Breadth 16.00 m.
    Draft 4.10 m.
    Tonnage Displacement 2915 tons
    Speed & Endurance
    Max. cont. Speed 21 knots
    Economical speed 15 knots
    Endurance 4500 n.m. at 15 knots
    Sensors & Weapons
  • Command&Control, Fire Control, Navigation and Communication Systems
  • 1 x 76 mm. or similar forward gun
  • 2 x 12,7 or 25 mm. Stabilized Platform Machine Guns (STAMP/STOP)
  • CIWS/PDMS System (optional)
  • Sonar System (optional)
  • Main Propulsion
  • 2 x 5000 kW, high/medium speed diesels
  • 2 x shaft & CP Propellers
  • Auxillary Propulsion Unit
  • Power Generation Diesel Generators:
  • 4 x 735 kVA
  • Ship’s Boats
  • One Service Boat, One RHIB
  • Helicopter Capability
  • Helicopter deck for 15-ton helicopters, suitable for landing/take-off exercises; telescopic hangar
  • Accommodation
  • Accommodation for 60 cadets, 108 crew and trainers
  • Training Bridge, Training CIC, Training Radio Room, Training MCR, Damage Control and Fire Fighting Training Compartments, Classrooms
  • Galley, dry provisions, freezing rooms, wardroom/mess halls, offices, CIC etc.
  • Length of stay at sea: 30 days
  • NBC Protection

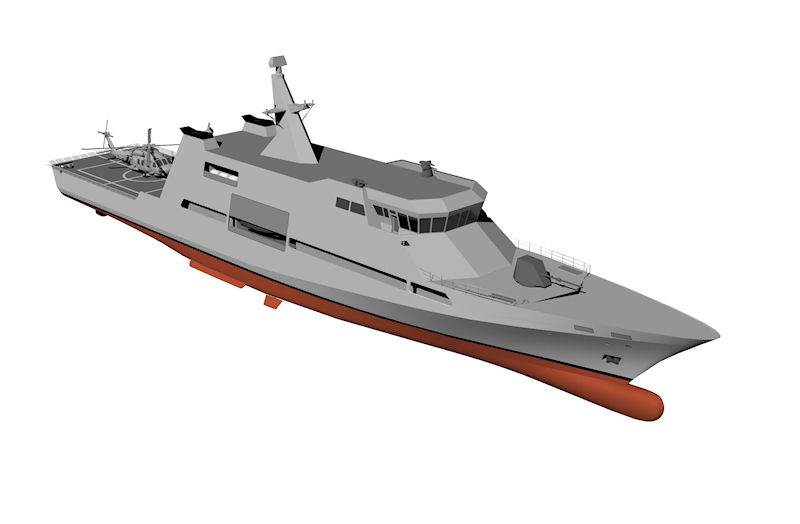

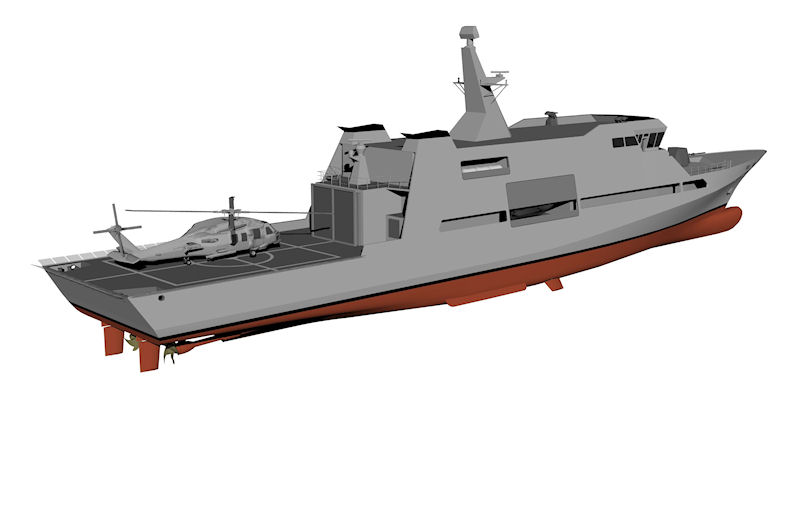

  • TCG New Training Ship

    TCG New Training Ship TCG New Training Ship TCG New Training Ship TCG New Training Ship
