Offshore Patrol and Support Vessel (OPSV-1500)

The Offshore Patrol and Support Vessel (OPSV-1500) is a monohull vessel, designed to perform offshore patrol, logistics supply and rescue missions at heavy seas, equipped with redundant diesel driven podded propulsion system allowing flexible maneuvering, conforming naval norms/standards and classification rules.

Company STM Savunma Teknolojileri Mühendislik ve Ticaret A.S.
main missions
  • Coastal and Offshore Patrol
  • Search and Rescue (SAR)
  • Diving& Salvage Operations Support
  • Replenishment of Ships at Harbour
  • Logistic Support
  • Mine Laying
  • Torpedo Recovery, Target Towing
  • Training
  • capabilities
  • operations at sea state 5
  • Reduced Radar Cross Section (RCS)
  • Two damage control zones; redundant propulsion, maneuvering and electrical systems
  • Helicopter platform for 10 tons helicopter
  • A clear aft deck area of 300 m2 without helicopter
  • 500 tons cargo capacity
  • A 8 tons SWL hydraulic telescopic crane
  • Large aft storage area with sliding hatch on aft deck
  • A pressure chamber for 2 persons
  • Length overall 75.15 m
    Length waterline 67.10 m
    Max. Breadth 15.40 m
    Draft 3.10 m
    Displacement 1550 tons
    Max cont. Speed 18 knots
    Economical speed 14 knots
    Endurance +2400 n.m. at 14 kts.
    Tank Capacities Fuel (F-76) : 95 tons Fresh Water : 54 tons
    Maximum Cargo Capacity Fuel 300 tons Fresh Water : 100 tons Dry Cargo : 100 tons
    Sensors & Weapons
  • 2 x Navigation Radars (LPI)
  • Reserved area for towed array sonar
  • 3 x 25 mm Guns or
  • Up to 1 x 76 mm fwd. Gun and 2 x smaller guns
  • 13 mines
  • Main Propulsion
  • High Speed Diesel Main Engines, 4 x 750 kW
  • Azimuth thrusters, 2 x 1500 kW, 2.200 mm diameter CPP
  • Power Generation
  • 2 x 500 KVa Diesel Generators
  • 1 x 1000 KVa Diesel Generator
  • 1 x 160 kW, air cooled Emergency Diesel Generator
  • Rescue Equipment
  • A hydraulic-telescopic crane of 8 tons (SWL) to serve aft deck area
  • A clear aft deck area of 300 m2 also for landing and take off of 10 ton-helicopter
  • One RHIB
  • A pressure chamber for 2 persons
  • A sick-bay
  • SCUBA bottles air recharging
  • Maneuvering Aft propulsion azimuth thrusters, 2 x 1500 kW, 2.200 m diameter CPP, 360º steerable
    Bow thruster Tunnel thruster, 1 x 300 kW, 1.200 m diameter
    Anchoring, Mooring and Towing Equipment
  • 50 tons bollard pull
  • 1 self tensioned towing winch Accommodation
  • Comfortable accommodation for 70 + %10 crew in total
  • Galley, dry provisions, freezing rooms, wardroom/mess halls, offices, CIC etc.
  • Growth Capabilites
  • Custom Sensors & Weapons
  • Higher accomodation

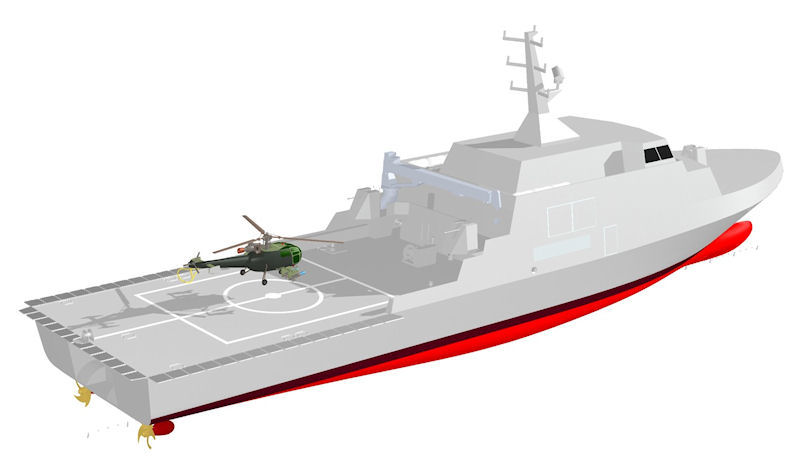

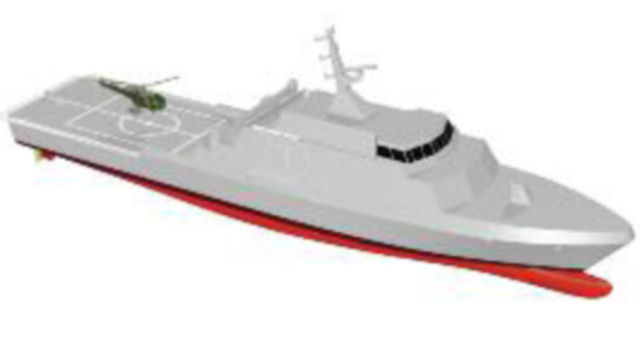

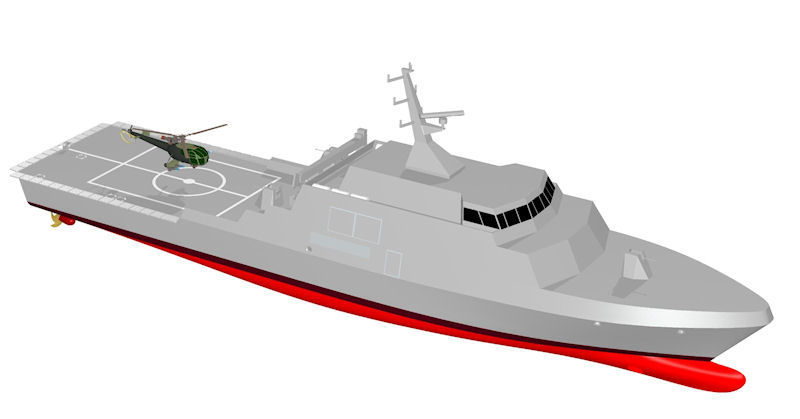

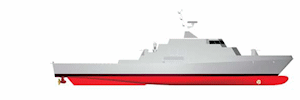

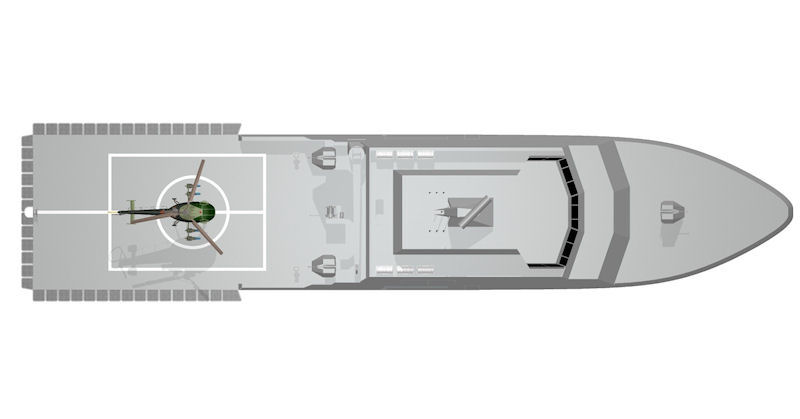

  • TCG OPSV 1500 TCG OPSV 1500

    TCG OPSV 1500 TCG OPSV 1500 TCG OPSV 1500 TCG OPSV 1500
