Landing Ship Tank (LST)

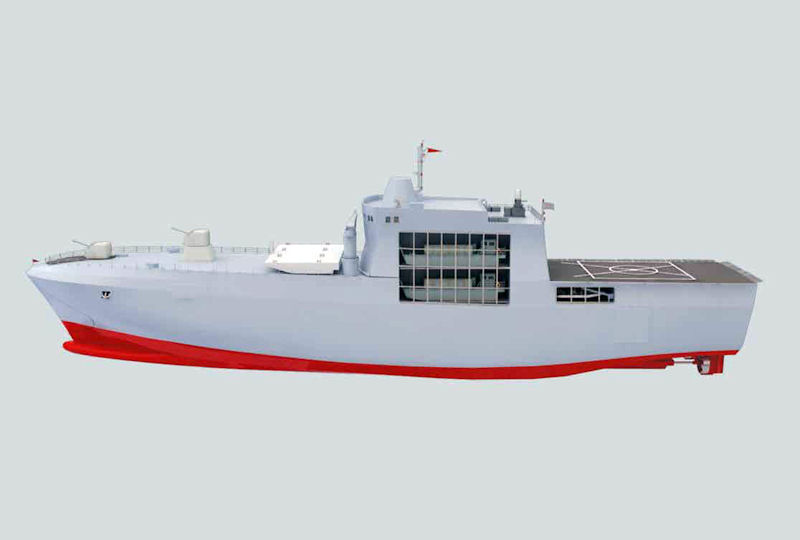

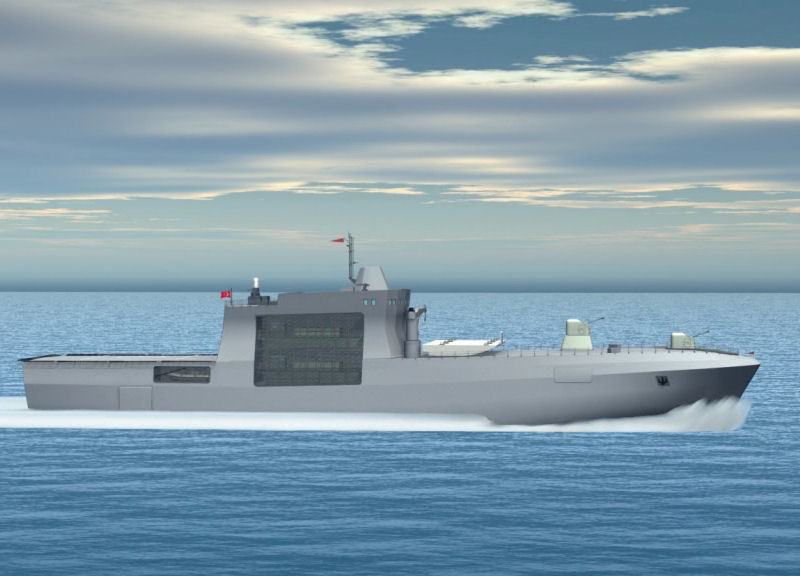

Landing Ship Tank (LST) Project consists of acquisition of 2 ships through local design, construction and integration in order to meet operational requirements of Turkish Naval Forces Command. The new generation Landing Ship Tank is a fast amphibious vessel of upper-intermediate size with its significant armament power. She will play the major role of power projection with transporting huge quantities of fire support elements and marines in order to conduct amphibious operations. She also acts as a flag ship and logistic support vessel. Ship is a mono-hull type vessel, all steel construction, designed to meet the speed, sea keeping maneuverability and stability requirements of Turkish Naval Forces Command. Expected service life will be 40 years.

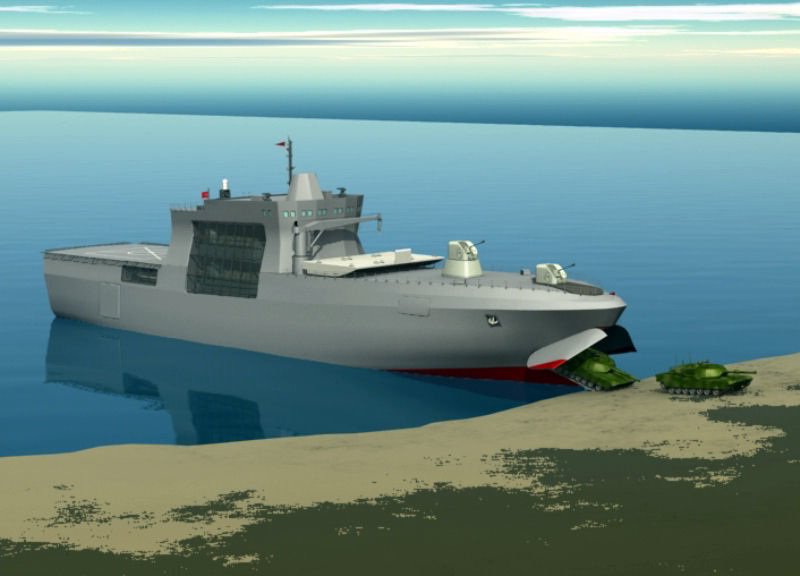

The new generation Landing Ship Tank (SNR-LST) is a fast amphibious vessel of upper-intermediate size with its significant armament power. She will play the major role of power projection with transporting huge quantities of fire support elements and marines in order to conduct amphibious raids. She also acts as a flag ship and logistic support vessel. Istanbul SNR-LST has a significant armament capability due to needed specific amphibious operations, primarily beaching craft and military forces ashore.

The responsibility of design, construction, system integration, performance and timely delivery is the responsibility of Anadolu Deniz Insaat Kizaklari Sanayi ve Ticaret A.S. HAVELSAN and ADIK Shipyard signed a contract on February 14, 2012; related to the Combat and Electronic Systems Integration, Technical Coordination and Consultancy of 2 LST (Landing Ship Tank) type naval platforms to be built for Turkish Navy.

HAVELSAN scope of responsibilities are: LST Combat and Electronic Systems Integration, Consultancy for Combat and Electronic Systems acquisitions for ADIK Shipyard, and Technical Management and Coordination of Combat and Electronic Systems. With this Project, once again HAVELSAN has proved competent not only as the Naval Combat Systems designer and integrator, but also as the reliable, competent and efficient consultant and technical manager for Naval Ship Builders of Turkey.

Company ADIK Shipyard
  • SNR Istanbul Shipyard
  • Seft
  • Function
  • Primary: Amphibious operations and troop transfer.
  • Secondary: Fast humanitarian and rescue aid to disaster areas.Medical Aid and Transportation
  • Amphibious operations / Fast significant attack
  • Combat Management, Logistical Support
  • Vehicle transportation
  • First aid and disaster area evacuation
  • Troop transportation
  • Humanitarian aid
  • Displacement 7125 Tons6,260-6,440 tons
    Length (LOA) 138.75 m112.06 m / 112.60 m
    Length (LWL) 130.80 m
    Length BP102.30 m
    Beam 19,60 m20.00 m
    Draft Fore (Tf)Less than 2.0 m forward,2.50 m
    Draft Aft (Ta)less than 5.0 m aft at full load 5.00 m
    Depth6.80 m
    Propulsion 4 x main diesel engines 2880 kW each,
    2x shafts, 2x controllable pitch propellers
    1x 500 kW bow thruster
    2 X (4440 kW @ 1300 rpm diesel enginee + FPP)
    Electric 4x785 kW Diesel Generators with Power Management System 380 V, 3 Phase, 50 Hz.
    Speed Maximum > 18 knots
    Speed Continuous18 + knots at full load displacement > 15 knots
    Range 4000 nautical miles @ 15 knots
    Sea worthiness Ship will have an unlimited operation capability at Sea State-5 and will be operable with some limitations at Sea State-6 or higher. Unlimited helicopter operations at Sea State-4.
    Armament
  • 2x40 mm Fast Forty naval gun
  • PHALANX Close-In Weapons System
  • 2x12.7 mm heavy machine guns with stabilized platform
  • Chaff (IR/RF) Decoy Launching System
  • Torpedo defence system
  • Complement Ship : 12 officers, 51 petty officers, 66 ratings
    Joint Group Headquarters : 17 officers
    Marines : 350
    complement of 367 persons
    Cargo Ship is capable of carrying 1180 tons of mixed vehicles or cargo on vehicle and open decks at full performance.
    Equipment
  • 25 tons telescopic crane
  • 4xLCVP, 3 Self propelled Pontoon
  • 1RHIB,
  • 1 Service Boat
  • Equipped with wash down defense system against NBC attacks

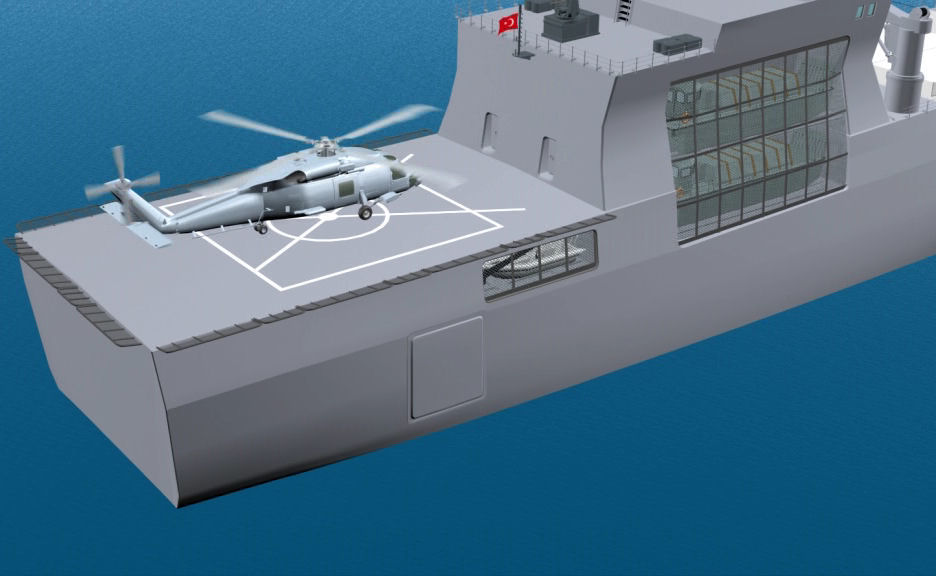

  • Additionaly carrying Seahawk
  • Rules and Regulations Ships are under contraction in accordance with Turkish Lloyd Military Ships Rules and will be classified by Turkish Lloyd.

    IMO/MARPOL 73/78
    IMO/SOLAS
    COLREG
    Stability as per BV 1033
    NATO STANDARTS (STANAG, ANEP etc.)
    ISO
    TSE
    TURKISH NAVY STANDARTS


    Turkish Lloyd
