LANDING CRAFT TANK (LCT) Fast Amphibious Ship

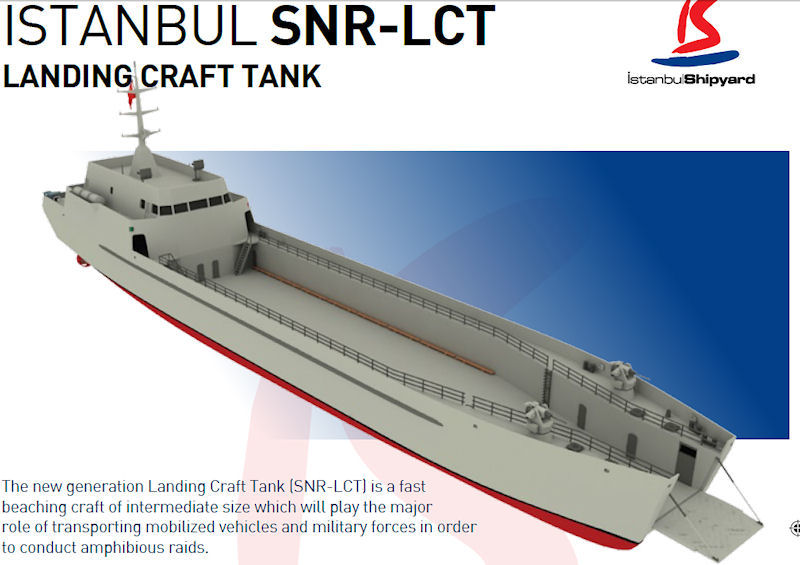

The new generation Landing Craft Tank (SNR-LCT) is a fast beaching craft of intermediate size which will play the major role of transporting mobilized vehicles and military forces in order to conduct amphibious raids. Tank Landing Craft-fast (LCT-F) is a monohull vessel, designed to perform high speed amphibious operations and to be used as a transportation ship for civilian purposes, equipped with conventional diesel propulsion system, conforming naval norms/ standards and classification rules. The Ship is a mono-hull type vessel, all steel construction, designed to meet the speed, sea keeping maneuverability and stability requirements of Turkish Naval Forces Command. The expected service life will be 30 years.

Landing Craft Tank (LCT) Project, also known as the Fast Amphibious Landing Ship or Fast Amphibious Ship project, consists of the acquisition of 8 ships through local design, construction and integration in order to meet operational requirements of Turkish Naval Forces Command. The new generation LCT will be a fast-landing craft of intermediate size, which will play a major role in rapid transportation of military vehicles and personel.

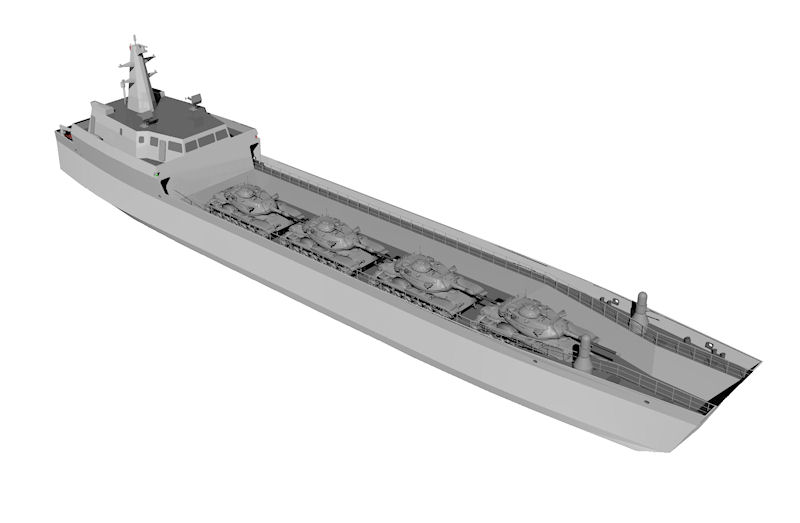

The winner of the competition to design and build eight landing craft tank (LCT) vessels for the Turkish Naval Forces exceeded the service's specifications in at least two key areas. The craft proposed by the ADIK-Furtrans partnership will have a maximum speed of 22 kt and a military lift capability of up to seven main battle tanks (MBTs) or 17 trucks. The ADIK-FURTRANS partnership won the Turkish tender of 8 LCT ships in a 100 million Euro bid. Each LCT costs 12.5mln euros. The responsibility of design, construction, system integration, performance and timely delivery is the responsibility of Anadolu Deniz Insaat Kizaklari (Anadolu Shipyard or ADIK).

Company Name STM Savunma Teknolojileri Mühendislik ve Ticaret A.S. SNR Istanbul Shipyard Anadolu Shipyard [ADIK]
Purposes
  • to provide flexibility and expedition during amphibious oprerations
  • to perform peace support, humanitarian aid and public evacuation
  • transportation services for civilian purposes
  • Amphibian operations / Fast attack
  • Disaster area evacuation
  • Vehicle transportation
  • Humanitarian aid
  • Troop transportation
  • Amphibious operations and troop transfer
  • Fast humanitarian and rescue aid to disaster areas
  • Capabilities
  • Operability at sea state 4
  • Reduced Radar Cross Section (RCS)
  • 420 m2 open deck area to carry +200 tons
  • Ballistic protection
  • Control and monitoring of the propulsion system from the bridge and MCR
  • Monitoring and control of major ship systems from the bridge and monitoring of alarms at MCR
  • 100% redundancy for critical systems
  • Fully air conditioned accommodation
  • Ballistic protection

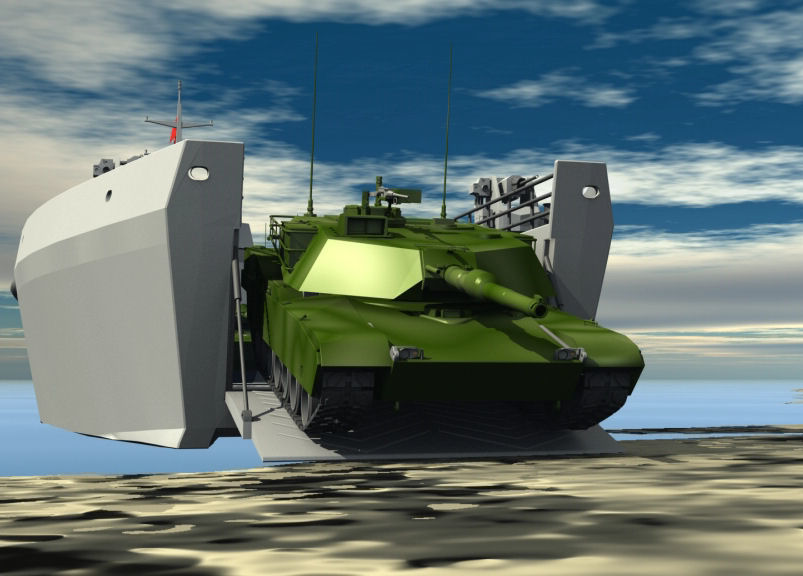

  • Electro - hydraulic front ramp
  • Flood and fire detection
  • Length overall 73.23 m. / 240 feet72.28 m79.85 m
    Length waterline 68.81 m. 72.95 m
    Max. Breadth 12.16 m. 13.15 m11.70 m
    Draft 1.68 m. 1.02 m Draft Fore (Tf)
    2.16 m Draft Aft (Ta)
    0.95 m forward
    2.35 m aft at full load
    Tonnage Displacement (full load) 805 tons Displacement: 875 tons1,155 Tons
    Max. speed : +20 knots > 20 knots18.0 Knots at full load
    20.0 Knots at Light ship
    Max. cont. speed +15 knots> 18 knots 16.5 Knots at full displacement
    Endurance +400 n.miles at +15 knots min 400 nautical miles @ 18 knots
    Main Propulsion
  • 2 x 2000 kW, medium speed diesels
  • 2 x shafts & FP Propellers
  • 2 X (2290 kW @ 2100 rpm diesel enginee + FPP) 2 X MTU 16V4000 M70 diesel engines,
    2 X ZF 7666 reverse reduction gear box,
    2 shafts, 2 fixed pitch propellers.

    Sensors & Weapons
  • Navigation Radar and Communication Systems
  • 2 x 25 mm Stabilized Platform Guns (STOP)
  • 2 x 12,7 mm Machine Guns
  • 2x12.7 mm heavy machine guns with fixed platform
  • 2x25 mm naval gun with stabilized platform
  • Rules and Regulations

    Ships are under contraction in accordance with Turkish Lloyd Military Ships Rules and will be classified by Turkish Lloyd.
    IMO/MARPOL 73/78,
    IMO/SOLAS,
    COLREG,
    Stability as per BV – 1033,
    NATO STANDARTS (STANAG, ANEP, etc.),
    ISO,
    TSE,
    TURKISH NAVY STANDARTS.

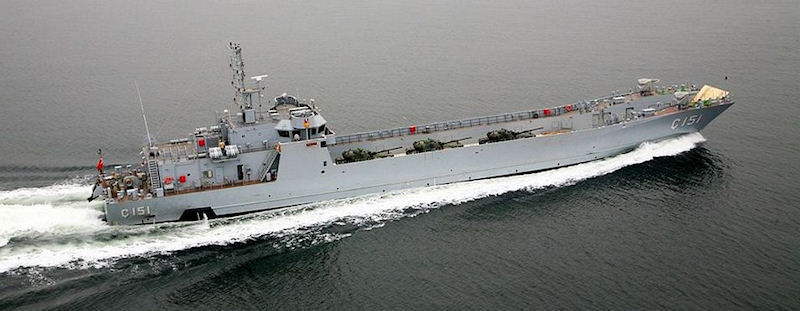

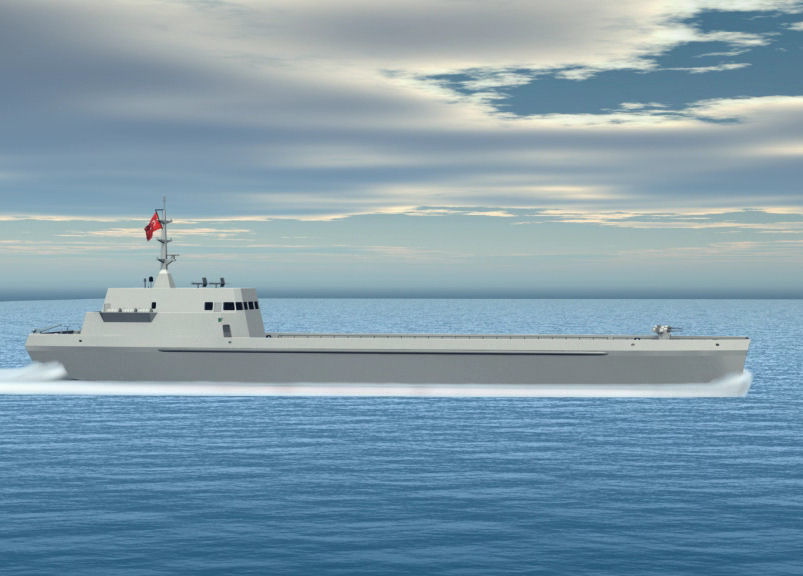

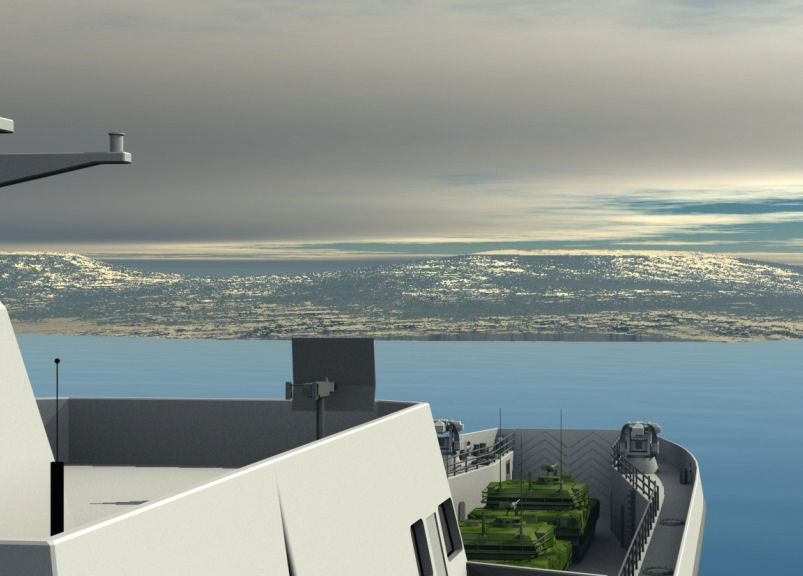

    TCG LCT Fast

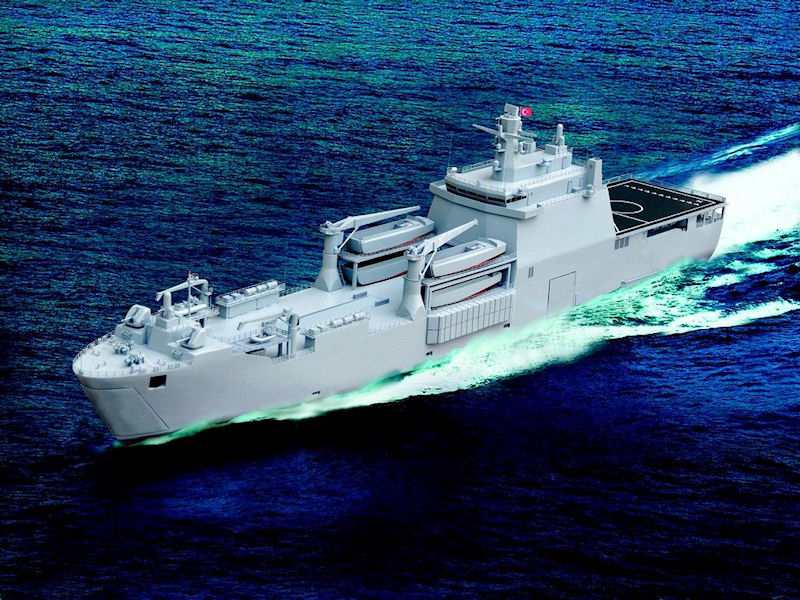

    TCG LCT Fast TCG LCT Fast TCG LCT Fast TCG LCT Fast TCG LCT Fast TCG LCT Fast TCG LCT Fast TCG LST TCG LCT TCG LCT
