ORP "Baltyk" Tanker project ZP-1200M

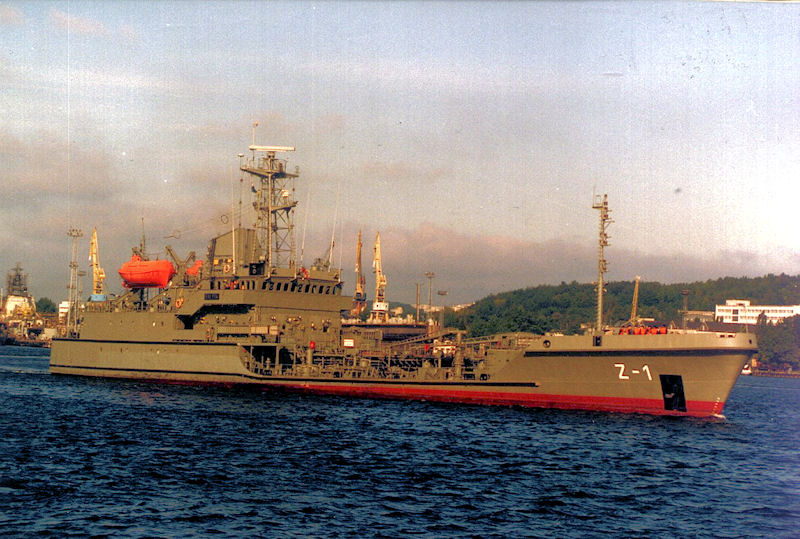

Fuel tanker (Baltyk class) built in 1987-91 in Naval Shipyard in Gdynia. Replenishes at sea navy ships with petrol, oil lubricants(POL), and transports stores, distributes POL and other goods. Lubricating/fuel tanker supply materials project ZP-1200M, is the largest unit of this class serving in the Navy. From the time of the incarnation to serve on a number of modernisation, he underwent 11.03.1991 which aimed to adapt it to work with all types of ships and squadrons of Polish NATO oil tanker "-1", as one of the first ships of the MW RP, was dedicated to the rapid reaction force.

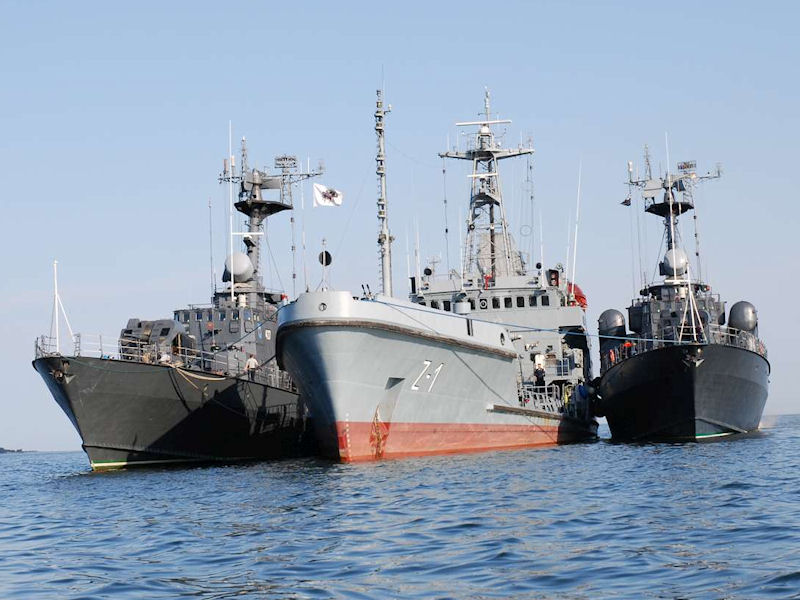

In the years 1998-2006 passes through successive stages of modernisation, to adapt its capacities to cooperate with national and NATO forces squadrons. The main aim was to bring her to a cooperation opportunities with other squadrons in underway replenishment method to enable the transfer of fuel, water and solid stocks weighing up to 250 kg at a speed of 12 knots. Application of the American-style of along-side under-way horizontal transmission of cargo, was also linked with the cross vertical by helicopters on-board ships, cooperating in order to extend the capacity of cargo handling in loads weighing more than 250 kg. Originally the platform project ZP-1200 did not stipulate the restock in this traverse method, but used a snake beam towed behind the ship for replenishment, the style originated by Germany in World War II.
Ship |
Commissioned |
ORP "Baltyk" |
11th of March 1991 |
Overall length | 84,7-84,75 meters | ||||||||||||
Overall width | 13,07-13,1 meters | ||||||||||||
The height of the lateral | 5,30 meters | ||||||||||||
Draft max | 4,80 meters | ||||||||||||
Max displacement | 2984 -3021.9 t | ||||||||||||
Load max | 1521,9 t | ||||||||||||
Max load capacity | 1341,2 t | ||||||||||||
Propulsion | 2 engines Cegielski-Sulzer 2010 horse power each; | ||||||||||||
Speed max | 15 in | ||||||||||||
Range / Endurance Economic | 12-2000 km | the food Item. | ok. 3000 kg | Item of drinking water | 15,75 m3 (odsalacz) TANKS: Volume (m3) | 1. Tank water No IX. | 133,20 2. Drinking water tank No IX. | 4 15,75 3. the expansion tank water cooling generator | 0,05 4. Sanitary sewage tank no VIII. | 3 13,70 5. Sanitary sewage tank no VIII. | 4 13,70 6. Water tank zezowej no VIII. | 1 11,30 7. Sanitary waste water tank | 6,20 |
