project 874 ORP "Arctowski" Hydrographic ships, (NATO: Modified Finik)

Hydrographic ships, 874 class (NATO: Modified Finik ), Built in Northern Shipyard, Gdansk. Hydrographic vessels of the Hevelius type are intended for conducting surveys as well as hydrographic, meteorological and oceanographic works. They carry out their tasks as part of navigational and hydrographic security of Navy operations and for the maritime economy and safety of navigation. They can also choose and choose floating flagging.

The hydrographic unit will be modernized, among others communication systems. The work will be carried out by PGZ Stocznia Wojenna. The contract for carrying out the work was signed 24 May 2019 by Sebastian Chwalek, vice-president of Polska Grupa Zbrojeniowa SA, Radoslaw Domagalski-Labedzki, member of the PGZ SA board, Konrad Konefal, president of PGZ Stocznia Wojennej sp. Z o. O. And dr Jaroslaw Wypijewski, commander of the Gdynia Harbor. The Polish army will pay PLN 50 million for repairs, renovation, maintenance and modernizationfor ORP "Arctowski".

A total of 420 days will cover renovation and modernization works at ORP "Arctowski". On the ship, in addition to maintenance of the superstructure and replacement of fragments of the hull plating (and its maintenance), will be replaced with new ones power, pump, compressor and hydraulic generators, and repaired - main and auxiliary equipment and mechanisms. At ORP "Arctowski" will also be improved, among others navigation systems (including a dashboard), communication and alarm systems, a television surveillance system as well as hydrographic equipment.

Ship

Commissioned

Flotilla

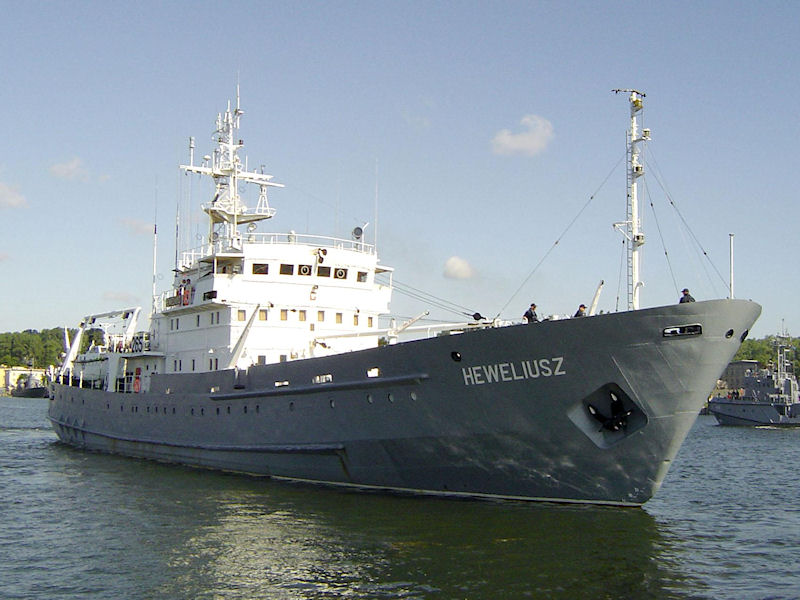

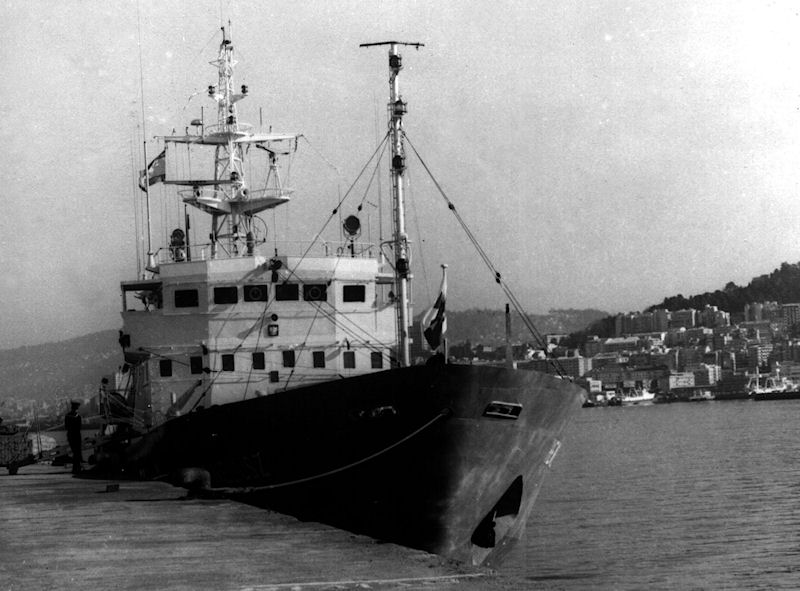

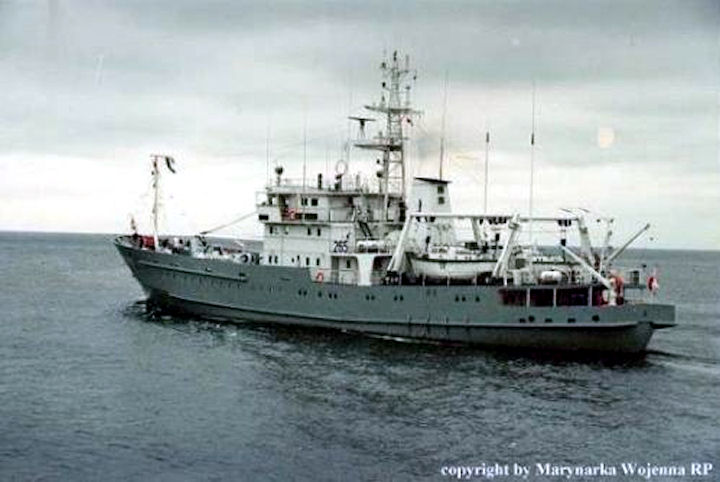

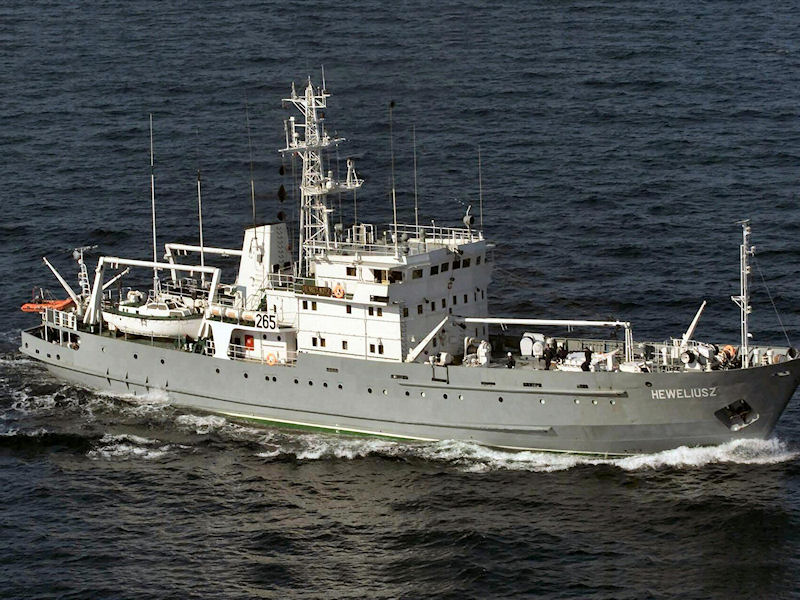

ORP "Heweliusz"

27th of November 1982 3rd Ships Flotilla
Gdynia

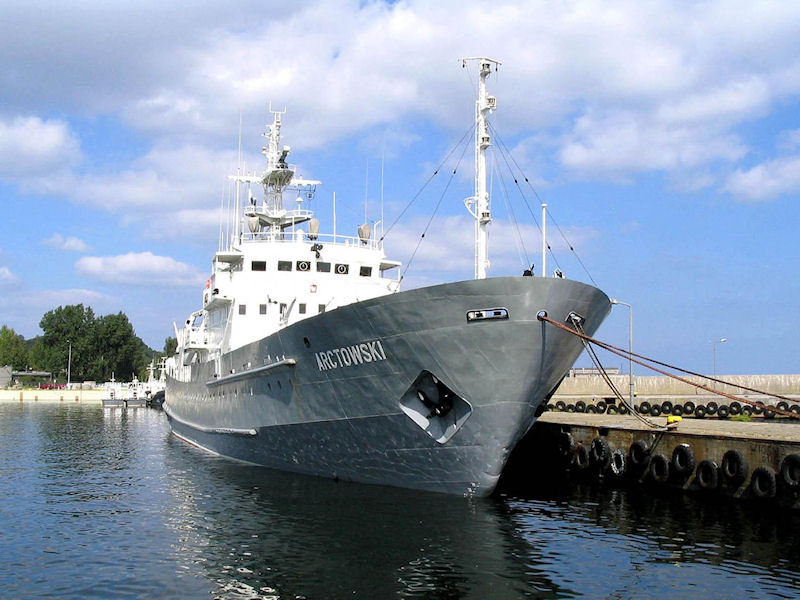

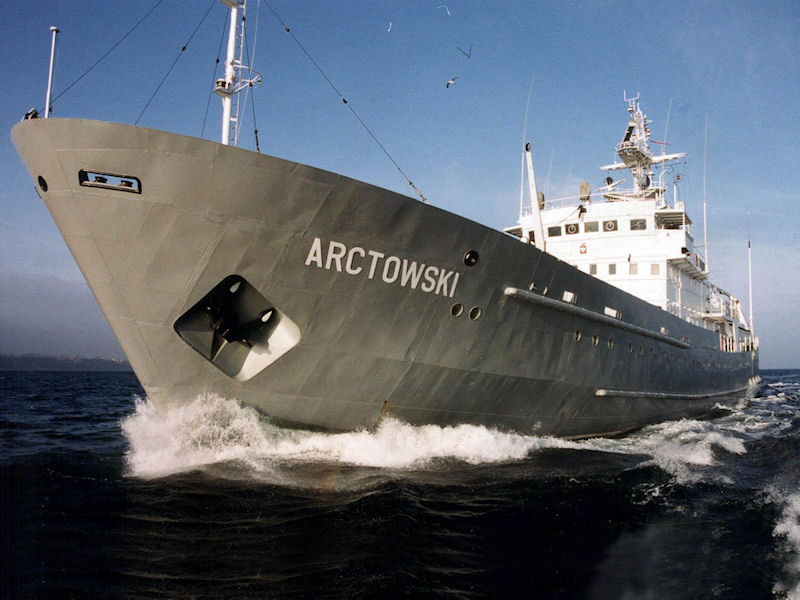

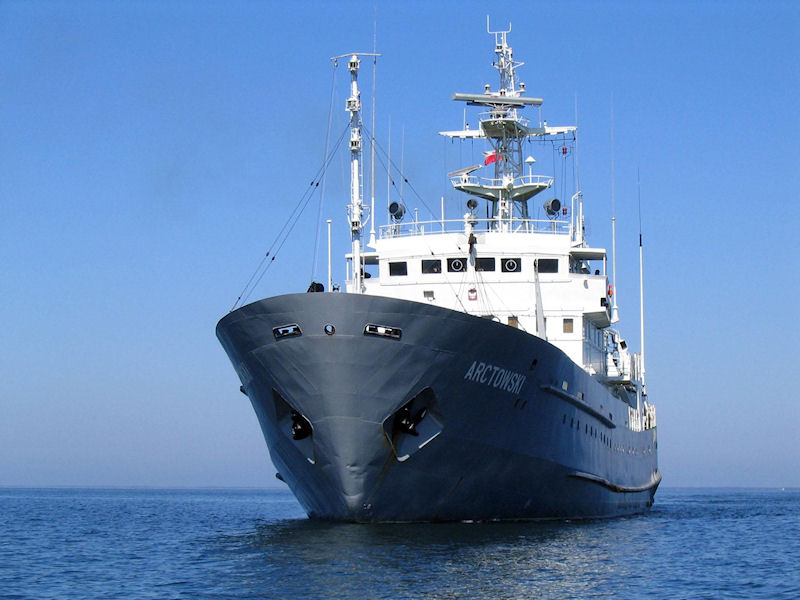

ORP "Arctowski"

27th of November 1982 3rd Ships Flotilla
Gdynia

Dimensions:

  • Length: 61,6 meters
  • Beam: 10,8 meters
  • Draugth: 3,3 meters

Displacement: 1218 tons;

Proplusion: 2 engines Cegielski-Sulzer 6AL25/30 diesels /1920 hp each/, 2 auxiliary motors /204 hp each/, 2 shafts, bow thruster; Max speed: 13 knots.

Main hydrographic equipment:

  • two-canal hydrographic echosound;
  • radionavigation systems;
  • Doppler log;
  • gather and analize data computer system co-operate with precise mensurity echosound, log and navigation systems;
  • sound speed measure.

ORP Heweliusz Hydrographic ships, 874 class (NATO: Modified Finik ) ORP Heweliusz Hydrographic ships, 874 class (NATO: Modified Finik ) ORP Heweliusz Hydrographic ships, 874 class (NATO: Modified Finik ) ORP Heweliusz Hydrographic ships, 874 class (NATO: Modified Finik ) ORP Arctowski Hydrographic ships, 874 class (NATO: Modified Finik ) ORP Arctowski Hydrographic ships, 874 class (NATO: Modified Finik ) ORP Arctowski Hydrographic ships, 874 class (NATO: Modified Finik )
