Rheinmetall Mission Master - autonomous unmanned ground vehicles

The Rheinmetall Mission Master is a unique family of Autonomous Unmanned Ground Vehicles (A-UGVs) designed to support military troops in dangerous missions, difficult terrain, and hostile weather conditions. On top of being valuable for reconnaissance and surveillance operations, the Mission Master platforms can be fitted for tactical overwatch, fire support, medical evacuation, CBRN detection, communication relay, and any other type of missions that may require the support of an A-UGV.

Each Mission Master vehicle is already networked with both Rheinmetall’s soldier system and the Rheinmetall Command and Control Software, which are compatible in any user’s battle management system. The Mission Master SP is a low-profile A-UGV engineered to provide assistance and reduce danger to dismounted soldiers in a wide range of missions, including high-risk situations. With its low-signature electric motor, the Mission Master SP excels in any scenario requiring stealth and agility.

This A-UGV is built for forward and last-mile resupply missions, silent watch operations, and carriage of light payloads, such as section sensors and weapon systems. Compact and highly mobile, the Mission Master SP can follow troops as a buddy, letting soldiers get closer to the enemy without being seen or heard.

The Mission Master XT is a rugged A-UGV designed to accompany troops in all kinds of missions, especially in challenging environments. With its total mobility in extreme terrain and advanced amphibious capabilities, the Mission Master XT reliably transports payloads of up to 1000 kg in even the most unforgiving conditions.

A reliable ally in the field, the Mission Master XT can travel 750 km without refuelling. In addition, an integrated battery facilitates silent watch operations for several hours at a time, extending this A-UGV’s capabilities even further. Robust enough to handle platoon or company sensors and weapon systems, the Mission Master XT lets units increase their range and firepower with heavier-calibre weapons and larger optics than they would otherwise be able to carry.

Extremely versatile, Mission Master A-UGVs can perform any mission profiles using a wide variety of modular payloads. Each module comes on a sturdy plate, preconfigured and ready to be bolted and plugged into the base platform within minutes. Any specific requirements can be fulfilled with Rheinmetall’s made-to-order A-UGV solution. By working closely with each customer, Rheinmetall guarantees the right solution for every need.

The Mission Master family owes its autonomous navigation and driving functions to the Rheinmetall PATH autonomy kit (A-kit). Proven, agnostic, trusted, and highly autonomous, PATH enables military vehicles to operate in unmanned mode, freeing up soldiers for other duties and keeping them out of danger. This A-kit provides a wide range of teleoperation options for Mission Master A-UGVs, including a tablet, smartwatch, soldier system, and single-hand controller.

These devices enable full access to advanced PATH features, such as follow-me, convoy, and autonomous navigation modes. Each control mode incorporates multiple layers of protection to ensure that the vehicle always operates safely. Moreover, Rheinmetall is committed to keeping a human in the loop in all kinetic operations, assuring that it is never a machine that decides when to open fire. PATH has an open, flexible architecture, meaning it will rapidly integrate first-hand innovations as artificial intelligence technologies evolve.

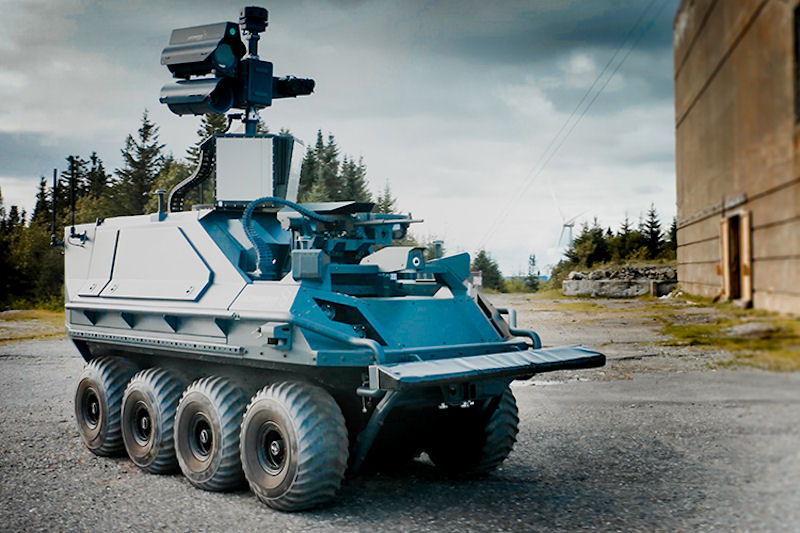

The Mission Master – Armed Reconnaissance is equipped with intelligence-gathering technology and a Rheinmetall Fieldranger remote-controlled weapon station (RCWS). Yhe new Armed Reconnaissance module is designed to collect tactical intelligence in the area of operations while providing frontline fire support whenever necessary.

Autonomous robotic vehicles offer countless advantages, including in a reconnaissance context. The Mission Master – Armed Reconnaissance is designed to execute high-risk scouting missions and deliver a real-time common operating picture without putting soldiers in danger. Since an enormous volume of data is gathered during missions of this type, Rheinmetall’s new A-UGV is equipped with resilient, highly reliable systems. Its payload consists of long-range EO/IR sensors, a surveillance radar, a 360° full ring camera, a laser rangefinder and a laser designator to identify potential threats. To further enhance the line of sight for the sensors while keeping a concealed posture, the reconnaissance payload is installed on a 3.5-metre expandable mast with a tilting mechanism. This convenient feature allows for increased and safe transportability on any platform, even a CH-53 or CH-47 Chinook.

The Armed Reconnaissance module also features radio-agnostic architecture, which means it can accommodate any type of radio that customers may need. The bidirectional communication system permits clear exchanges with HQ and other A-UGVs, giving commanders greater situational awareness. When engaging enemy forces, the Rheinmetall Fieldranger Light 7.62 mm RCWS will provide much more firepower than the usual man-carried section weapon. Engagement of targets is remote-controlled, never autonomous.

The new Armed Reconnaissance module is the latest addition to the modular Mission Master family, with all-terrain manoeuvrability and ability to keep troops safe when deployed in harm’s way. The Cargo module can carry over half a ton of supplies, relieving the burden on troops keeping them fresh. The Fire Support modules boost the combat power of dismounted units, while the Rescue module autonomously evacuates casualties and carries specialized equipment for medical interventions in the field. In addition, every single module is equipped with a Blue Force tracking system that is fully compatible with NATO standards.

The addition of the Armed Reconnaissance to the Mission Master suite turns Rheinmetall’s groundbreaking Wolf Pack concept into a reality. The Wolf Pack consists of multiple Mission Master vehicles efficiently operating as a team in order to accomplish missions of all types, including zone surveillance, reconnaissance, target position transfer and slew-to-cue. All units communicate with each other and use artificial intelligence to maintain the total situational awareness necessary for carrying out their missions.

A genuine force multiplier, the entire Wolf Pack can be managed by a single operator from anywhere using the LTE network, SATCOM, or military cloud. It is an intuitive concept that enables one operator – rather than multiple uncoordinated operators – to focus on the overall mission rather than managing all the tasks of each A-UGV. As Rheinmetall continues to develop new modules for the Mission Master family, the Wolf Pack’s range of capabilities will only increase, significantly improving the military’s ability to achieve overmatch against increasingly capable enemies.
