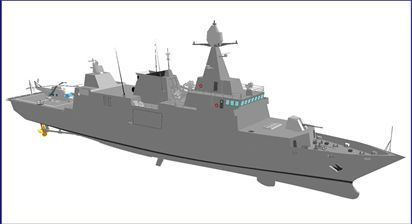

NEWCON Multipurpose Corvette
Vessel size, high performance, transport and support capability are optimized to play different roles such as: escort, support, relief, interdiction and patrol operations. Such ships are highly handy, have excellent nautical qualities and seaworthiness, long range and are able to operate in open seas missions and to manage protracted helo operations. The vessels are built following stealth principles and are able to accommodate different Combat System versions.
| Length overall | 104.00 | m |
| Breadth | 13.90 | m |
| Draft | 3.80 | m |
| Displacement | abt. 2,400 | tonnes |
| Speed Max/Cruise/Economics | 30/18/14 | knots |
| Range at 14 kts | 5000 | NM |
| Endurance | >12 | days |
| Crew | 90 + 15 | |
| Helicopter | 10 tons | with hangar |
| Propulsion | CODAD-4 | MTU 20 V 1163 |
| Diesel Generators | 4 x 600 | kW |
| COMBAT SYSTEM CUSTOMIZED, ACCORDING TO SHIPS MISSION : |
||
| SURVEILLANCE S/S | ||
| C, X Band Radars | ||
| Optronic | ||
| EWS | ||
| Sonar | ||
| C&C | ||
| Open Architecture | ||
| Modular, based on reconfigurable MFCs | ||
| WEAPON S/S | ||
| Radar/Optronic FCS | ||
| Medium /small Caliber guns | ||
| SAM, SSM, | ||
| ECM | ||
| Decoy Launchers | ||
| INTEGRATED COMMUNICATION SYSTEM | ||
| Internal | ||
| External ( SAT, Link ) | ||
| INTEGRATED NAVITATION SYSTEM | ||
|
